> Home > Equipment > Pressure Pots >1201-1215




Manual Hand Held Pinch Tube Dispense Valve Tank System ...

Hand operated dispense valve and pressure pot for applying controlled deposits of most low to medium viscosity adhesives and liquids. Uses replaceable low cost pinch tubes to eliminate cleanup and maintenance. Operates by hand with direct fluid feed from a pressure pot, cartridge or syringe barrel.

TS1201 Hand Lever Pinch Valve Dispensers

Cyanoacrylate adhesive dispenser designed to accept a 500 gram bottle (1 lb) of instant adhesive. There is no pouring needed (ie: you drop your bottle of glue right into the dip-tube tank). Very little clean up is involved with this system and you do not smell the strong fumes of the glue as this is a contained system.

The valve is designed to dispense thin and medium cyanoacrylates with controlled deposits of glue, with no dripping. The system has two ways to control the deposit: - needle tip size and tank pressure. The pressure on the tank can be adjusted and there is a 0-60 psi regulator gauge.

Buying a CA adhesive in a 500g sized bottle can be cost effective. Applying adhesives by hand can be slow and often too much is applied to each part which can create mess, waste and possible damage to products. Or too little adhesive can be applied which creates a weak bond and product failure.

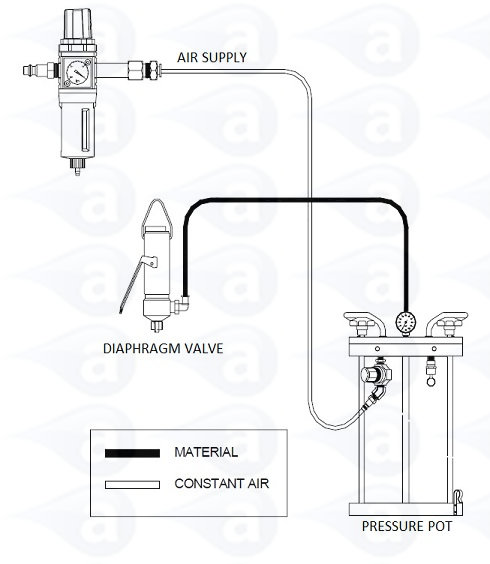

With this system, the adhesive bottle is placed directly inside the compact tank unit and fed under very low air pressure down flexible feed tubing to the hand held pinch tube valve. Select number of users and then pressure pot tank size. Liquid manifolds are included pre-set as well as needle tips, caps all suitable for use with CA's and many other liquids.

All products shipped are in sealed boxes or packs that include label with batch codes.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Pressure Pot Hand Lever Dispenser

Excludes Carriage.
Lead Time:
48 Hours

Summary: Dispensing system with 500 gram size pressure pot feeding fluid to a hand lever valve. Select number of valves being fed by the pressure pot.

Item Users Price GBP Add
1201-1215 1   each
1201-1215-2 2   each
1201-1215-3 3   each
1201-1215-4 4   each

Specifications:

Wetted Materials: 303 SS, Anod Aluminium, Delrin
Hand Lever Valve Size: 127mm L x 34mm W
Weight: 36 Gram
Fluid Viscosity Range: 1 to 45,000 CPS

Valve Flow Rate: 2.04 Litres/ Minute (water)
Maximum Fluid Pressure: 60 PSI (6 Bar)
Material Inlet Connection: Female Luer Lock
Material Outlet Connection: Male Luer Lock
Flow Pattern: Straight

Valve Body Colour: Black
Pressure Pot Dims: 115mm W x 180mm H
Pot Chamber Dims: 102mm W x 152mm H
Pressure Pot Weight: 1.5 kg


Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates. The items listed on this page are held in stock.

Typical Applications:- Beads of Cyanoacrylates, Beads of solvents, Beads of epoxies, Beads of UV cure, Beads of PVA glues, Potting of components, Deposits of liquid fluxes, Beads of threadlockers, General adhesive application.
.
