Home > Syringes > Pistons > 435LL-1

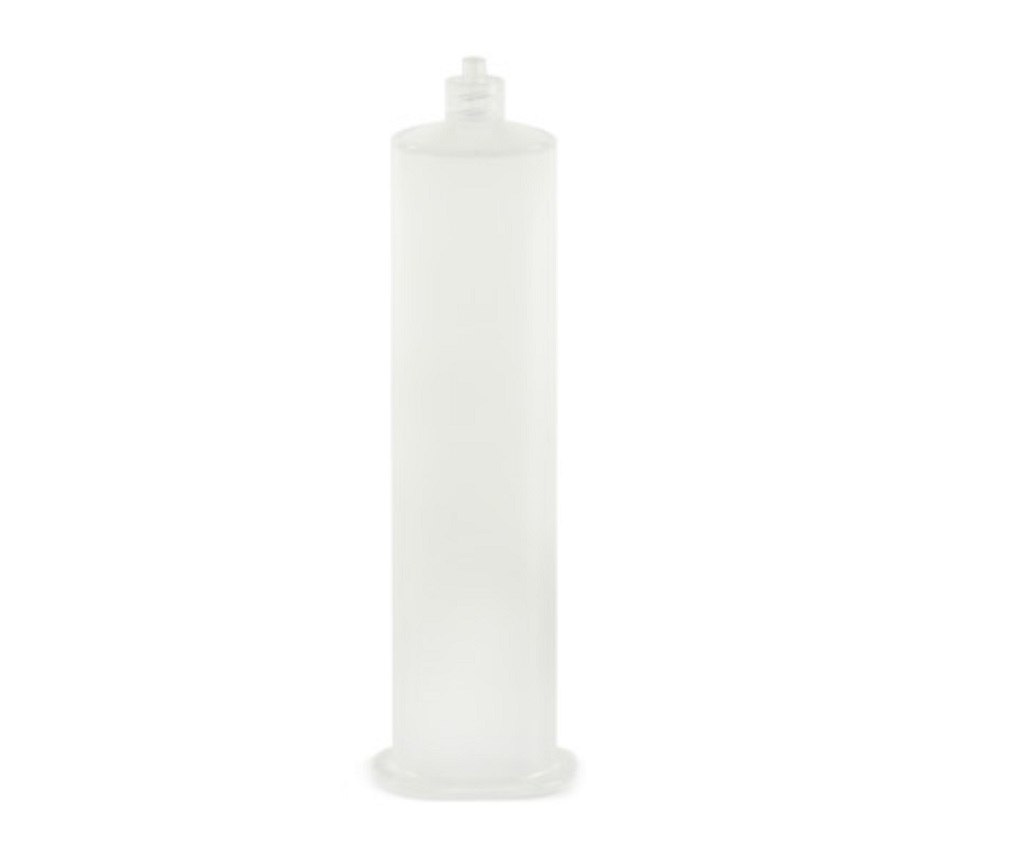

35cc Size Syringe Barrel ...

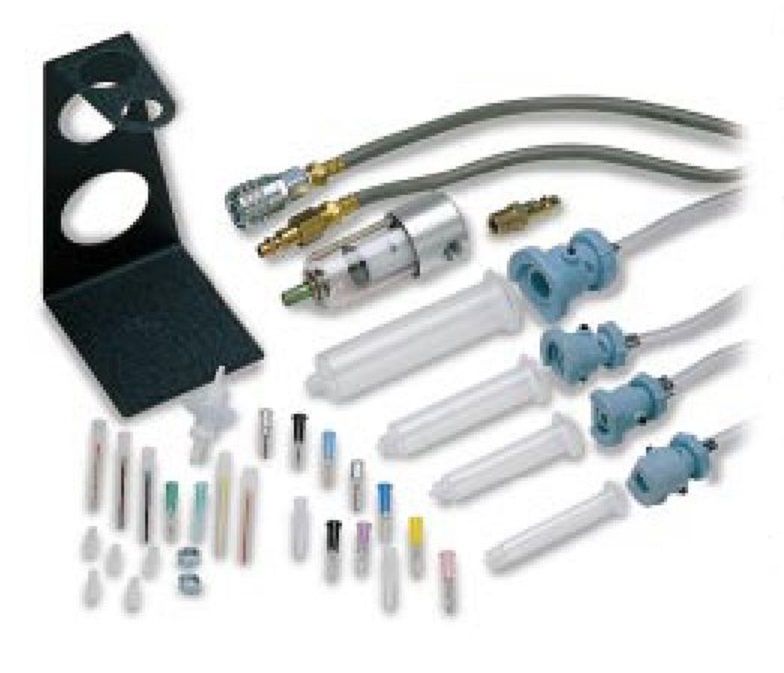

400 series syringe barrels are cost effective components available in sizes from 1cc to 60cc. Use with air powered dispensers or these barrels work with the pistons and rods to provide a full manual syringe assembly. Our manual syringes are also available pre-assembled in sealed packs.


403LL-1 3cc syringe barrel luer lock adhesive dispensing


Industrial grade 6cc/ 6ml size syringe barrels. Natural (clear) for use with all adhesives. High density polypropylene safe for use up to 100 psi.  Precision flanges for safe attachment to 400 series receiver assembly.  Luer lock for twist on attachment of needle tips.

Use with 400 series wiper pistons. These syringes are industry compliant low friction high density polypropylene. Supplied in a sealed pack of 50 syringe barrels.  These items ship from our UK warehouse direct from stock.

All products shipped are in sealed boxes and include label with batch codes.


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Specifications:

Materials: Polypropylene
Colour: Clear (Natural)
Length: 116.33 mm - 4.58 Inch
Inner Diameter: 23.88 mm - 0.94 Inch
Outer Diameter
: 26.16 mm - 1.03 Inch
Maximum Pressure: 100 PSI (6.89 Bar)

Flow Pattern: Straight
Description: Syringe Barrel
Features: Silicone-Free, Industrial Grade
Pack Sizes: 50


Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications:- 400 series syringe pistons are designed for manually with an adapter and plunger rod. They are thick walled with wide flanges and so designed for high pressures. Use these pistons with pastes, adhesives, solvents, epoxies, RTVs, silicones, PVA, inks and gels.

More Info Part No.

Material

Type Colour

Pack

Price GBP Add
435LL-1PK 35cc Syringe Barrel Techcon 435LL-1PK
35cc Syringe Barrel
Polypro Clear 24 Hours 50   pack
435LL-1PK 35cc Syringe Barrel Techcon 435LL-1
35cc Syringe Barrel
Polypro Clear 24 Hours 20   pack

435L-2 35cc Black Rubber Syringe Piston Stopper Techcon 435L-2
35cc Rubber Piston
Manual Use Only
Rubber Black 24 Hours 50   pack
435L-2-LUB 35cc Black Rubber Syringe Piston Stopper Techcon 435L-2-LUB
35cc Rubber Piston
Manual Use Only
Rubber Black 24 Hours 50   pack
435L-7 35cc Black Plastic Syringe Piston Stopper Techcon 435L-7
35cc Plastic Piston
Manual Use Only
Polyethylene Black 24 Hours 50   pack
435L-8 35cc Black Rubber Syringe Piston Stopper Techcon 435L-8
35cc Rubber Piston
Air Use Only
Rubber Black 24 Hours 50   pack
435L-8 35cc Black Rubber Syringe Piston Stopper Techcon 435L-8-LUB
35cc Rubber Piston
Air Use Only
Rubber Black 24 Hours 50   pack
435L-9 35cc Plastic Syringe Piston Stopper Techcon 435L-9
35cc Plastic Piston
Air Use Only
Polyethylene White 24 Hours 50   pack
435L-4 35cc Manual Plunger Rod Adhesive Dispensing 435L-4
35cc Plunger Rod
Polyethylene Grey 24 Hours 50   pack
MS435LL-1 35cc Manual Syringe Assembly Techcon MS435LL-1
35cc Syringe Assembly
Polypro Clear 24 Hours 50   pack
900-950-3 35cc Adapter Receiver Assembly Techcon 900-950-3
35cc Adapter Assembly
3 ft Air Hose
Polypro Blue 24 Hours 1   each
900-950-6 35cc Adapter Receiver Assembly Techcon 900-950-6
35cc Adapter Assembly
6 ft Air Hose
Polypro Blue 24 Hours 1   each
900-950-R 35cc Adapter Receiver Assembly Techcon 900-950-R
35cc Adapter Head
Head Only
Polypro Blue 24 Hours 1   each
