Home > Components > Twin Cartridges > 452013
50ml 2:1 Ratio Dual Cartridge A-System ...
High density dual component dispense cartridges for two part adhesives, epoxies, silicones and other fluids. All sets are supplied with matching pistons and a tip cap ready for filling and dispensing. Use with our range of manual and pneumatic cartridges guns. Industrial grade and silicone free.
452013 Dual Cartridge 2:1 Ratio Adhesive Dispensing

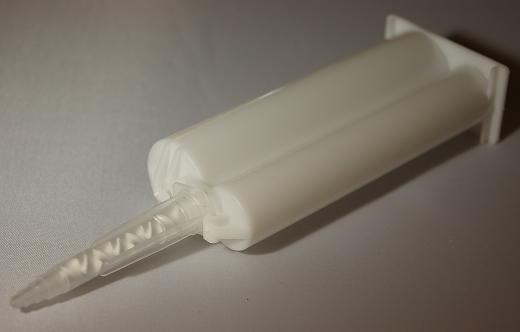

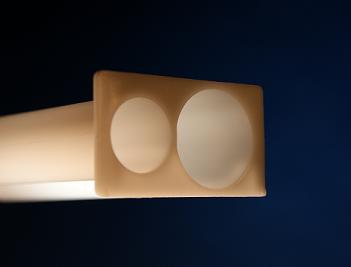

The dual system 50ml size with 2:1 mix ratio by volume. Materials are stored in the two chambers of the dual cartridge system and are then dispensed simultaneously into the static mixer, where dynamic mixing takes place. Use these products with 2-part epoxies, resins, sealants, silcones & polyurethanes.

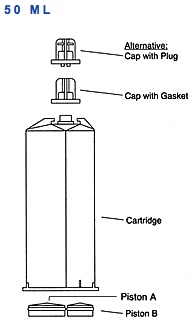

This cartridge is manufactured in polypro. The kits come with the following parts:

- 50 x Cartridge 2:1 with capacity of 50ml max.
- 50 x Vented pistons with cap seal (large).
- 50 x Vented pistons with cap seal (small).
- 50 x Dust tip cap

The static mixer nozzles are available in different diameters with different volumes and a variety of mixing elements. One of the main benefits of the system is that not all of the contents of the cartridge have to be mixed at a time. When use has stopped, the nozzle is removed for disposal and the cartridge can be closed and stored for further use, without the material curing.

Standard air-bleed pistons are shipped with this cartridge system allowing for use with most two component materials. These dual cartridge products are compatible with either manual or pneumatic dual cartridge guns.

All products shipped are in sealed boxes or packs that include label with batch codes.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

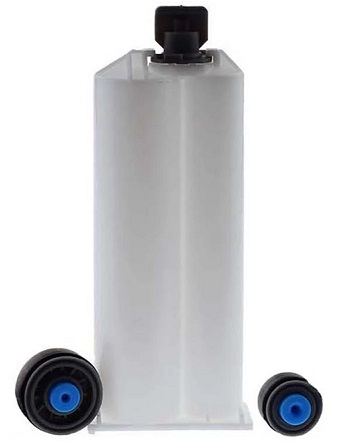

A-System Dual Cartridge 50ml
Excludes carriage.
Lead Time:
Ships 24 Hours
Summary: White polypropylene plastic body. Air bleed wiper pistons. Supplied with pistons and a nozzle tip cap. Nozzle attachment is bayonet twist-on. Use (MA), (MAQ) or (MAHX) series mixer nozzles below with these cartridges.
Code Ratio Price GBP Add
452013 2:1   pack 50
452013-500 2:1   pack 500
Material: Polypropylene Barrel
Body Colour: White
Nozzle Attachment: Bayonet
Mix Ratio: 2:1 By Volume
Maximum Pressure: 100 PSI
Length: 104mm (not including tip cap)

Flow Pattern: Straight
Description: Dual Cartridge
Features: Silicone-Free/ Industrial Grade

Pack Sizes: 50 or 500
Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications:- Deposits of two-part resins, epoxies, polyurethanes, silicones, adhesives and other mixed assembly fluids.

Mixer Cartridges

Dual ratio cartridge static mixer nozzle
Bayonet Mixer Nozzle Adhesive Dispensing Sulzer Mixpac

50ml 2:1 Ratio Dual Cartridge Accessories


When selecting a mixer nozzle, consider the viscosity of the 2-part adhesive, epoxy, sealant or silicone. For watery liquids, use a small diameter mixer. For pastes or gels, use a larger diameter mixer. And for materials that require little mixing, choose a mixer with less elements. For materials that require a lot of mixing, choose more elements on your mixer which will be longer. All mixers below work with 2:1 mix ratios.

More Info Part No. Dia. Elements Length


Price GBP Add
Static Mixer Nozzle Adhesive Dispensing MA3.0-07S
Mix Nozzle Round
3mm 7 33mm 100   pack
Static Mixer Nozzle Adhesive Dispensing MA3.0-13S
Mix Nozzle Round
3mm 13 51mm 100   pack
Static Mixer Nozzle Adhesive Dispensing MA3.0-17S
Mix Nozzle Round
3mm 17 63mm 100   pack
Static Mixer Nozzle Adhesive Dispensing MA4.0-13S
Mix Nozzle Round
4mm 13 66mm 100   pack
Static Mixer Nozzle Adhesive Dispensing MA4.0-17S
Mix Nozzle Round
4mm 17 82mm 100   pack
Static Mixer Nozzle Adhesive Dispensing MA5.4-13S
Mix Nozzle Round
5.4mm 13 85mm 100   pack
Static Mixer Nozzle Adhesive Dispensing MAQ05-16L
Mix Nozzle Square
5.3mm 16 83mm 100   pack
Static Mixer Nozzle Adhesive Dispensing MAQ05-24L
Mix Nozzle Square
5.3mm 24 115mm 100   pack
Static Mixer Nozzle Adhesive Dispensing MA6.3-12S
Mix Nozzle Round
6.3mm 12 97mm 100   pack
Static Mixer Nozzle Adhesive Dispensing MA6.3-17S
Mix Nozzle Round
6.3mm 17 128mm 100   pack
Static Mixer Nozzle Adhesive Dispensing MA6.3-21S
Mix Nozzle Round
6.3mm 21 153mm 100   pack
Static Mixer Nozzle Adhesive Dispensing MA6.3-21L
Mix Nozzle Round
6.3mm 21 151mm 100   pack
Manual Dual Cartridge Gun Adhesive Dispensing ABM-25M1
Manual Gun
1:1 /2:1 Ratio n/a n/a 1   each
EDS408M 50ml Dual Pneumatic Gun EDS408M
Pneumatic Gun
1:1/ 2:1 Ratio n/a n/a 1   each
