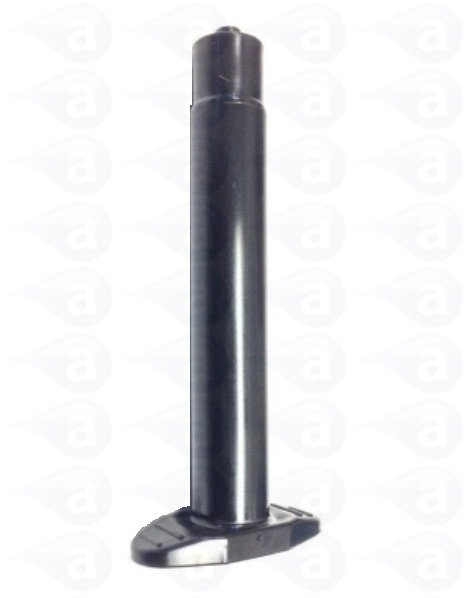

3cc Size Industrial Black Syringe Barrel Luer Lock
7030LL1BPK 3cc Black Syringe Barrel Adhesive Dispensing

High performance syringe barrels that are manufactured to the very highest possible quality delivering exceptional performance and consistency. From moulding to packaging, barrels are guaranteed to be free of silicone contaminants and imperfections.

Premier dispensing syringe barrels are silicone and chloride- free and designed to work with industry standard equipment including syringe guns and air-powered dispensers. The syringe barrels are made from low friction polypropylene to ensure accuracy, repeatability and productivity. Features a double Helix Luer lock for secure dispense tip attachment.

Available in 3 colours: Natural for most generic applications, Amber provides protection of UV/visible light block (up to 520nm), but with the ability to see material inside the syringe barrel, and Black for total light block. Maximum operating pressure 100 psi is (6.9bar). Supplied in packs of 50, 500 or bulk packs of 1000. Pistons available for all barrel sizes as well as end caps and adapter assemblies.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Product Details

Part ID: 7030LL1BPK or (903-B)

Adhesive dispensing syringe barrels

Material: Polypropylene
Colour: Black (UV block)
Capacity: 3cc (3ml)
Length: 2.96" - 75.18mm
OD: 0.45" - 11.41mm
ID: 0.38" - 9.58mm
Details: Industrial Grade Safe, Silicone Free
Lead Time: Ships within 24 Hours

Size Pack

Part Code

Price Add
3cc 50 7030LL1BPK   pack
3cc 500 7030LL1B-500   pack
3cc 1000 7030LL1B-1000   pack

Syringe Barrel Options

  Silicone and chloride free plastics
  Industrial grade safe to 100 psi
  Resistant to aggressive fluids and solvents
  Wide flanges for secure attachment
  Luer lock tip attachment
  Supplied in sealed packaging



Pistons


End Caps

Adapters
Copyright  2008 Adhesive Dispensing Ltd. All rights reserved.
Tip Caps

Dispensing tips
Tips
Syringe barrels
Barrels
Cartridge reservoirs
Cartridges
Adhesive dispensers
Dispensers


Air-Powered Dispensers * Industrial Dispensing Components * Precision Valve Systems * XYZ Bench Robots

Adhesives * Packaged Components * Techkits * RatioPacks * Hingepacks * Syringe Barrels * Cartridges * Nozzles

|  Privacy   |   Terms   |  Accounts  |

All orders online are encrypted for safety and security.  Please read ourr privacy agreement for details.  We also process phone or fax payments by credit and debit card.  Please contact our accounts department if you would like to open a credit account with us..

Our new web shop is available to order these products in a number of different currencies. Please visitOur new web shop is available to order these products in a number of different currencies. Please visit www.adhesivedispensing.co.uk for more details.

Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, Adhesive Dispensing Ltd. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.



Copyright 2005 - 2017 Adhesive Dispensing Ltd. All rights reserved.




  Support

  Literature
  Syringe Barrels Brochure
  Dispense Tips Brochure
  Syringe Guns Datasheet
  Full Catalogue

  Information
  Important Safety Information

  Contact Us
  Equipment Recommendations
  Request a Quote
  Technical Support
  Applicator Assist

  Shipment of this product


Items are shipped in the UK by a courier on a next day tracked and insured service for all items that are available from stock. Items on a lead time will be shipped as soon as they are available.



  Typical Uses


Syringe barrels are designed for use with pneumatic dispensing equipment or syringe guns. They are thick walled with wide flanges and so designed for high pressures. The internal bore is zero draft meaning there is no taper. This ensures the wiper piston inside moves down without restriction to improve dispense performance. Use these barrels with pastes, adhesives, solvents, epoxies, RTVs, silicones, PVAs, inks and gels. This range have luer lock ends for twist on tip attachment.
