This product is certified silicone free
This product is available from stock
This product is safe for industrial use

We recommend the use of our 30ml size manual Syringe Gun to make controlled deposits and beads.

For more accuracy, we recommend using the TS250 digital timed syringe dispenser that is supplied ready for use with this product. The TS250 is a pneumatic bench top dispenser with timer control to make repeat deposits of this material or continuous beads. It features a shot counter to show number of deposits made and an LCD timer display. Supplied with a foot pedal, power cord, airline kit, tip kit and user guide.


Protected by Copyscape

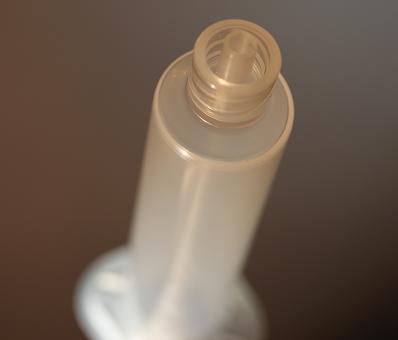

High Density 30cc Clear
Syringe Barrel Luer Lock
7300LL1NPK 30cc Syringe Barrel Adhesive Dispensing Techcon

Industrial grade syringe barrels are manufactured to the very highest possible quality for delivering exceptional dispensing performance and consistency. From moulding to packaging, barrels are guaranteed to be free of silicone contaminants and imperfections.

Use these barrels with pneumatic dispensers or dispensing guns. The 700 Series Premier dispensing syringe barrels are silicone and chloride- free and designed to work with industry standard  dispensing equipment - either manually or on a pneumatic dispenser.

The syringe barrels are made from low friction polypropylene to ensure accuracy, repeatability and productivity. Features a double Helix Luer lock for secure dispense tip attachment. Natural (clear) for most generic applications. Maximum operating pressure is 100 psi (6.9bar). Supplied in sealed packs of 20, 50 or 100 and in bulk packs of 500 or 1000. Pistons available for all barrel sizes as well as end caps and adapter assemblies.

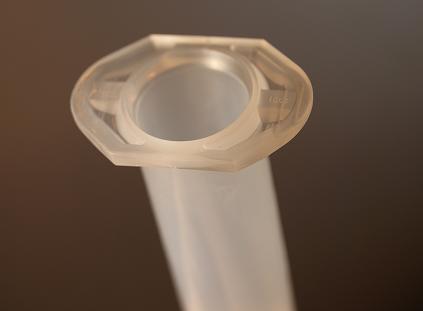

Barrels are attached to the adapter assembly air hose or syringe gun using wide flanges. This ensures the barrel does not break free or leak air at pressures up to 100 psi. Barrel walls are straight so wiper pistons do not stick.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Suitable for...
Make dots of adhesives Adhesives
Make beads of adhesives Silicones
Potting of components Epoxies
Bonding of components Primers
Sealing of components Solvents
Dispense lubricants and greases Lubricants
Gaskets
SMT Adhesives
Material

Volume

Length

OD

ID

Colour


Polypro

30cc (30ml)

4.66" - 118.36mm

0.99" - 25.27mm 0.89" - 22.63mm Natural

  Syringe Product Pages

Adhesive Dispensing 30cc glue application syringe tip

    Silicone and chloride free plastics
  Industrial grade safe to 100 psi
  Resistant to aggressive fluids and solvents
  Wide flanges for secure air attachment

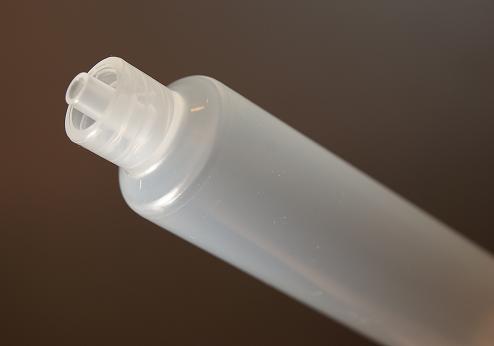

  Luer lock secure tip attachment
  Zero draft inner walls for piston movement

Pack

Part Number

Lead Time

Price

Add

20 7300LL1N-20 (930-N) 24 Hours   pack

50 7300LL1NPK (930-N) 24 Hours   pack

100 7300LL1N-100 (930-N) 24 Hours   pack

500 7300LL1N-500 (930-N) 24 Hours   pack

1000 7300LL1N-1000 (930-N) 24 Hours   pack




Pistons


End Caps

Adapters
Copyright  2008 Adhesive Dispensing Ltd. All rights reserved.
Tip Caps
Dispensing tips
Tips
Syringe barrels
Barrels
Cartridge reservoirs
Cartridges
Adhesive dispensers
Dispensers


Air-Powered Dispensers * Industrial Dispensing Components * Precision Valve Systems * Bench Robots

Adhesives * Packaged Components * Techkits * RatioPacks * Hingepacks * Syringe Barrels * Cartridges * Nozzles



  COMPANY INFORMATION SUPPORT CUSTOMER SERVICE
  About Us Solutions Carriage
  Shipping & Returns FAQ's Terms & Conditions
  Privacy Site Map Help
  Contact Us Assist Accounts



All orders online are encrypted for safety and security.  Please read ourr privacy agreement for details.  We also process phone or fax payments by credit and debit card.  Please contact our accounts department if you would like to open a credit account with us..

Our new web shop is available to order these products in a number of different currencies. Please visitOur new web shop is available to order these products in a number of different currencies. Please visit www.adhesivedispensing.co.uk for more details.

Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, Adhesive Dispensing Ltd. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.



Copyright   2005 - 2017 Adhesive Dispensing Ltd. All rights reserved.


  Support


  Literature
  Syringe Barrels Brochure
  Dispense Tips Brochure
  Dispense Guns Brochure
  Full Catalogue

  Information
  Important Safety Information

  Contact Us
  Equipment Recommendations
  Request a Quote
  Technical Support
  Applicator Assist

  Shipment ...


Items are shipped in the UK by a courier on a next day tracked and insured service for all items that are available from stock. Items on a lead time will be shipped as soon as they are available.



  Barrels ...


Barrels are shipped with every new dispenser and syringe gun that we supply. Barrels are moulded in high density plastics and have much thicker walls than a medical grade syringe. The internal bore has no taper and this ensures the wiper piston moves consistently down the barrel without restriction. The wide flanges at the top are for quick attachment to the air adapter assembly (to a dispenser) or to a manual syringe gun. This design ensures syringe barrels do not come loose or break under air pressures up to 100 psi. The luer lock tip attachment provides secure dispensing under high pressure.



  Pistons ...


Pistons have blades to wipe the adhesive, paste or liquid from inside the syringe barrel as they move down. The blades also act to stop liquids from going past them as they dispense. Once a syringe has liquid inside, insert the piston and push down on one side. This will allow air to escape and ensures the piston sits directly on the fluid without an air gap. When bottom filling using a barrel filler, the piston is pushed down and moves up as the liquid is fed into the syringe barrel. Pistons can provide a barrier seal for liquids placed inside. But for more protection when dispensing watery liquids and cyanoacrylate adhesives, use our filter trap in the airline adapter assembly to your syringe dispenser.
