Recirculatory Fume Filter Cabinet

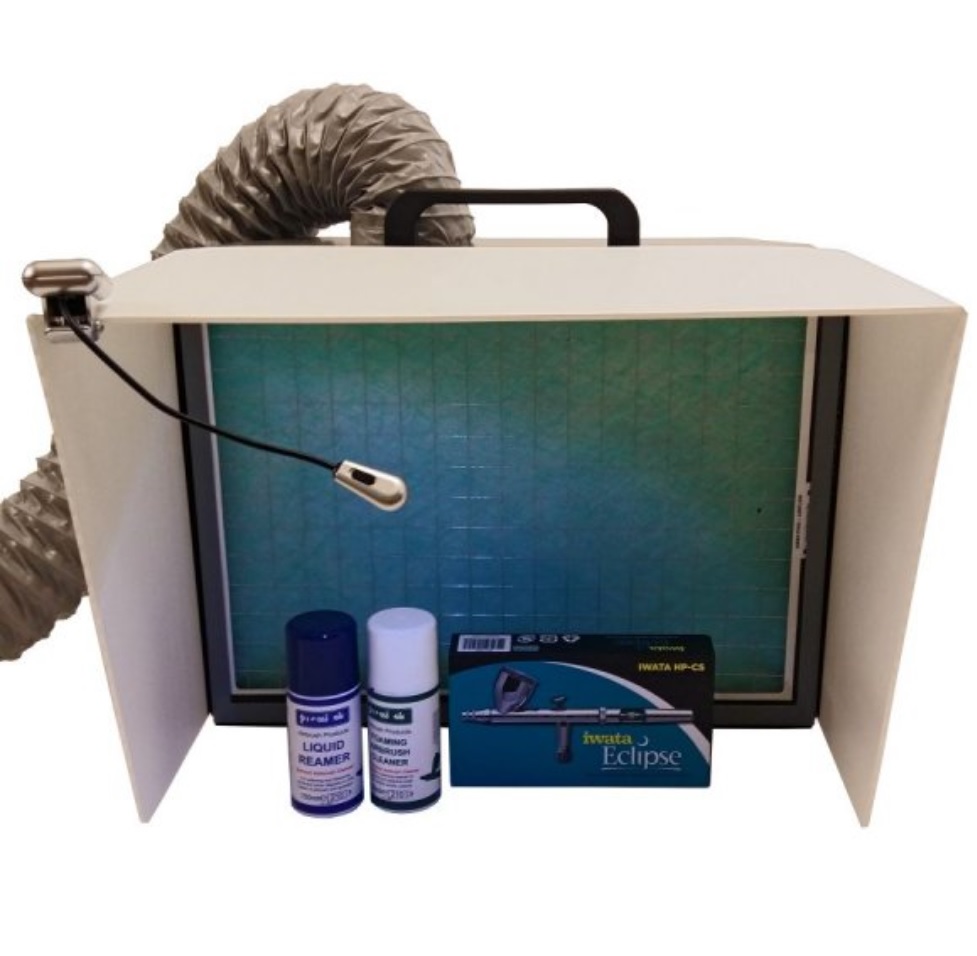

A300S-D Fume Extraction System Adhesive Dispensing

High performance systems for the removal of adhesive and solvent fumes from the work bench. Versatile products provide a safe and clean working environment when handling/ dispensing liquids with odours. Supplied complete and ready to use out of the box.


A3 size extraction unit for aerosol adhesives, lacquers, solvents, paints, solders, particles and dust. Aerosol paints, lacquers, adhesives (glue booth for Spray Mount) and airbrush overspray. Solder fume, general solvent vapours and gases extracted to atmosphere. Filtration of grinding dusts, general particulates and powders etc. Features fan with particle and carbon filters. Full extraction with all odours and gases extracted via flexi-duct to atmosphere..

Applications include the filtration of fume, vapour and particulates emanating from monomers, adhesives, hazardous powders/particulates, conformal coatings, resins, sealants, solders, light grinding particles and dusts, organic solvents etc.

Description

Steel construction finished in dove grey - plastic replaceable spray/fume shield - particulate filter - centrifugal blower, external rotor motor type brushless, UL, VDE and CSA approved - sealed electrical wiring and switch, downstream of filter. Flexi-duct 2 metres x 100mm dia. - carry handle. *110V 60Hz version available if required.

Operation

All WS filtration systems and extraction systems carry a lifetime warranty, are quiet in operation and can be assembled in seconds. Place onto a desk, bench or trolley and then simply plug in and switch on.

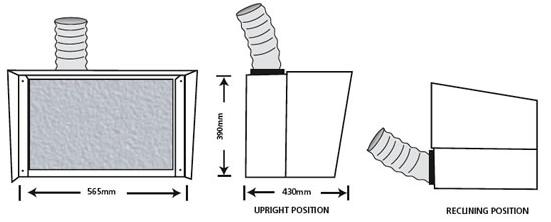

The Flexi-duct can be fixed to a standard domestic vent or simply placed through a partially open window to facilitate portability or convenience. This unit can be used in two positions.

Horizontal position - for Spray Mount, aerosol lacquers and fixatives etc. applied to artwork placed onto the filter. Accommodates artwork up to A3 size.

Vertical position - For model sprays and airbrush use - light grinding particles (not sparking) - solder fume extraction and general solvent and gas extraction.


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Specification

Part ID: A300S-D
Fan Motor Spec: 230V 50Hz 105W
Air Volume at Free Air: 355 m3/hr
Air Velocity at Filter Face: 0.60 m/sec
Air Velocity at Hood Face: 0.35 m/sec
Noise Level: 58 dB (A)
Weight: 10 kg
Lead Time: Usually Ships 5-7 days

Part No. Description Price Buy
A300S-D Air Extraction Unit  each


Filtration

The particulate (intake) filter is a three stage graduated fibre filter with a high ‘dust’ holding capacity for long life. Filtration to 5 micron particles. NB: Spray particulate sizes vary from 10 to 20 microns.

Through the process of filtration, adsorption and dilution, operator exposure to potentially hazardous substances is vastly reduced.

Demonstrating adequate control of the risks to the health of employees students and the general public, from dusts, powders, mists, fumes and vapours is the fundamental requirement of the Control of Substances Hazardous to Health (CoSHH).
