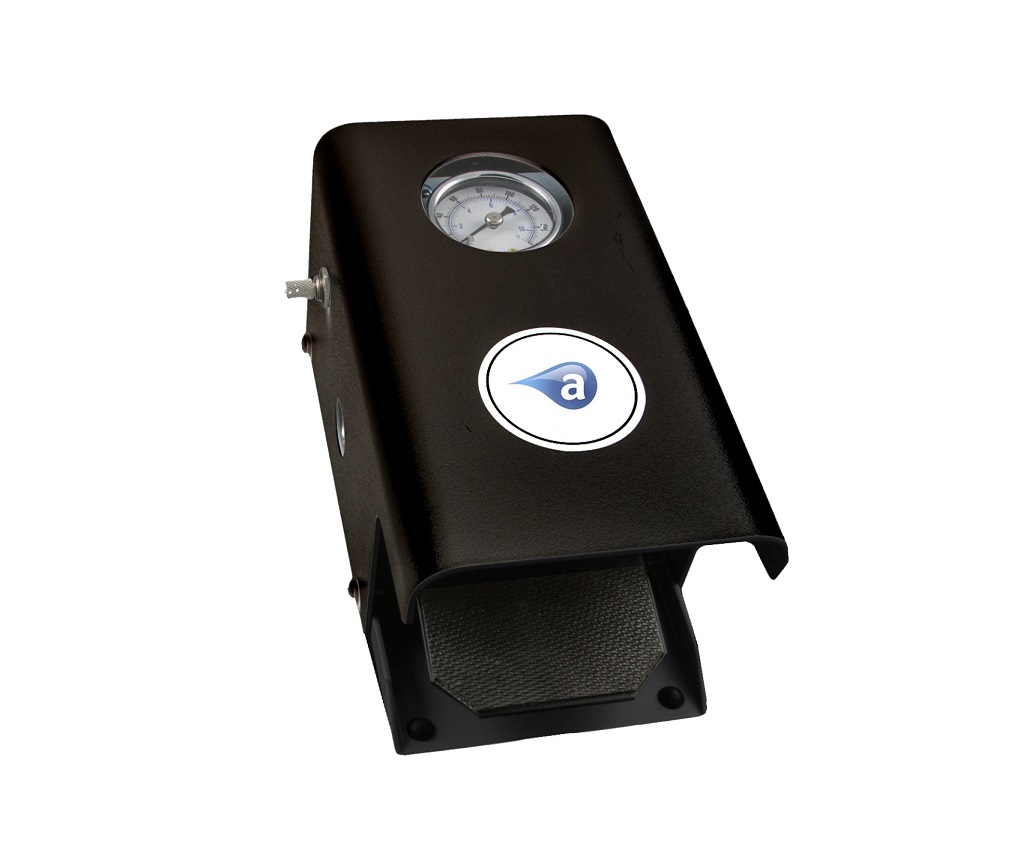

Floor mounted dispensing
system for the controlled application of gels and pastes. Features
an adjustable air regulator, fast air exhaust release and compact
design. This dispenser is shipped with a syringe pack and long airline
Floor mounted pneumatic adhesive
and paste syringe dispenser. With an adjustable 0-100 psi regulator. Three
way air valve for quick shut-off prevents fluid oozing when pedal released.
Operator controls deposit output.
Suited to controlled dispensing
of most medium to high viscosity fluids, sealants, RTV, grease, gels,
epoxies, mastics, pastes and potting compounds.
Supplied with a 30cc syringe
adapter assembly with 6ft long air hose, barrels, pistons and needle tips.
Also available with vacuum suck-back (AD924V) for dispensing lower viscosity materials.
Covered by a one (1) year warranty and CE approved. This dispenser is
available direct from stock. This robust built benchtop dispenser is
simple to use and operate and we offer full technical support for quick set
up and for getting results.
Under bench takes up less space
Integrated air pressure regulator
Non electric - use in any environment
Fast air exhaust reduces ooze
Includes barrels and long air
Analog gauge 0-100 psi
Operator Controls Deposit Size
Up to 100 psi
200 x 127 x 127 mm
Meets or Exceeds:
Items are shipped in the UK by a courier on a tracked
and insured service with products that are available from
stock. Items on a longer lead time will be shipped as soon
as they are made available.
Dispensers can be used in a factory production or
assembly department to assemble products quickly and without
material waste. They can be set to make controlled deposits of
materials and beads beads.
Deposits of solder paste, solder
flux, grease to bearings, PVA glue to furniture joints, RTV
to seal seams, silicone gaskets to bond products, gasket
sealant repair, shots of roach insecticides, modelling, general
adhesive and glue applications.
Solder paste beads to PCBs
RTV beads to display cases
Grease deposits to bearings
Potting connectors & switches
PVA glue to furniture
Ink and paint deposits
and many more...
Adhesive Dispensing Ltd provide a wide
range of equipment options for dispensing almost all assembly fluids - from
watery liquids, solvents, primers and activators through to thick pastes,
sealants, silicones, gels and epoxies.
Description / Quantity
AD924 0-100 PSI Air Only Dispenser
Tariff Code: 90269000 Lead
Time: 24 Hours
AD924 Dispenser (1)
Clear 30cc Syringe Barrel (1)
White 30cc Wiper Piston (1)
Orange 30cc End Cap Seal (1)
Orange Tip Cap Seal (1)
Dispensing Tip (5)
Summary: This air-powered syringe dispenser provides
the user with high levels of control when applying gels and pastes. It is built from high quality parts & covered by a
warranty. It is pneumatic only so does not require power and can be used
in a hazardous and explosive environment. We ship this with
accessories ready to use out of the box. It is CE approved and includes a
full user guide.
clean and dry compressed air from most small compressors, a mains
factory air supply or nitrogen. We recommend the use of a 5 micron air
filter on the supply air into the dispenser. This will reduce oil,
moisture and particles from the air.
