50ml 1:1 Ratio Cartridge Dispensing System

Use this tool when connected to any air powered dispenser with vacuum. For use with 50ml 1:1 ratio side by side resin cartridges. This is rod driven so provides a very controlled pressure on the dual pistons in the cartridge.

ADV-50-11 50ml Equaliser Retainer 1:1 Epoxy Pneumatic


For epoxies, silicones, polyurethanes, adhesives and other materials supplied in 50ml two part, side-by-side 1:1 ratio mix cartridges with the use of a static mixing nozzle.

The lightweight and durable construction of our pneumatic retainers make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive. This tool is very lightweight at just 425g.

Connect this tool to an air dispenser such as the ADL100, ADL810, TS9150, 1000T, TS250, TS350 or AD1001 . The dual cartridge is pushed into the assembly and locked in place. Air pressure is dispensed onto the rods pushing down on the pistons within the cartridge. The system is supplied with an airline hose connector that attaches directly to our timed pneumatic dispensers with vacuum suck-back. When the cartridge is empty, use the vacuum suck-back on your dispenser to draw the plungers back. Fits comfortably into the hand for use over long periods of time and minimum risk of repetitive strain injury.

All products are CE approved product with a 1 Year warranty. This tool works with all pre-filled 50ml adhesive cartridges 1:1 ratio.


Dual Cartridge 50ml Retainer

GBP   each ex. Vat.
Excludes carriage.
Lead Time:
Ships Within 24 Hours

Summary: 50ml 1:1 Dispensing System for use with air powered dispensers.

Code Ratio Price GBP Add
ADV-50-11 1:1   each

Specifications

Max Pressure: 100 PSI
Weight: 425 Gram
Length: 160mm
Width: 54mm
Cartridge Size:
50ml
Cartridge Ratio: 1 to 1 By Volume
Material: Aluminium/ Stainless Steel
Colour: Silver


Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications:- Deposits of two-part resins, epoxies, polyurethanes, silicones, adhesives and other mixed assembly fluids.

ADV-50-11 Air Retainer Features

Fits 50ml 1:1 dual epoxy cartridges
Easy cartridge load and unload mechanism
Controlled fast deposit or consistent beads
Lightweight yet very robust construction
Fast air exhaust reduces drips or ooze
Use on air dispensers with vacuum suck-back

A-System Cartridges and Static Mixer Nozzles
More Info Part Code

Description

Lead Time Price GBP Add

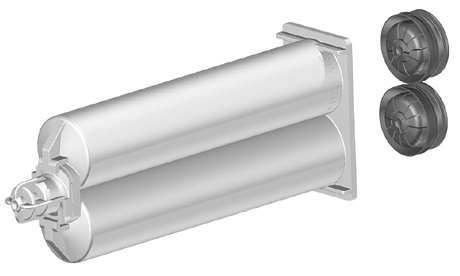

451000
Dual Component
Cartridge Sets
Polypro
Cartridge Size: 50ml
Mix Ratio: 1:1
Type: Bayonet Style Nozzle Outlet
For: Use with Dual Applicator Guns
Pack Size: 50 Cartridges/ 100 Pistons
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Bayonet White Round MA3.0-07S
Bayonet White
Round Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  7
Inner Diameter: 3.0mm
Length: 33mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Bayonet White Round MA3.0-13S
Bayonet White
Round Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  13
Inner Diameter: 3.0mm
Length: 51mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Bayonet White Round MA3.0-17S
Bayonet White
Round Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  17
Inner Diameter: 3.0mm
Length: 62mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Bayonet White Round MA4.0-13S
Bayonet White
Round Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  13
Inner Diameter: 4.0mm
Length: 66mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Bayonet White Round MA4.0-17S
Bayonet White
Round Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  17
Inner Diameter: 4.0mm
Length: 82mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Bayonet White Round MA5.4-07S
Bayonet White
Round Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  7
Inner Diameter: 5.4mm
Length: 56mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Bayonet White Round MA5.4-13S
Bayonet White
Round Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  13
Inner Diameter: 5.4mm
Length: 85mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Bayonet White Round MA5.4-17S
Bayonet White
Round Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  17
Inner Diameter: 5.4mm
Length: 104mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Bayonet White Round MA5.4-21S
Bayonet White
Round Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  21
Inner Diameter: 5.4mm
Length: 124mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Bayonet White Round MA6.3-12S
Bayonet White
Round Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  12
Inner Diameter: 6.3mm
Length: 97mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Bayonet White Round MA6.3-17S
Bayonet White
Round Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  17
Inner Diameter: 6.3mm
Length: 128mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Bayonet White Round MA6.3-21S
Bayonet White
Round Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  21
Inner Diameter: 6.3mm
Length: 152mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Bayonet White Round MA6.3-21L
Bayonet White
Round Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  21
Inner Diameter: 6.3mm
Length: 152mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Green Square  MAQ05-16L
Bayonet Green
Square Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  16
Inner Diameter: 5.3mm
Length: 83mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Static Mixer Nozzle Green Square  MAQ05-24L
Bayonet Green
Square Mixer
Mix Ratios: 1:1 and 2:1
Number Of Elements:  24
Inner Diameter: 5.3mm
Length: 115mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack

B-System Cartridges and Static Mixer Nozzles
More Info Part Code

Description

Lead Time Price GBP Add
112511
Dual Component
Cartridge Sets
Polypro
Cartridge Size: 50ml
Mix Ratio: 1:1
Type: Dual Hole Nozzle Outlet
For: Use with Dual Applicator Guns
Pack Size: 50 Cartridges/ 100 Pistons
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH03-12D
Cap Lock White
Round Mixer
Straight End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  12
Inner Diameter: 3.2mm
Length: 58mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH03-12S
Cap Lock White
Round Mixer
Stepped End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  12
Inner Diameter: 3.2mm
Length: 63.5mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH03-16D
Cap Lock White
Round Mixer
Straight End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  16
Inner Diameter: 3.2mm
Length: 70.7mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH03-16L
Cap Lock White
Round Mixer
Luer End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  16
Inner Diameter: 3.2mm
Length: 75.8mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH03-16S
Cap Lock White
Round Mixer
Stepped End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  16
Inner Diameter: 3.2mm
Length: 76.5mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH04-12D
Cap Lock White
Round Mixer
Straight End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  12
Inner Diameter: 3.2mm
Length: 69.5mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH04-16D
Cap Lock White
Round Mixer
Straight End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  16
Inner Diameter: 4.2mm
Length: 86mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH04-16S
Cap Lock White
Round Mixer
Stepped End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  16
Inner Diameter: 4.2mm
Length: 96mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH05-06T
Cap Lock White
Round Mixer
Tapered End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  6
Inner Diameter: 5.4mm
Length: 59.3mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH05-12D
Cap Lock White
Round Mixer
Straight End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  12
Inner Diameter: 5.4mm
Length: 82.5mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH05-14D
Cap Lock White
Round Mixer
Straight End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  14
Inner Diameter: 5.4mm
Length: 111.8mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH05-16T
Cap Lock White
Round Mixer
Tapered End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  16
Inner Diameter: 5.4mm
Length: 111.8mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Sulzer Mixpac Mix Nozzle  MBQ05-16L
Cap Lock Green
Square Mixer
Luer End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  16
Inner Diameter: 5.3mm
Length: 90.7mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Sulzer Mixpac Mix Nozzle  MBQ05-24L
Cap Lock Green
Square Mixer
Luer End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  24
Inner Diameter: 5.3mm
Length: 122mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH05-20T
Cap Lock White
Round Mixer
Tapered End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  20
Inner Diameter: 5.4mm
Length: 128mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH06-11D
Cap Lock White
Round Mixer
Straight End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  20
Inner Diameter: 6.5mm
Length: 88.5mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH06-16T
Cap Lock White
Round Mixer
Tapered End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  16
Inner Diameter: 6.5mm
Length: 131mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
B-System Static Mix Nozzle Sulzer Mixpac  MBH06-20T
Cap Lock White
Round Mixer
Tapered End
Mix Ratios: 1:1 and 2:1
Number Of Elements:  20
Inner Diameter: 6.5mm
Length: 157mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
Adhesive dispensers TS250
Timed Shot
Air Dispenser
Timer: 0.02 to 60 Second
Output Air: 0 to 100 psi
Type: Dispenser to Operate ADV-50-11
For: Manual or Automated Assembly
Colour: Black
Ships Within 24 Hours   each

ADV-50-11 50ml Equaliser Retainer 1:1 Epoxy Pneumatic

ADV-50-11 50ml Equaliser Retainer 1:1 Epoxy Pneumatic

  Adhesive dispensers     Syringe barrels   Dispensing tips
  Dispensers & Valve Controllers     Consumables
Syringes
  Dispensing
Tips


        Techcon Techkit cartridges
  Cartridges & Plungers     Dispensing Nozzles   Techkit Cartridges

  Literature

  Dual Air Guns
  Dual Cartridge & Mixers
  Full Catalogue
  Syringe Barrels
  Cartridges & Nozzles
  Dispense Tips
  Nozzles Brochure
  Dispense Guns

This product ships direct from stock


  Cartridges Techkit Cartridges
Cartridge Plungers Nozzles
Cartridge Kits Cartridge Retainers
Cartridge Caps Cartridge Guns
Syringe Barrels Syringe Guns
Syringe Pistons Dispense Tips
Syringe Caps Manual Syringes
Dual 2K Cartridges Static 2K Mixer Nozzles
Air Dispensers Dispensing Equipment
Syringe Racks Special Offers

  Luer Lock Bottles Bench Stands
Flux Primer Pens Syringe Filling Systems
Threadlocker Adhesives Cyanoacrylate Adhesives
Threadlocker Valves Cyanoacrylate Valves
UV Cure Adhesives Solder Paste Valves
UV Cure Valves Spray Valves
Grease Valves Valve Controllers
XYZ Robots Pressure Pots
Rotary Dispensing Table Contract Fill Repackaging
Fume Extraction Compressors



Techcon


Copyright 2019 Adhesive Dispensing Ltd. All transactions subject to Adhesive Dispensing Ltd standard Terms & Conditions, E&OE.

Prices are in UK pounds.  Vat is not charged on orders placed outside the EU and any EU orders are exempt from VAT only if a valid company VAT number is provided to us at time of order or before shipping.  Products are covered by a 12-month warranty against faults and malfunction.  All orders online are encrypted for safety and security.  Please read our privacy agreement for details.  We also process phone or fax payments by credit and debit card.  Please contact our accounts department if you would like to open a credit account with us. Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, Adhesive Dispensing Ltd. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.




Website copyright intelligence monitoring




TSR2201 Robot 200mm x 200mm adhesive dispensing
