** NEW Z Axis Rotary Dispensing Table

Automated dispensing station for making controlled deposits to circular components. The table disc spins and the syringe barrel indexes down. The deposit is made to the part and the syringe barrel indexes up. Easy to adjust and achieve accurate beads.

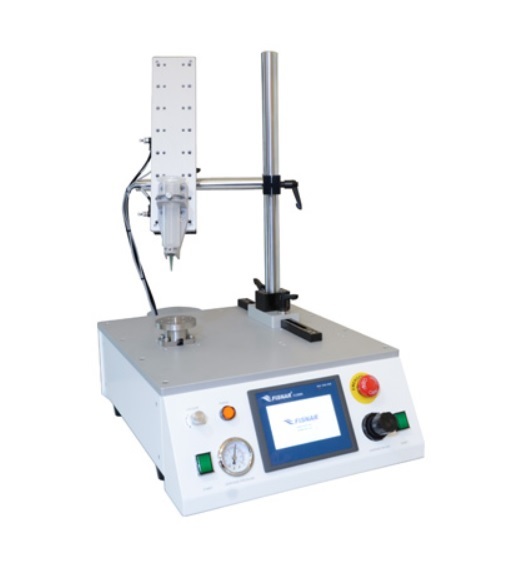

Z Axis Rotary Turn Table Dispensing Station F1300N


Features & Benefits

Accepts parts up to 300mm / 12″ diameter
HMI Control panel for easy set-up and use
Operator lockout
9 programmable memory facility
Auto-cycle / cycle count limit
Tool load capability 10kg
Workload capability 3kg
Dual push button, foot pedal or remote start cycle initiation


This compact cost effective dispenser sits on the work bench and requires an air input from any compressor or factory mains supply delivering 60 psi or above.

All products are industrial grade and are covered by our no-quibble One Year warranty.

Dispensers are supplied with user guide to assist with the initial setting up process. Customers can contact us for full support and advice in using this timed barrel rotary dispensing station.


Specially designed for tackling round dispense applications, the new F1300N rotary table is highly effective at dispensing circular patterns on areas that are typically difficult to access.

The Z-axis tilt on the rotary table enables controlled rotary dispensing at an angle, thus providing optimum positioning for the dispense tip. Easily adjusted, the rotary table can dispense either on a horizontal or vertical wall within a component part or on an outside wall. The F1300N replaces the existing rotary table RT404, and has an increased dispensing work area size of 300mm (12 Inch). It is capable of dispensing onto components with a maximum diameter of up to 350mm (14 Inch) and a work load of up to 3kg.

With its HMI control panel, programming the F1300N is as easy as using it. End users can control the rotation speed and degree of rotation, while pre and post-cycle waiting times can be individually adjusted to suit application requirements and achieve the perfect dispensing result. Other notable features of this semi-automated dispensing system include operator lockout, autocycle functionality, 7 channel I/O circuit and external control connection for easy integration into safety enclosures or auxiliary machine systems.

The F1300N dispenses from barrels, cartridge or valves using the relevant Fisnar modular robot mounting bracket, and is compatible with most materials including adhesives, silicones, greases and lubricants.

The F1300N is supplied with airline hose and fittings kit to make connection easy. Includes a syringe stand, 30cc/ 55cc syringe and piston pack and tip kit selection. Ready to use out of the box.


F1300N Rotary Dispenser
  GBP   each ex. Vat.
Excludes carriage.
Lead Time:
Usually Ships in 5-7 Days
Datasheet


  Summary: This air-powered syringe dispenser provides the user with high levels of control. 0-100 PSI air output for handling both watery liquids to thick pastes. We ship this with accessories ready to use out of the box. It is CE approved & includes a full user guide.

Product Code Qty Price GBP Add
F1300N 1   each

An adjustable vacuum provides suck-back to the tip to prevent watery liquids from dripping. We recommend the use of an inline filter on the air adapter to the syringe when dispensing low viscosity fluids.

The display shows the timer which can be adjusted for repeat deposits, down to micro-dots. The display shows the RPM, the delay time from dispensing as the table turns and delay time after.

This compact dispenser sits on the bench and requires an air input from any compressor or factory mains supply. It comes with airline hose and fittings kit to make connection easy. Ready to use out of the box. CE approved with 1 Year warranty.

Specifications
Working Area: 300mm
Cycle Initiation: Manual or Automatic
Workable Load: 3kg
Tool Load: 10kg
Vertical Travel: 100mm
Rotation Speed: 0-60 rpm
Data Memory: 9 programs
I/O Signals: 2 inputs / 5 outputs
Power: AC Input 100-240V 1.4 A, DC Output 24V DC@2.4 Amp
Air Input: 70-100 psi (5-7 bar)
Air Output: 1-100 psi (0.1-7 bar)
Dimensions (WxDxH): 350 X 433 X 575mm
Weight: 11 kg
Approvals
CE, RohS, WEEE

Dispensers require clean and dry compressed air from most small compressors, a mains factory air supply or nitrogen. We recommend the use of a 5 micron air filter on the supply air into the dispenser. This will reduce oil, moisture and particles from the air.

No other maintenance is required as the dispenser applies liquid direct from a syringe barrel without being in direct contact with it. Syringe barrels and dispense tips are all disposable.

Items are shipped in the UK by a courier on a next day tracked and insured service for all items that are available from stock. Items on a lead time will be shipped as soon as they are become available.

Dispensers will handle all viscosity liquids from thin solvents to thick pastes. Customers use these systems for a wide range of dispense projects. Common applications include solder paste, fluxes, silicones, gels, UV cure, Cyanoacrylate & more.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
