Home > Components > Dispensing Pens > FV-0600




1.5oz Flow-Seal Plastic Bodied Black Jumbo Pen

Dispensing pens offer a simple way to apply low viscosity liquids without mess, waste or fumes. The pens are supplied ready to fill. The polyester spring loaded nib assembly is clipped into place. A plastic cap seals then pen for storage. Press the nib againt surface for a controlled flow.  Spare nibs are available to order from stock. Ideal for primers and other low viscosity liquids.

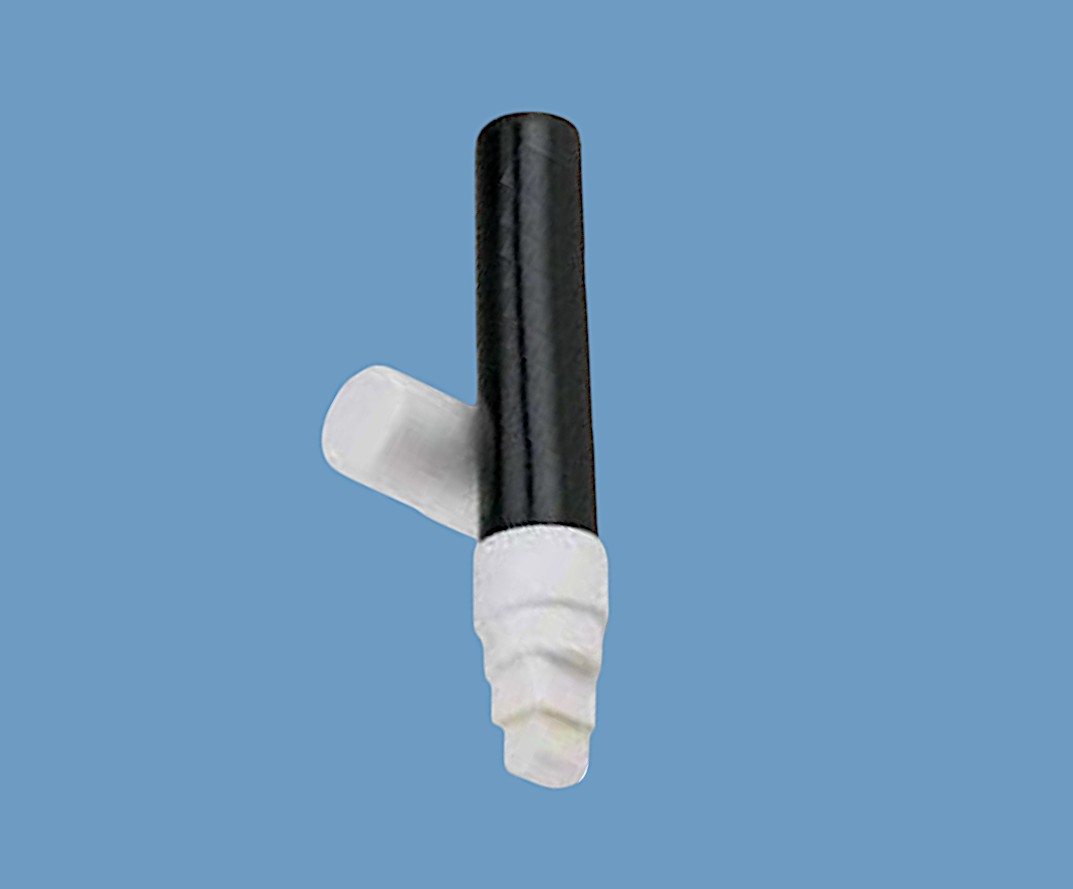

FV-0600 Jumbo Primer Spring Loaded Dispensing Pen

Size: 1.5 Ounce (44.35ml)
Material: Acylic/ Polyester/ Nylon
Pen Size: 160mm Long x 25mm Wide
Nib Width: 15mm
Pen Length: 135mm (without cap)
Colours: Black and White
Typical Fluids: Solvent, Primer, Alcohol
Lead Time: Ships Within 24 Hours


Plastic bodied dispensing pens and bottles with acrylic nib assembly and cap seal. Ideal for applying inks, coatings, adhesives, solvents, primers, coatings and activators. Spring loaded felt nib allows liquid to flow when pressed against a surface. Shuts off to eliminate drips.

Supplied unassembled ready for filling and dispensing. Caps allow for filling then storage. Also available supplied pre-filled with your specified liquid if required. Supplied in a sealed pack of pens with label and batch code.

Supplied unassembled ready for filling and dispensing. Caps allow for filling and storage. Also available supplied pre-filled with your specified liquid if required. Supplied in a sealed pack of pens with a label and batch code. Includes pen body, nib cap assembly with nib and seal cap assembly.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Spring Jumbo Pen 1.5oz Adhesive Dispensing


More Info Part No.

Type

Specs Lead Time

Price GBP

Add
Spring Loaded Nib Pens. Small dispensing pens where the solvent is placed inside the aluminium body. As the nib is pressed against a surface, it retracts allowing a gap for solvent to flow onto the nib ready for application. The pens come with body, spring nib assembly, nib and push on cap seal.
FV-0600 Jumbo Primer Dispensing Pen Nib FV-0600
Spring Jumbo Pen
Plastic Body
Acrylic Nib
1.5oz Size Assembly 24 Hours   pack 1
FV-0600 Jumbo Primer Dispensing Pen Nib FV-0600-10
Spring Jumbo Pen
Plastic Body
Acrylic Nib
1.5oz Size Assembly 24 Hours   pack 10
FV-0600 Jumbo Primer Dispensing Pen Nib FV-0600-50
Spring Jumbo Pen
Plastic Body
Acrylic Nib
1.5oz Size Assembly 24 Hours   pack 50
FV-0600 Jumbo Primer Dispensing Pen Nib FV-0600-100
Spring Jumbo Pen
Plastic Body
Acrylic Nib
1.5oz Size Assembly 24 Hours   pack 100

361-600-PB100 361-600-PB10
Replacement Nib
Flat Acrylic Nib
White 15mm Width
For FV-0600 Pen
Nib Only
24 Hours   pack 10
361-600-PB100 361-600-PB100
Replacement Nib
Flat Acrylic Nib
White 15mm Width
For FV-0600 Pen
Nib Only
24 Hours   pack 100

Typical Uses: Applicators are all tested and suitable for handling solvents, primers and solvent based glues. They all use wetted parts designed for liquids to be applied safely.

Common Applications:-
Deposits of solvents, solvent based glues, cements as well as primers, activators, fluxes and other liquids. Solvent cement, plastic welding, repairs, cases, displays, primers to rubbers, etc.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

The products are robust and handle most liquids and fluids dispensed from them. Supplied with full instructions and our full technical support by phone or email. For dispensing machines we include all fittings, tubing, connectors, adapters and a wide selection of precision dispensing tips with the system.

Items are shipped from the UK by a courier on a tracked and insured service for all items that are available from stock. Items on a lead time will be shipped as soon as they are made available.

Warranty: All dispensing products are covered by a 1 (one) Year manufacturers warranty against fault. These products are disposable.
