These components are industrial grade safe

These components are certified silicone free

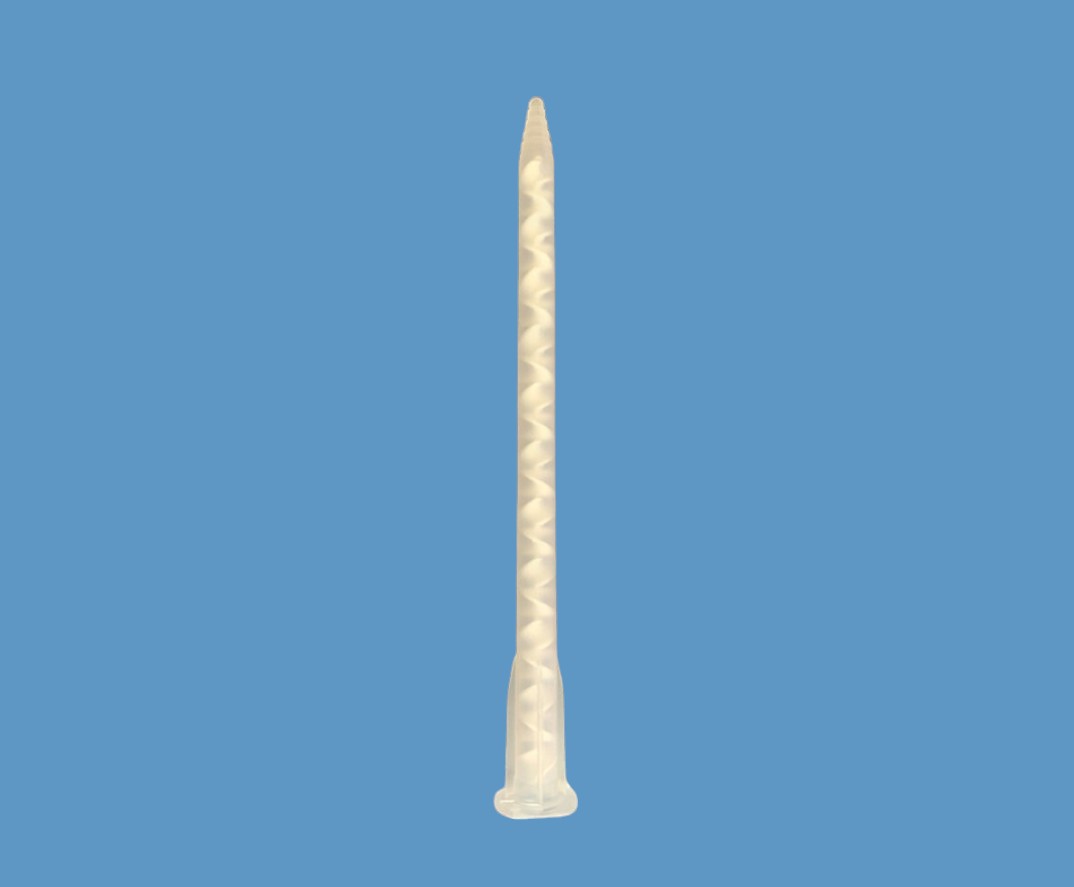

Static Mixer Nozzle for 50ml 1:1 or 2:1 Cartridges
6.3mm ID with 21 Mixer Elements

static mixer nozzle white bayonet

High density moulded static mixer nozzles with bell attachment to cartridges or machines. Stepped end design for direct dispensing or attachment of reducer fitting when using small luer lock needle tips. Silicone free and industrial grade.


Bayonet inlet, helical static mixer for 50ml and 75ml cartridges.  Stepped outlet that can be cut back to increase orifice size and increase flow rates.  These mixer nozzles are suitable 1:1 and 2:1 ratio two-component materials.  They have white elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges.  All items are industrial grade safe and silicone free. 6.3mm inner diameter x 21 mixing elements. These mixers ship direct from stock.

ma6.3-17S Static mixer nozzle sulzer



If a higher level of control for smaller deposits is required, use our part code LA06-08 with this mixer nozzle. It threads over the end of the nozzle to provide a luer lock tip attachment. This allows the use of our full range of dispensing tips to control the  epoxy or material better.

This reducer fitting is made from high density plastic and is available in sealed packs of 10 direct from stock.


Specifications

Part ID: MA6.3-21S

50ml dual cartridges

Material: Polypropylene
Colour: Natural Outer, White Elements
Inner Diameter: 6.3mm
Elements: 21
Length: 153.0mm
Volume: 3.6ml
Details: Industrial grade, Silicone Free
Lead Time: * Ships within 24 Hours

Size Pack Size

Part Number

Price Buy
6.3mm ID 100 MA6.3-21S  per pack
