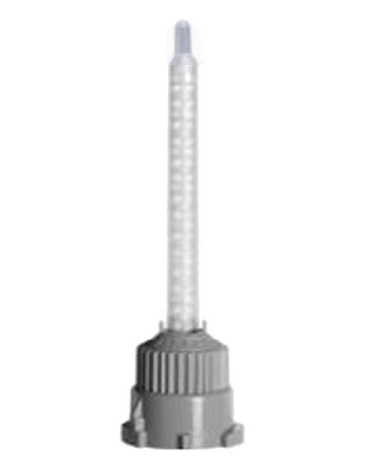

Static Mixer Nozzle 3.2mm ID x 16 Mix Elements ...

High density moulded static mixer nozzles with cap attachment to cartridges or machines. Luer end design for direct dispensing or attachment of luer lock needle tips. Silicone free and industrial grade.

MBH03-16L Mix Nozzle Luer Adhesive Dispensing Sulzer Mixpac

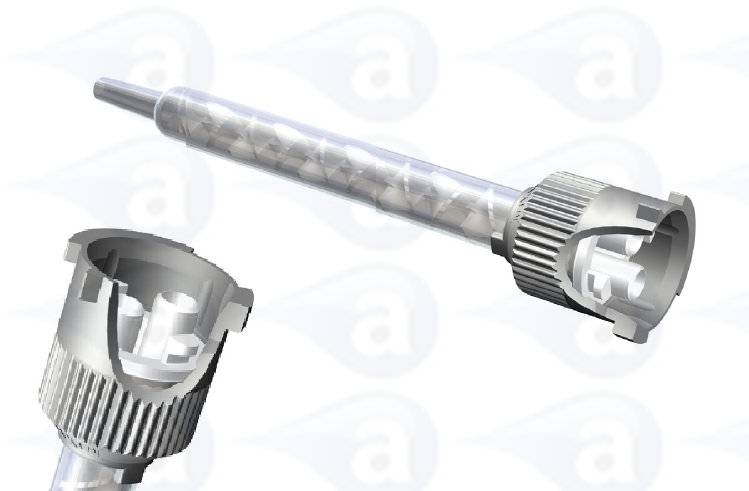

Twist lock cap, helical static mixer nozzle for 50ml and 75ml B System dual component cartridges. Luer slip end outlet that can accept direct attachment of any luer dispensing tips. These mixer nozzles are suitable for 1:1 and 2:1 ratio two-component materials and B System dual hole cartridges.

They have white elements and are constructed of high grade polypropylene. High quality mixer nozzles for use with twin cartridges. All items are industrial grade safe and silicone free. 3.2mm inner diameter with 16 mixing elements.

If a higher level of control for smaller deposits is required, use any of our range of dispensing tips with this nozzle. The luer tip will push over the tapered end of the nozzle end to provide a smaller outlet for finer deposits.

Dispensing tips are available in many different styles including smooth flow tapered, precision metal and bent.

All products shipped are in sealed boxes or packs that include label with batch codes.


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

MBH03-16L Mixer Nozzle

GBP   each ex. Vat.

Excludes Carriage.

Lead Time:
Usually Ships 24 to 72 Hours

Summary: Dispensing mixer nozzle for use with 1:1 or 2:1 Ratio B Systems Dual Cartridges.

Item Qty Price GBP Add
MBH03-16LX 1000   pack

Specifications

Materials: Polypropylene
Colours: Natural Out/ White Inner/ Grey Cap
Length: 75.8mm
Inner Diameter: 3.2mm
Number of Elements: 16
Retained Material Volume: 0.63ml
Connection Type: Twist Lock Cap

Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Straight
Description: Static Mixer Nozzle
Features: Silicone-Free, Industrial Grade

Pack Sizes: 1000


Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications:- Deposits of epoxy resins, two-part silicones, PU Polyurethanes and many other 2 component mixed materials. Use dispensing tips for more precision.
