> Home > Components > Dual Cartridges > Static Mixers > B System > MBQX05-24L

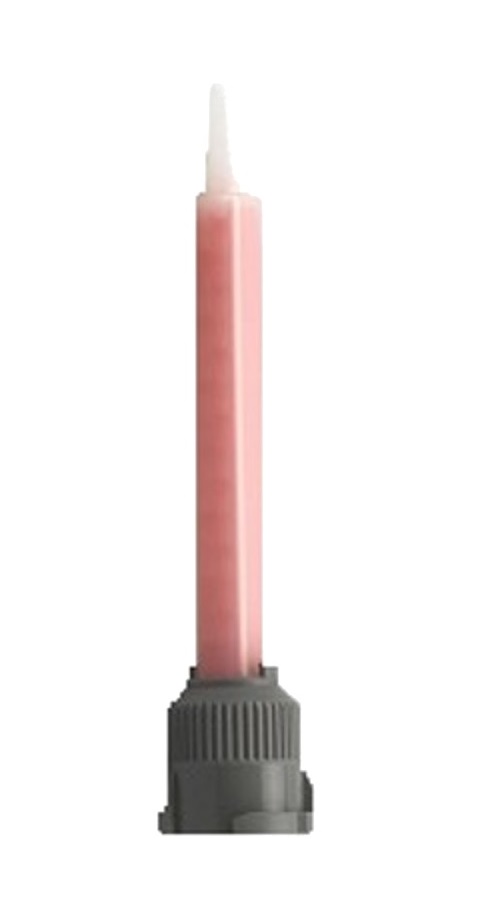

Static Mixer Nozzle 5.4mm ID x 24 Mix Elements ...
High density moulded static mixer nozzles with cap attachment to cartridges or machines. Luer end design for push-on attachment of needle tips. Silicone free and industrial grade.
MBQX05-16L Mix Nozzle 5.3mm Adhesive Dispensing Sulzer Mixpac
Twist lock cap, square quadro body static mixer nozzle for 50ml and 75ml B-System dual component cartridges.

Luer outlet for quick push-on attachment of all luer dispensing tips. Suitable for 4:1 and 10:1 ratio two-component materials.

They have green elements and are constructed of high grade polypropylene. All items are industrial grade safe and silicone free.

All products shipped are in sealed boxes or packs that include label with batch codes.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.
MBQX05-24L Mixer Nozzle (116062)

GBP   each ex. Vat.

Excludes Carriage.

Lead Time:
Usually Ships 24 to 72 Hours
Summary: Dispensing mixer nozzle for use with 4:1 or 10:1 Ratio B Systems Dual Cartridges.
Item Qty Price GBP Add
MBQX05-24L 100    pack
Materials: Polypropylene
Colours: Orange Element/ Grey Cap
Length: 122.0mm
Inner Diameter: 5.3mm
Number of Elements: 24
Retained Material Volume: 2.37ml
Connection Type: Twist Lock Cap

Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Straight
Description: Static Mixer Nozzle
Features: Silicone-Free, Industrial Grade

Pack Sizes: 100
Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications:- Deposits of epoxy resins, two-part silicones, PU Polyurethanes and many other 2 component mixed materials. Use dispensing tips for more precision.
More Info Part No.


Colour Lead Time


Price GBP Add
Dual cartridge 50ml adhesive dispensing 116421
50ml 1:1 Cartridge Sets
Lead time 24 Hours
4:1 Ratio White 24 Hours 50   pack
Dual cartridge 50ml adhesive dispensing 116423
50ml 2:1 Cartridge Sets
Lead time 24 Hours
10:1 Ratio White 24 Hours 50   pack
Manual Dual Cartridge Gun Adhesive Dispensing ABM-25M4
Manual Dual Gun
Lead time 24 Hours
4:1 Ratio Grey 24 Hours 1   each
Manual Dual Cartridge Gun Adhesive Dispensing ABM-25M10
Manual Dual Gun
Lead time 24 Hours
10:1 Ratio Grey 24 Hours 1   each
EDS408M 50ml Dual Pneumatic Gun EDS408M
Pneumatic Dual Gun
Lead time 1-2 Weeks
4:1/10:1 Ratio Black 2-3 Weeks 1   each
