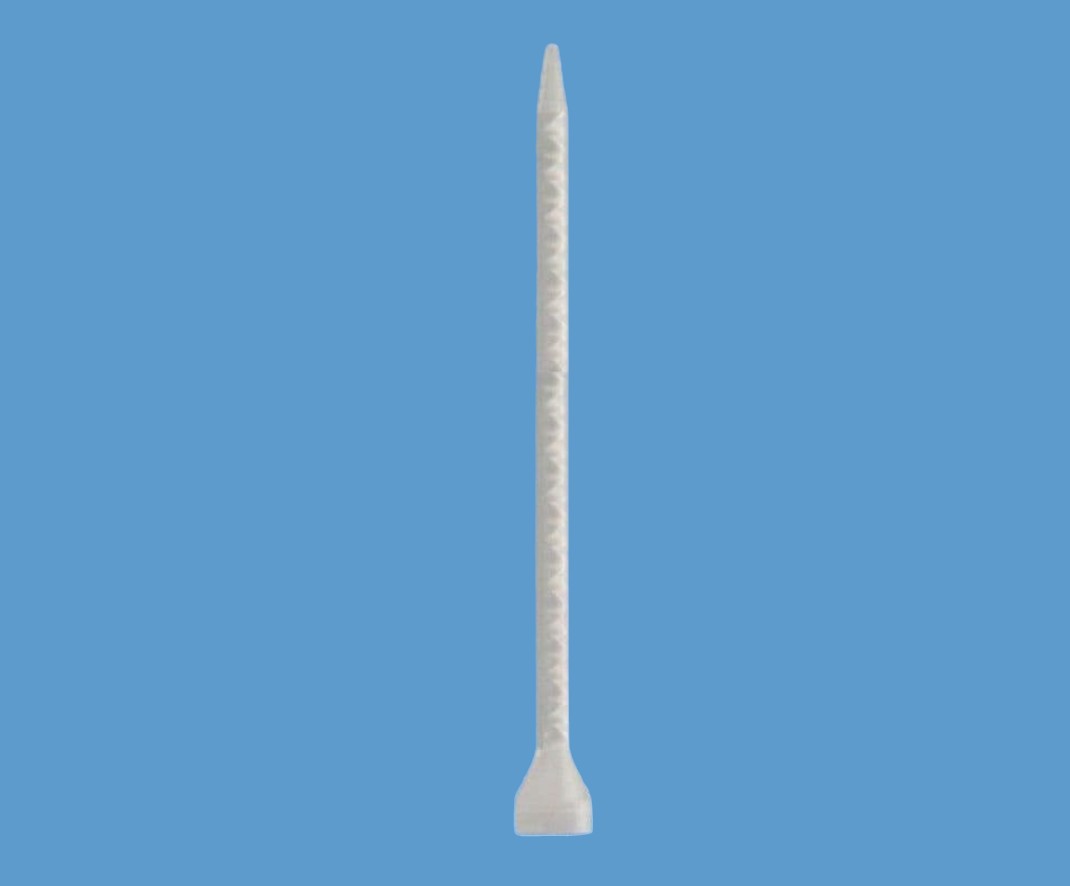

Static Mixer Nozzle 5mm ID x 32 Mix Element

MCH05-18T Mix Nozzle Dual Static Adhesive Dispensing Sulzer Mixpac

High density moulded static mixer nozzles with bell attachment to cartridges or machines. Stepped end design for direct dispensing or attachment of reducer fitting when using small luer lock needle tips. Silicone free and industrial grade.


High quality, tapered mixer nozzle with stepped dispense end. 5mm internal diameter with 32 mix elements. Suitable for use with 200ml 1:1, 200ml 2:1, 400ml 1:1 and 400ml 2:1 ratio dual cartridges. Bell mouth housing. Attaches to cartridge using threaded collar supplied with 1:1 and 2:1 ratio 200ml and 400ml cartridges. Industrial grade safe and silicone free plastics.

Suitable for use with many two part materials including epoxies, PU's and silicones, etc. Provides a dynamic mix of the two parts down to the tip end. Supplied in a pack of 100. These products ship direct from stock by tracked courier.

Specifications

Part ID: MC05-32T

Manual cartridge gun for dual mixers

Material: Polypropylene
Colour: Natural Outer, White Elements
Ratio: 1:1 and 2:1
ID: 5.0mm
OD: 8.0mm
Elements: 32
Length : 188 mm
Volume: 2.8ml
Housing Material: Polypropylene
Element Material: Polypropylene
Element Colour: White
Tip End Type: Stepped
Details: Industrial grade, Silicone Free
Lead Time: * Ships in 24 Hours

Size Pack

Part Code

Price Add
5.4 mm ID 100 MC05-32 GBP   per pack
