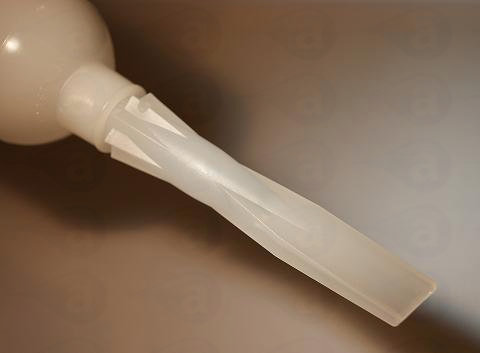

Ribbon Nozzle 4" Long 0.5" Wide Outlet
TS1050 Nozzle 0.5" Spreader Adhesive Dispensing Techcon

Dispensing nozzles for cartridges and valves. Industrial grade safe up to 100 psi and certified silicone-free. Threaded attachment for leak free dispensing. Ribbon nozzles offer a wider band of fluid coverage to substrates either dispensing by hand or on automated application systems.

Precision moulded 4.0" long spreader nozzle x 1/2" wide x 1/16" (0.06") orifice. 1/4" NPT thread to fit cartridges, valves and TSD931-296 sealant cartridge adapter fitting.  Natural high density polypropylene material safe for use up to 100 psi.  1/2" wide opening slit provides wider spread of adhesive to products.

Supplied in sealed packs of 10.  Bulk quantities are available on request. Available direct from stock. Watch the nozzle comparison video here

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Specification

Part ID: TS1050

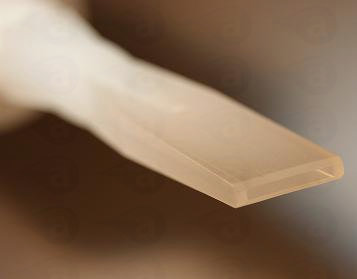

0.5" wide slit

Material: Polyethylene
Colour: Natural
Opening Size: 0.06" (1.52mm)
Opening Width: 0.50" (12.7mm)
Length: 4.00" (101.6mm)
Connection: 1/4" NPT
Details: Industrial grade, Silicone Free
Availability: * Ships in 24 Hours

ID Size Pack

Part Code

Price Add
1/16" 10 TS1050   per pack

1/4" NPT thread for attachment to cartridge

Nozzle Options




Cartridges


Plungers

Nozzles

Caps


Air-Powered Dispensers * Industrial Dispensing Components * Precision Dispense Valve Systems * XYZ Bench Robots

Adhesives * Packaged Components * Techkits * RatioPacks * Hingepacks * Syringe Barrels * Cartridges * Nozzles

|  Privacy   |   Terms   |  Accounts  |

Prices are in UK pounds.  Vat is not charged on orders placed outside the EU and any EU orders are exempt from VAT only if a valid company VAT number is provided to us at time of order or before shipping.  Products are covered by a 12-month warranty against faults and malfunction.  All orders online are encrypted for safety and security.  Please read our privacy agreement for details.  We also process phone or fax payments by credit and debit card.  Please contact our accounts department if you would like to open a credit account with us.

Our new web shop is available to order these products in a number of different currencies. Please visit www.adhesivedispensing.co.uk for more details.

Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, Adhesive Dispensing Ltd. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.

Copyright 2005 - 2017 Adhesive Dispensing Ltd. All rights reserved.
  128bit SSL Servers


  Support

  Literature
  Nozzles Brochure
  Cartridges Brochure
  Dispense Tips Brochure
  Syringe Barrels Brochure
  Full Catalogue

  Information
  Important Safety Information
  Viscosities Chart

  Contact Us
  Equipment Recommendations
  Request a Quote
  Technical Support
  Applicator Assist

  Shipment of products


Items are shipped in the UK by a courier on a next day tracked and insured service for all items that are available from stock. Items on a lead time will be shipped as soon as they are available.



  Using these products


Nozzles are designed to work with all industry standard industrial cartridges. Part TSD931-296 is required if using with pre-filled silicone and sealant tubes that feature and external thread nipple to cut. Nozzles are fully compatible with most fluids, adhesives, pastes and gels and useful for high viscosity pastes, sealants, silicones, mastics, solder pastes and compounds.



  Industrial Grade Safe


All nozzles are safe for use up to 100 psi pressure. Nozzles are not for medical use but are precision manufactured for  industrial use.



  Silicone-Free Components


All nozzles are certified silicone-free to prevent contamination of any liquids dispensed from them.
