Dispensing tips adhesive catalog luer lok


Ribbon nozzle 4.4" long x 1.00" wide outlet

Dispensing nozzles for cartridges and valves. Industrial grade safe up to 100 psi and certified silicone-free. Threaded attachment for leak free dispensing. Ribbon nozzles offer a wider band of fluid coverage to substrates either dispensing by hand or on automated application systems.

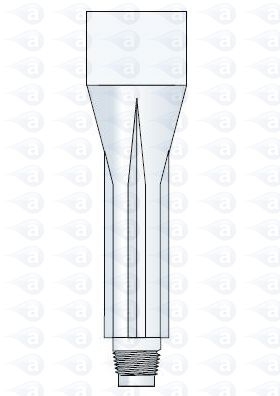

TS1100 Techcon Nozzle 4" Long


Precision moulded 4.4" long ribbon spreader nozzle x 1" wide x 1/8" (0.130") orifice. 1/4" NPT thread to fit all cartridges and some valves. Natural high density polypropylene material. Supplied in sealed packs of 10. Nozzles are designed to work with all industry standard industrial cartridges.

Part TSD931-296 is required if using with pre-filled silicone and sealant tubes that feature and external thread nipple to cut. Nozzles are fully compatible with most fluids, adhesives, pastes and gels and useful for high viscosity pastes, sealants, silicones, mastics, solder pastes and compounds

Bulk quantities are available on request.


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Specification

Part ID: TS1100

TS1100 dispensing nozzle 1" wide

Material: Polyethylene
Colour: Natural
Opening Size: 1/8" (3.3mm)
Opening Width: 1.00" (25.4mm)
Length: 4.40" (111.76mm)
Connection: 1/4" NPT
Details: Industrial grade, Silicone Free
Availability: * Ships within 24 Hours

ID Size Pack Size

Part Number

Price Buy
1/8" 10 TS1100   per pack

1" wide slit opening

All Nozzles



Cartridges


Plungers

Nozzles

Caps

Air-Powered Dispensers * Industrial Dispensing Components * Precision Dispense Valve Systems * XYZ Bench Robots

Adhesives * Packaged Components * Techkits * RatioPacks * Hingepacks * Syringe Barrels * Cartridges * Nozzles


|  Privacy   |   Terms   |  Accounts  |

Prices are in Sterling GBP and exclude VAT which is charged on UK orders at checkout. Orders are encrypted on a 128 bit secure server for total security. All personal information and payment details is encrypted on SSL secure website pages. Statements, technical information and recommendations contained herein are based on tests we believe to be reliable but they are not to be construed in any manner as warrantees expressed or implied. The user shall determine the suitability of the product for his intended use and the user assumes all risk and liability whatsoever in connection therewith.

Copyright 2015 Adhesive Dispensing Ltd. All rights reserved.
  128bit SSL Servers


  Support

  Literature
  Cartridges Brochure
  Nozzles Brochure
  Robots Brochure
  Full Catalogue
  Part Numbers List

  Information
  Important Safety Information
  Viscosities Chart

  Contact Us
  Equipment Recommendations
  Request a Quote
  Technical Support
  Applicator Assist

  Shipment of products


Items are now being shipped globally using UPS Express service which is tracked and insured.



  Using these products


Nozzles are designed to work with all industry standard industrial cartridges. Part TSD931-296 is required if using with pre-filled silicone and sealant tubes that feature and external thread nipple to cut. Nozzles are fully compatible with most fluids, adhesives, pastes and gels and useful for high viscosity pastes, sealants, silicones, mastics, solder pastes and compounds.



  Industrial Grade Safe


All nozzles are safe for use up to 100 psi pressure. Nozzles are not for medical use but are precision manufactured for  industrial use.



  Silicone-Free Components


All nozzles are certified silicone-free to prevent contamination of any liquids dispensed from them.
