Home > Components > Cartridges >TS120C-GREEN

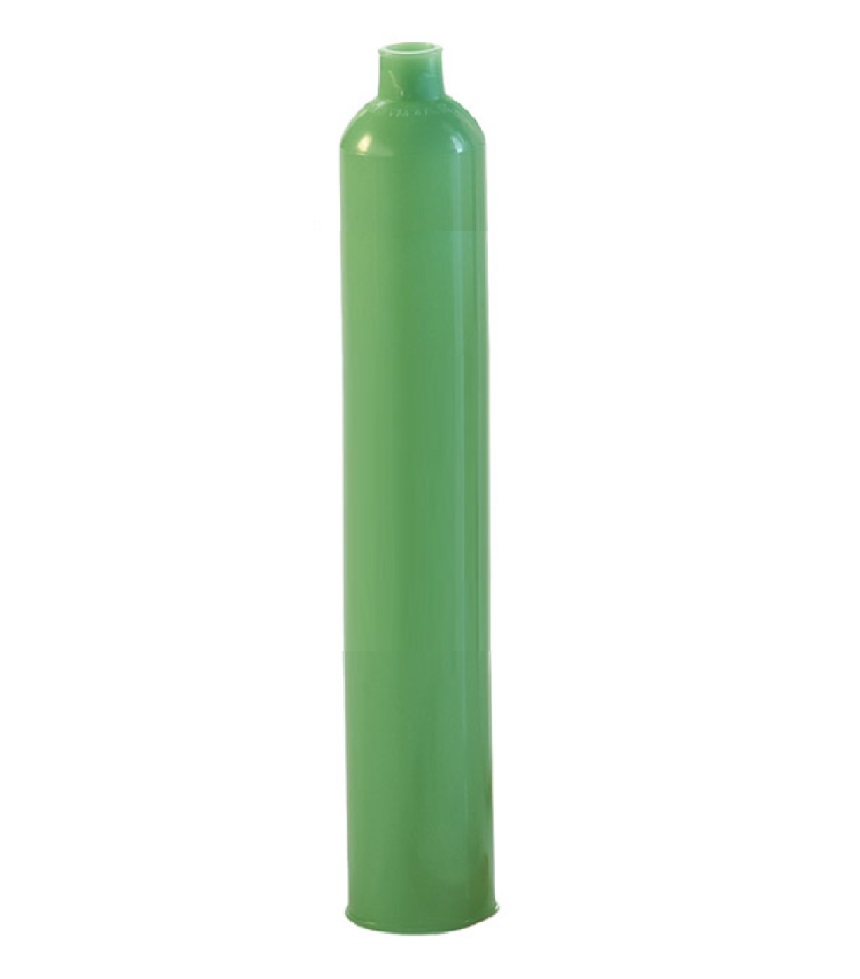

12oz HDPE Green Cartridge Reservoir

Cartridges are manufactured to the very highest possible quality delivering exceptional performance and consistency. From moulding to packaging, cartridges are guaranteed to be free of silicone contaminants and imperfections.

TS120C-GREEN-250 Cartridge 12oz HDPE Adhesive Dispensing Techcon

Cartridge reservoir in high density green colour olyethylene. 12 ounce/ 355cc ml size. Suitable for handling most materials including solvent based fluids and UV cure adhesives.

Suitable for use in cartridge guns or pressurised cartridge retainers and caps. Cartridges feature a 1/4 Inch NPT (6mm) female thread dispensing orifice for secure attachment of nozzles or 1/4 Inch threaded fittings.

Plungers are supplied separate ready to be inserted during cartridge use. All products shipped are in sealed boxes and include label with batch codes.


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

TS120C-GREEN Cartridge

  Lead Time: Ships in 1-2 Weeks

  Summary: Dispensing cartridge for use in manual or air guns, retainers, etc.

Item Pack Price GBP Add
TS120C-GREEN 250   pack


Specifications

Material: Polyethylene (HDPE)
Colour: Green Opaque
Cartridge Length: 313.40mm - 12.34 Inch
Cartridge OD: 42.92mm - 1.69 Inch
Cartridge ID: 40.40mm - 1.59 Inch
Nozzle Connection Type: 1/4 Inch NPT Thread
Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Straight
Description: Cartridge Plunger Kit
Features: Silicone-Free, Industrial Grade
Pack Size: 250

Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications:- Deposits of glues, sealants, adhesives, silicones, solder pastes, fluxes, braze pastes, RTVs, UV cure (use black version), solvents and many other assembly fluids.


Cartridges


  Silicone and chloride free plastics
  Industrial grade safe to 100 psi
  Resistant to aggressive fluids & solvents
  High density mouldings
  1/4 Inch NPT nozzle thread attachment
  Compatible with industry standard guns

Adhesive Dispensing Cartridges Techkits Semkits Nozzles

  Cartridge Retainers Adhesive Dispensing     Syringe barrels   Cartridge guns adhesive dispensing
  Cartridge Retainers     Consumables
Syringes
  Dispensing Applicator Guns

        Techcon Techkit cartridges
  Cartridges & Plungers     Dispensing Nozzles   Techkit Cartridges

  Literature

  Data Sheet
  Full Catalogue
  Syringe Barrels
  Cartridges & Nozzles
  Dispense Tips
  Nozzles Brochure
  Dispense Guns
  Dual Air Guns
  Dual Cartridge & Mixers




More Info Part No.

Specs

Colours Lead Time

Pack

Price GBP Add
Cartridge HDPE Adhesive Dispensing Techcon Semco TS120CKIT TS120CKIT
12oz Cartridge & Plunger Kit
1.59" OD/ 12.34" Long Natural/ Natural 24 Hours 10   pack
Cartridge HDPE Adhesive Dispensing Techcon Semco TS120CP-250 TS120CP-250
12oz Cartridge Plunger Kit
1.59" OD/ 12.34" Long Natural/ Blue 48 Hours 250   pack
Cartridge HDPE Adhesive Dispensing Techcon Semco TS120CPB-250 TS120CPB-250
12oz Cartridge Plunger Kit
1.59" OD/ 12.34" Long Natural/ Black 48 Hours 250   pack
Cartridge HDPE Adhesive Dispensing Techcon Semco TS120C
12oz Cartridge HDPE
1.59" OD/ 12.34" Long Natural 24 Hours 10   pack
Cartridge HDPE Adhesive Dispensing Techcon Semco TS120C-LD-250
12oz Cartridge LDPE
1.59" OD/ 12.34" Long Natural 24 Hours 250   pack
Cartridge HDPE Adhesive Dispensing Techcon Semco TS120C-BLACK TS120C-BLACK-250
12oz Cartridge HDPE
1.59" OD/ 12.34" Long Black 24 Hours 250   pack
Cartridge Plunger Adhesive Dispensing Techcon TS1WP
Cartridge Plunger MDPE 2.5, 6, 8 and 12 Ounce only
1.59" OD Natural 24 Hours 10   pack
Cartridge Plunger Adhesive Dispensing Techcon TS1P
Cartridge Plunger LDPE 2.5, 6, 8 and 12 Ounce only
1.59" OD Blue 24 Hours 10   pack
Cartridge Plunger Adhesive Dispensing Techcon TS1PB
Cartridge Plunger LDPE 2.5, 6, 8 and 12 Ounce only
1.59" OD Black 24 Hours 10   pack
Cartridge Plunger Adhesive Dispensing Techcon TS1WP-RIB
Cartridge Plunger MDPE 2.5, 6, 8 and 12 Ounce only
1.59" OD Natural 24 Hours 10   pack
Cartridge End Cap Flange Seal Adhesive Dispensing TS2C
End Cap LDPE 2.5, 6, 8 and 12 Ounce only
1.59" OD Red 24 Hours 10   pack
TS3P Cartridge Tip Cap Red 1/4" Adhesive Dispensing TS3P
Tip Cap Threaded Seal HDPE
21mm Dia. Red 24 Hours 10   pack
TS3P Cartridge Tip Cap Red 1/4" Adhesive Dispensing TS6P-RED
Tip Cap Threaded Seal HDPE
20mm Dia. Red 24 Hours 10   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS216
Standard Nozzle
2.5" L x 1/16" ID HDPE Natural 24 Hours 10   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS218
Standard Nozzle
2.5" L x 1/8" ID HDPE Natural 24 Hours 10   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS218-LD
Standard Nozzle
2.5" L x 1/8" ID LDPE Natural 24 Hours 50   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS416
Standard Nozzle
4.0" L x 1/16" ID HDPE Natural 24 Hours 10   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS416-LD
Standard Nozzle
4.0" L x 1/16" ID LDPE Natural 24 Hours 50   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS418
Standard Nozzle
4.0" L x 1/8" ID HDPE Natural 24 Hours 10   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS432
Standard Nozzle
4.0" L x 1/32" ID HDPE Natural 24 Hours 10   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS432-LD
Standard Nozzle
4.0" L x 1/32" ID LDPE Natural 24 Hours 50   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS490
Standard Nozzle
4.0" L x 3/32" ID HDPE Natural 24 Hours 10   pack
Nozzle Cartridge Ribbon Spreader Adhesive Dispensing TS1050
Ribbon Spread Nozzle
4.0" L x 0.50" W HDPE Natural 24 Hours 10   pack
Nozzle Cartridge Ribbon Spreader Adhesive Dispensing TS1075
Ribbon Spread Nozzle
4.0" L x 0.75" W HDPE Natural 24 Hours 10   pack
Nozzle Cartridge Ribbon Spreader Adhesive Dispensing TS1100
Ribbon Spread Nozzle
4.0" L x 1.0" W HDPE Natural 24 Hours 10   pack
Nozzle Cartridge Ribbon Spreader Adhesive Dispensing TS1175
Ribbon Spread Nozzle
4.0" L x 1.75" W HDPE Natural 24 Hours 10   pack
