> Home > Guns > Cartridge Guns > TS16 Guns > TS16-120

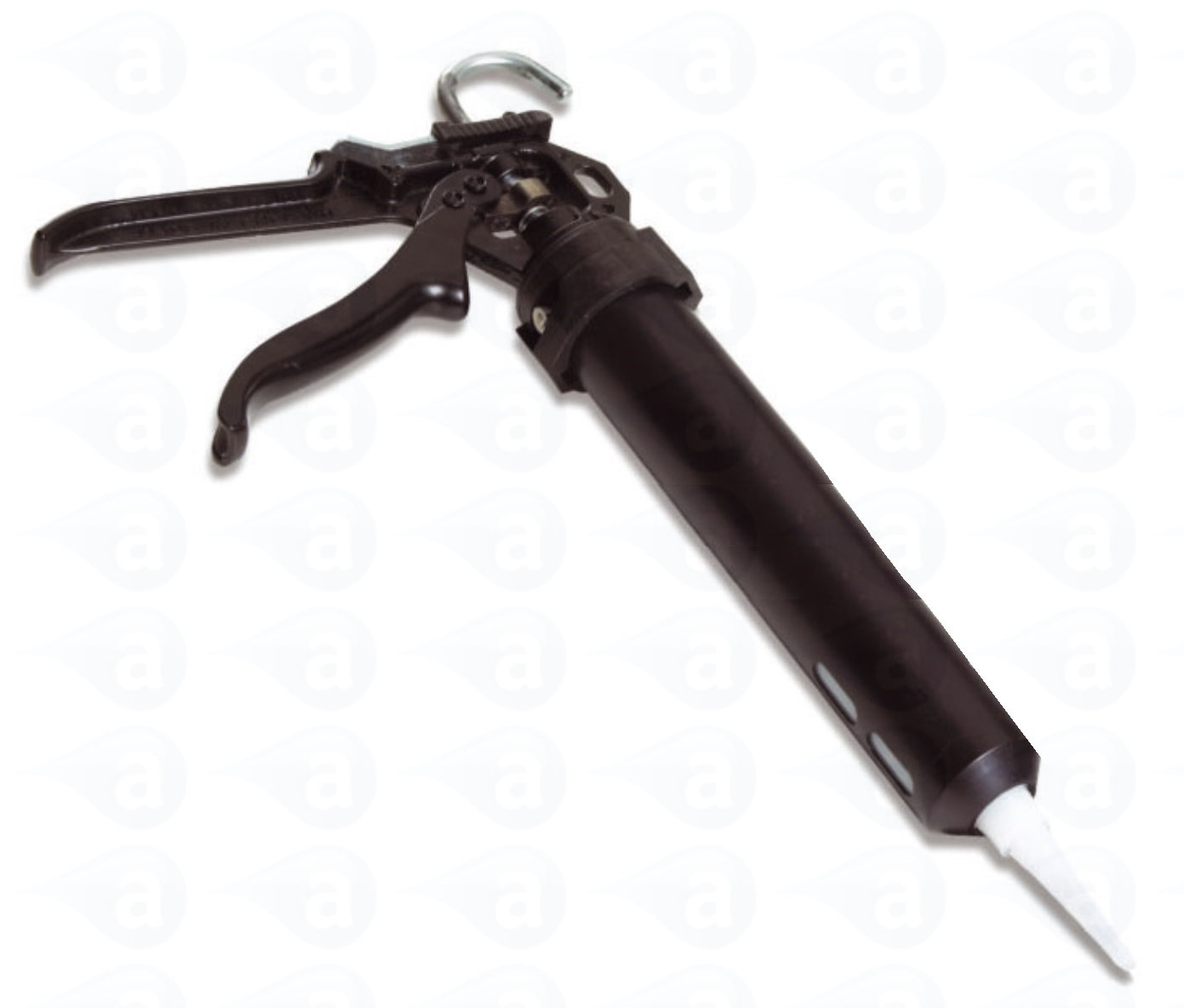

12 Ounce Manual Cartridge Gun Applicator ...
Cartridge gun dispensers are designed for the controlled application of pastes, gels, adhesives and fluids. High quality cartridge gun dispensing systems. Our guns are covered by a one year warranty and supplied with a basic starter component kit. This version gun is for all 12oz size industry cartridge tubes.

TS16 Techcon Manual Cartridge Guns

A high quality manual cartridge gun with quick attach bayonet head and slight reverse rod action to reduce oozing. 12oz size (355cc approx). Suited to controlled lines or potting of most adhesives, fluids, sealants, RTV, grease, gels, long cure or single part epoxies, mastics and potting compounds.

Undo the metal retainer body from the handle on the gun (bayonet fitting). Load in a plastic dispensing cartridge. Ensure the manual metal rod is pulled fully back by twisting the push rod end facing downwards and pulling it back. Replace the metal retainer. Attach a threaded nozzle or use a male luer lock adapter for attachment of any standard needle tips. Squeeze trigger for flow. Release of trigger stops material oozing.

Optional retainer bodies are available to convert this gun to use different cartridge sizes. This gun includes (1) gun, (1) cartridge, (1) plunger, (1) flange cap, (1) tip cap and (1) nozzle, (1) tip adapter and (1) tip. Or select the full gun kit that includes (10) of each part above included with the gun applicator.


TS16-120 Gun TS16 Manual Cartridge Applicator Guns

GBP    each ex. Vat.
Excludes carriage.

Product Code: TS16-120
Lead Time:
Ships Within 24 Hours

Summary: Manual operated applicator gun for use with 12oz cartridges. Gun only.


Product Code Qty Price GBP Add
TS16-120 1   each

AD16-120 Gun Kit AD16 Manual Cartridge Applicator Guns

GBP    each ex. Vat.
Excludes carriage.

Product Code: AD16-120KIT
Lead Time:
Ships Within 72 Hours

Summary: Manual operated applicator gun for use with 12oz cartridges. Gun with cartridge, nozzle, kit.


Product Code Qty Price GBP Add
AD16-120KIT 1   each

Items are shipped in the UK by a courier on a tracked and insured service with products that are available from stock. Items on a longer lead time will be shipped as soon as they are made available.

Warranty: All guns are covered by a 1 (one) Year manufacturers warranty against fault.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

The guns are robust and handle most liquids and pastes dispensed from them. The handle cap uses a hard wearing rubber gasket seal for the retainer that can be replaced after very long periods of use. Gaskets held in stock.

Materials: Steel/Aluminium
Colour: Black
Attachment: Bayonet retainer
Size: 12oz (355ml/ 355cc)
Weight: 500g
.


Typical Applications: Guns are portable and can be used in a factory production or maintenance area, in an assembly department as well as for repair and re-work. Guns are commonly used in the field for repair or maintenance applications.

Common applications include:- Deposits of solder paste, Deposits of solder flux, Grease to bearings, Potting components with epoxy, RTV to edge seams, Silicone shots to bond products, Gasket sealant repair, Aircraft maintenance work, General adhesive applications.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

General Use: Guns are portable and can be used in a factory production or assembly department as well as for repair and re-work. Guns are commonly used in the field for repair or maintenance applications.

Common Applications:- Dots and beads of solder paste, Dots and beads of solder flux, Grease to bearings, PVA glue to furniture joints, RTV to seal seams, Silicone dots to bond products, Gasket sealant repair, Shots of roach insecticides, General adhesive applications.

Cartridge Plunger Kits

Lead Time: Ships Within 24 Hours

Full range of plastic cartridge and plunger kits to fit all manual guns. Each kit includes the same number of (10) cartridges and (10) plungers in the pack. Industrial grade and silicone free plastic parts compatible with adhesives & sealants. Read more...

Code Size Price GBP Add

TS25CKIT

2.5oz   pack

TS60CKIT

6oz   pack

TS80CKIT

8oz   pack

TS110CKIT

10oz   pack

TS120CKIT

12oz   pack

Dispensing Nozzles

Lead Time: Ships Within 24 Hours

A wide range of plastic nozzles with 1/4" NPT thread for leak free attachment to cartridges. Select by nozzle length & hole outlet size. In sealed packs of (10) nozzles, direct from stock. Read more...

Code Size Price GBP Add

TS216

2.5" L x 1/16"   pack

TS218

2.5" L x 1/8"   pack

TS416

4" L x 1/16"   pack

TS418

4" L x 1/8"   pack

TS616

6" L x 1/16"   pack

TS618

6" L x 1/8"   pack

      Cartridge HDPE Adhesive Dispensing Techcon Semco   Adhesive Dispensing Nozzle Cartridge Techcon Semco
  12oz Pneumatic Cartridge Gun     12oz Cartridge Plunger Kit   TS216 1/16" ID 2.5" L Nozzle

  Gun Only or With Kit
  Handles 12 Ounce Industrial Cartridges
  Controlled Shot Deposits or Beads
  Lightweight yet Robust Construction
  Quick Bayonet Attachment
  Low Cost Portable Dispensing Solutions
