Home > Components > Cartridges >TS20C




20oz HDPE Cartridge Reservoir

Cartridges are manufactured to the very highest possible quality delivering exceptional performance and consistency. From moulding to packaging, cartridges are guaranteed to be free of silicone contaminants and imperfections.

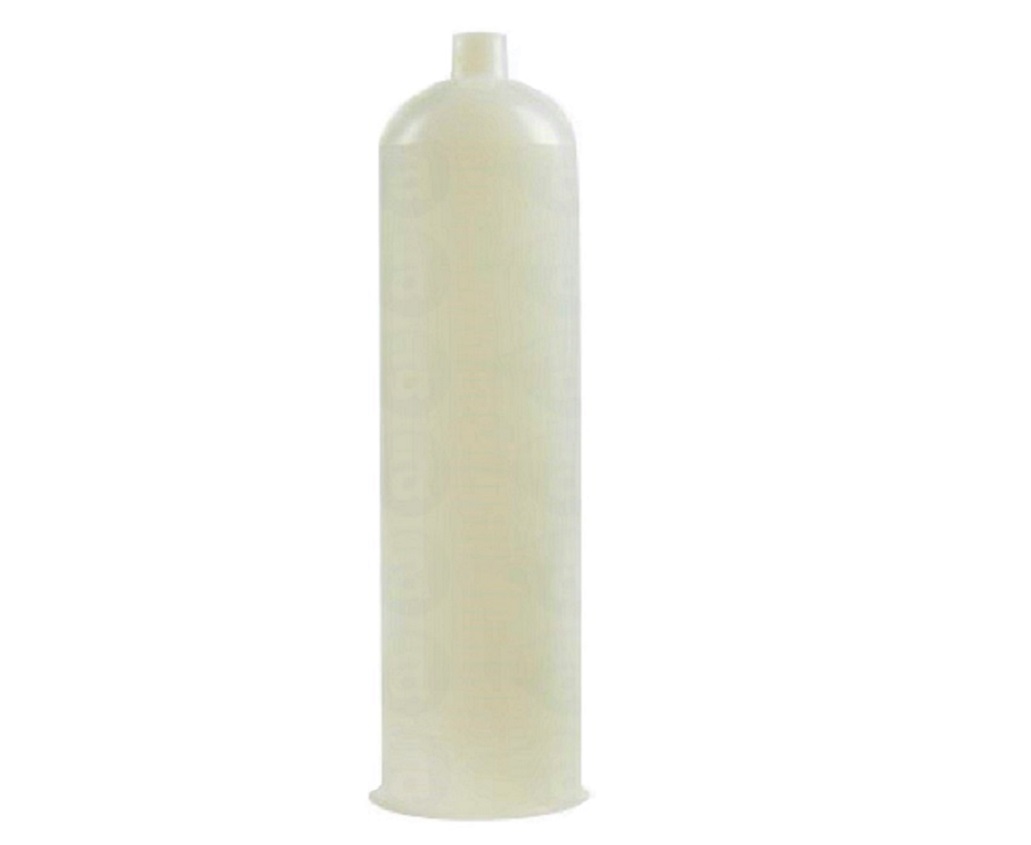

TS20C 20oz HDPE Cartridge Natural Adhesive Dispensing Techcon

Cartridge reservoir in high density polyethylene. 20 ounce/ 591cc ml size. Suitable for handling most materials including solvent based fluids.

Suitable for use in cartridge guns or pressurised cartridge retainers and caps. Cartridges feature a 1/4 Inch NPT (6mm) female thread dispensing orifice for secure attachment of nozzles or 1/4 Inch threaded fittings.

All products shipped are in sealed boxes and include label with batch codes.


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

TS20C Cartridge

  Lead Time: Ships Within 24 Hours

  Summary: Dispensing cartridge in natural HDPE material with nozzle thread.

Item Pack Price GBP Add
TS20C 10   pack
TS20C-100 100   pack


Specifications

Material: Polyethylene HDPE
Colour: Natural
Cartridge Length: 249.40mm - 9.82 Inch
Cartridge OD: 67.80mm - 2.67 Inch
Cartridge ID: 65.30mm - 2.57 Inch
Nozzle Connection Type: 1/4 Inch NPT Thread
Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Straight
Description: Cartridge Reservoir
Features: Silicone-Free, Industrial Grade
Pack Sizes: 10 or 100

Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications:- Deposits of glues, sealants, adhesives, silicones, solder pastes, fluxes, braze pastes, RTVs, UV cure (use black version), solvents and many other assembly fluids.


Cartridges


  Silicone and chloride free plastics
  Industrial grade safe to 100 psi
  Resistant to aggressive fluids & solvents
  High density mouldings
  1/4 Inch NPT nozzle thread attachment
  Compatible with industry standard guns
  Supplied in sealed packs
  Labels with batch codes
  Use with manual or pneumatic dispensers

Adhesive Dispensing Cartridges Techkits Semkits Nozzles

  Cartridge Retainers Adhesive Dispensing       Cartridge guns adhesive dispensing
  Cartridge Retainers     Dispensing Nozzles   Dispensing Applicator Guns


  20 Ounce Wiper Plungers     20 Ounce Flange Cap Seal   Universal Tip Cap Seal

  Literature

  Full Catalogue
  Syringe Barrels
  Cartridges & Nozzles
  Dispense Tips
  Nozzles Brochure
  Dispense Guns
  Dual Air Guns
  Dual Cartridge & Mixers

This product ships direct from stock


More Info Part No.

Specs

Colours Lead Time

Pack

Price GBP Add
Cartridge HDPE Adhesive Dispensing Techcon Semco TS20CKIT TS20CKIT
20oz Cartridge HDPE
2.67" OD/ 9.82" Long Natural/ White 24 Hours 10   pack
Cartridge HDPE Adhesive Dispensing Techcon Semco TS20C-BLACK TS20C-BLACK-100
20oz Cartridge HDPE
2.67" OD/ 9.82" Long Black 24 Hours 100   pack
Cartridge HDPE Adhesive Dispensing Techcon Semco TS20CP-100 TS20CP-100
20oz Cartridge Plunger Kit
2.67" OD/ 9.82" Long Natural/ Clear 24 Hours 100   pack
Cartridge Plunger Adhesive Dispensing Techcon TS20P TS20P
Cartridge Plunger 20 and 32 Ounce only
2.57" OD White 24 Hours 10   pack
Cartridge Plunger Adhesive Dispensing Techcon TS20PLD-100 TS20P-LD
Cartridge Plunger 20 and 32 Ounce only
2.57" OD Natural 24 Hours 10   pack
Cartridge End Cap Flange Seal Adhesive Dispensing TS6C TS6C
End Cap LDPE 20 and 32 Ounce only
2.67" OD Red 24 Hours 10   pack
TS3P Cartridge Tip Cap Red 1/4" Adhesive Dispensing TS3P
Tip Cap Threaded Seal HDPE
21mm Dia. Red 24 Hours 10   pack
TS3P Cartridge Tip Cap Red 1/4" Adhesive Dispensing TS6P-RED
Tip Cap Threaded Seal HDPE
20mm Dia. Red 24 Hours 10   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS216
Standard Nozzle
2.5" L x 1/16" ID HDPE Natural 24 Hours 10   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS218
Standard Nozzle
2.5" L x 1/8" ID HDPE Natural 24 Hours 10   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS218-LD
Standard Nozzle
2.5" L x 1/8" ID LDPE Natural 24 Hours 50   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS416
Standard Nozzle
4.0" L x 1/16" ID HDPE Natural 24 Hours 10   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS416-LD
Standard Nozzle
4.0" L x 1/16" ID LDPE Natural 24 Hours 50   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS418
Standard Nozzle
4.0" L x 1/8" ID HDPE Natural 24 Hours 10   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS432
Standard Nozzle
4.0" L x 1/32" ID HDPE Natural 24 Hours 10   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS432-LD
Standard Nozzle
4.0" L x 1/32" ID LDPE Natural 24 Hours 50   pack
Adhesive Dispensing Nozzle Cartridge Techcon Semco TS490
Standard Nozzle
4.0" L x 3/32" ID HDPE Natural 24 Hours 10   pack
Nozzle Cartridge Ribbon Spreader Adhesive Dispensing TS1050
Ribbon Spread Nozzle
4.0" L x 0.50" W HDPE Natural 24 Hours 10   pack
Nozzle Cartridge Ribbon Spreader Adhesive Dispensing TS1075
Ribbon Spread Nozzle
4.0" L x 0.75" W HDPE Natural 24 Hours 10   pack
Nozzle Cartridge Ribbon Spreader Adhesive Dispensing TS1100
Ribbon Spread Nozzle
4.0" L x 1.0" W HDPE Natural 24 Hours 10   pack
Nozzle Cartridge Ribbon Spreader Adhesive Dispensing TS1175
Ribbon Spread Nozzle
4.0" L x 1.75" W HDPE Natural 24 Hours 10   pack
TS918-20CS
Cartridge Retainer Kit
Retainer body, air cap, hose Black 72 Hours 1   each
