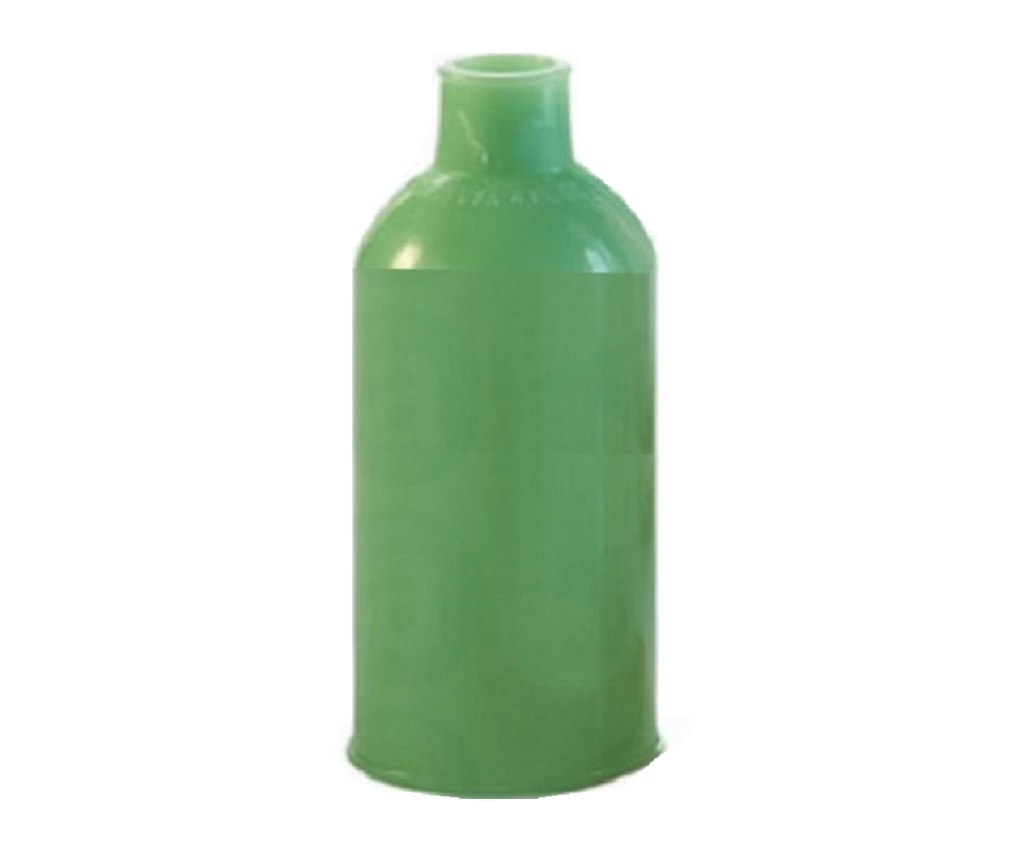

75ml (2.5oz) Green High Density
Cartridge Reservoir
TS25C-GREEN 2.5oz HDPE Cartridge Adhesive Dispensing Techcon

Cartridges are manufactured to the very highest possible quality delivering exceptional performance and consistency. cartridges are guaranteed to be free of silicone contaminants and imperfections. This 2.5oz size cartridge is high density polyethylene (HDPE) and compatible with manual & pneumatic dispensing guns.

Cartridge reservoir in high density polyethylene (HDPE).  Green colour. 2.5 ounce/ 75cc ml size.  Suitable for handling most materials including solvent based fluids.  1.69" outer diameter by 4.00" long.  Suitable for use in manual or pneumatic cartridge guns or pressurized cartridge retainers and air caps.  All cartridges are industrial grade safe up to 100 psi and are certified silicone-free.

Cartridges plungers caps techcon



These cartridges are supplied in sealed box of 500 parts. Disposable plastic cartridges are also available in 6, 8, 12, 20, 32 oz. (approximate metric value 177, 237, 355, 591, 960cc) and 1/10th gallon capacities.

In high-density green polyethylene. All cartridges feature a 1/4" NPT (6mm) female thread dispensing orifice for secure attachment of nozzles or 1/4" threaded fluid fittings.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Material

Colour

Capacity

Length

Diameter

Nozzle Thread


High Density Polyethylene

Green

2.5oz (75ml)

4.00" 1.69" OD 1/4" NPT



Product Pages

These components are certified silicone freeThese components are industrial grade safe

  Silicone and chloride free plastics
  Industrial grade safe to 100 psi
  Resistant to aggressive fluids and solvents
  High density quality moulding
  1/4" NPT nozzle thread
  Compatible with industry standard guns
  Ships by tracked courier

Pack

Part Code

Lead Time

Price

Add

500 TS25C-GREEN Usually 1-2 weeks   per pack
