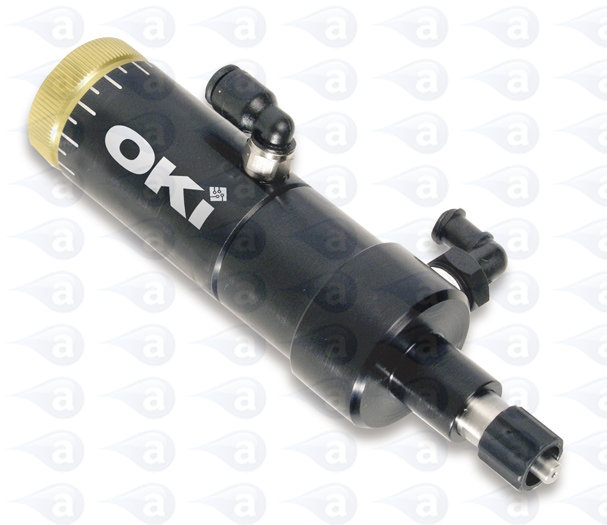

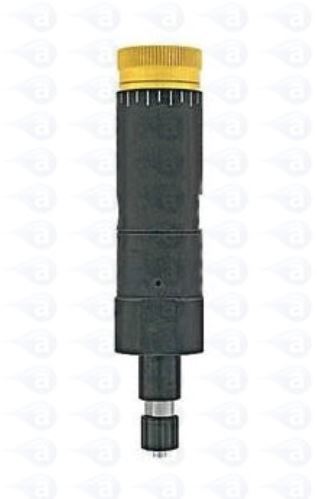

Precision Needle Valve TS5420

TS5420 Needle Valve Adhesive Dispensing Techcon

High speed dispensing valve for making micro dots of adhesives, inks, solvents and other fluids. The inner needle shuts off near the tip end which improves control and eliminates drips. Use this valve with a standard pneumatic timed controller.


A precision dosing valve that uses a needle assembly to dispense precise dots or very fine beads of low to medium viscosity adhesives and fluids such as anaerobics, activators, inks, gels, solvents, lubricants, chemicals and UV's.  Needle seal at tip end prevents dead space for very fast shut off when dispensing micro dots without drips. Suited to repeat deposits, controlled lines or potting of grease, gels, UV cure, solvents and inks.

This needle valve is designed to apply micro shots without drips. The valve design is vertical with fluid flow from the side either by syringe, cartridge or fluid line feed (from pressure pot).  Always use black fluid lines or feed tubing with any UV cure adhesives.



All valves are shipped with a luer lock fluid elbow fitting, airline hose with male quick connect, mounting attachment, tip cap end seal, selection of dispensing tips and user guide. Valves are supplied with a 1 Year warranty. Do not use this valve for reactive adhesives and fluids such as Cyanoacrylates.


Suitable for...
Make dots of adhesives Adhesives
Make beads of adhesives Gels
Potting of components Solvents
Bonding of components Anaerobics
Sealing of components UV Cure
Dispense lubricants and greases Lubricants
Chemicals
Inks

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Materials

Size

Weight

Viscosity Range

Repeatability Cycle Rate

Flow Rate



303 Stainless Steel, Anodise Aluminium, Teflon Seals

111.8mm L
x 28.5mm Diameter

4.8oz

1 - 100,000 CPS

+/- 0.3%

Up to 500 cycles/ min

900ml/min @ 100 psi


Min. Shot Size

Mounting

Air Press

Max Fluid Press

Material Inlet Material Out

Colour



0.003 cc/ ml

1/4" 20UNC-2B 70 psi (4.8 bar) min.

300 psi (21 Bar)

1/8" NPT

Male Luer Lock Black

Quantity

Part Code

Lead Time

Price

Buy


1 TS5420 Usually 24-72 Hours GBP  each



Product Pages




  Ideal for UV cure, solvents,
  Fast positive shut off for micro dots
  Zero dead fluid volume
  Repeat deposits, lines or potting
  Adjustable stroke control for fine tuning
  Syringe feed, cartridge or pressure pot
  Supplied with input fitting, fluid lines and tip kit
  Easy bench mount, machine mount or robot mount
  Simple to control using TS500R, TS250 or TS350
