TS5520 Precision Spray Valve

These precision spray valves apply low to medium viscosity liquids without excessive mess or waste. Using low pressure and low volume, they can be adjusted from a jet to a fine mist. Used with the TS500R digital valve controller for fully automated or manual operator controlled applications.

TS5520 Spray Valve Adhesive Dispensing Techcon
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

The TS5520 spray valve provides precise, consistent coating of low to medium viscosity fluids, including lubricants (oil and grease), activators and inks. Micro-litre to millilitre amounts can be reliably dispensed in round patterns with diameters ranging from 1/4 to 3.0 inches (6.35 to 76.2 mm).

The combination of adjustable fluid flow, adjustable nozzle air and post-air cut-off provides excellent spray control. Precision-machined components with spring loaded Teflon packings ensure many millions of trouble-free cycles. Compact spray valve with round spray pattern nozzle for controlled precision spraying, bonding, marking or lubricating. Spray Valves are designed for precise spray applications of low to medium viscosity materials.

An external stroke control makes it easy to fine-tune fluid flow. Total control of the spray cycle is provided by adjustable fluid flow and precise control of pre-spray, atomizing air and post-spray with the TS500R controller. Normal maintenance is simple and downtime is virtually eliminated with only one seal to replace.

Operation - Input air pressure acts on the piston that retracts the stainless steel precision needle from the nozzle, allowing liquid to flow. Simultaneously, low volume low pressure air flows around the nozzle, dispersing the liquid into fine droplets. At the end of the cycle, the needle moves to stop the fluid flow, while air continues for a few milliseconds to ensure that the nozzle is cleaned of all fluids, providing positive spray cut-off.

NOZZLE SIZE
0.046 Inch
(1.17mm)

DISTANCE FROM SPRAYED SURFACE

1.0"
25.4mm
2.0"
50.8mm
3.0"
76.2mm
4.0"
102mm
5.0"
127mm
6.0"
152mm
12.0"
304mm

SPRAY AREA COVERAGE

0.25"
6.35mm
0.50"
12.7mm
0.75"
19mm
1.0"
25.4mm
1.25"
31.7mm
1.5"
38.1mm
3.0"
76.2mm

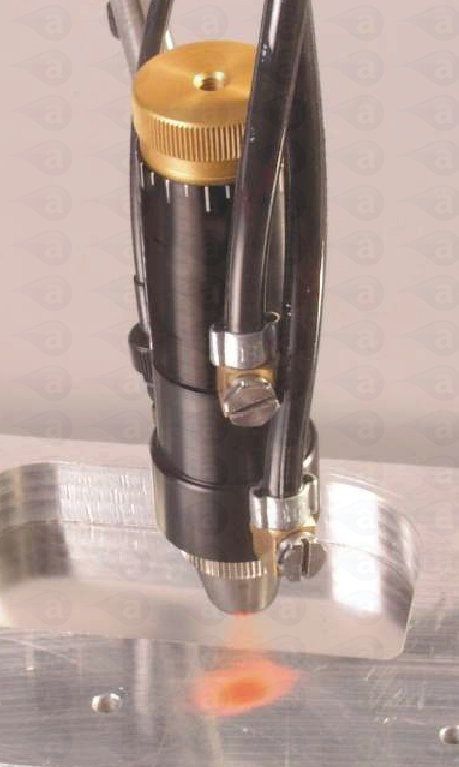

TS5520 Spray Valve Techcon Adhesive Dispensing
TS5520 Specifications

Wetted Parts: Stainless Steel, Teflon, Aluminium
Body Material: Aluminium
Valve Body Colour: Black
Size: 107mm L x 28.5mm Diameter
Valve Weight: 136 Gram
Nozzle: Round Cone Pattern 0.046 Inch (1.17mm)
Fluid Viscosity Range: 1 to 1,000 CPS

Repeatability: +/- 0.56%
Cycle Rate: Up to 600 cycles/ minute
Flow Rate: 1680ml/ minute (water) @ 100 psi
Minimum Shot Size: 0.014cc/ ml
Maximum Fluid Pressure: 100 psi
Activation Air Pressure: Minimum 70psi
Material Inlet Thread Size: 1/8 Inch NPT

Material Outlet Thread Size: Spray Nozzle
Mounting Hole Thread Size: 1/4-20UNC-2B
Fluid Flow Path: Straight
Warranty: 1 Year

More Info Part Code

Specs

Body Lead Time

Qty

Price GBP Add
Precison spray valve.
TS5520
Spray Valve
0.046 Inch Round Pattern Nozzle Aluminium 72 Hours 1   each
More Info Part Code

Specs

Type Lead Time

Qty

Price GBP Add
Digital spray valve controllers.
TS500R
Spray Valve Controller
LCD Display Timer Memory 24 Hours 1   each
TS560R Digital Valve Controller Techcon TS560R
Spray Valve Controller
Touch Screen Ethernet, WiFi 2-3 Weeks 1   each
More Info Part Code

Specs

Body Lead Time

Qty

Price GBP Add
Pressure Pots compatible with this spray valve and controllers.
TS2220 Pressure Pot 2 Litre Adhesive Dispensing TS2220
Pressure Pot
2 Litre
0-75 PSI Regulator
Stainless Steel 24 Hours 1   each
TS2250 Pressure Pot 5 Litre Adhesive Dispensing TS2250
Pressure Pot
5 Litre
0-75 PSI Regulator
Stainless Steel 24 Hours 1   each
TS1258 Pressure Pot 5 Litre Adhesive Dispensing TS1258
Pressure Pot
5 Litre
0-100 PSI Regulator
Aluminium 1-2 Weeks 1   each
TS2210LS Pressure Pot 10 Litre Adhesive Dispensing TS2210LS
Pressure Pot
10 Litre
0-75 PSI Regulator
Stainless Steel 72 Hours 1   each
More Info Part Code

Specs

Body Lead Time

Qty

Price GBP Add
Spares for Spray Valves
5520-SEALKIT
Seal Kit
Spares maintenance kit for TS5520 Repair Kit 72 Hours 1   each
5520-VALVEKIT
Main Kit
Spares maintenance kit for TS5520 Repair Kit 24 Hours 1   each
Luer lock elbow threaded fitting adhesive dispensing TSD931-75
Replacement Fluid Input Elbow Fitting
Black colour fitting 1/8 Inch Thread Polypro 24 Hours 5   pack
Luer lock elbow threaded fitting adhesive dispensing TSD931-54PE
Replacement Fluid Input Elbow Fitting
White colour fitting 1/8 Inch Thread Polypro 24 Hours 5   pack
Luer lock elbow threaded fitting adhesive dispensing TSD931-54PP
Replacement Fluid Input Elbow Fitting
White colour fitting 1/8 Inch Thread Polypro 24 Hours 5   pack
TSD126-318BPK TSD126-318BPK
Replacement Fluid Line Feed Tube
Black colour tubing 18 Inch Long Polyethylene 24 Hours 10   pack
TSD126-324BPK TSD126-324BPK
Replacement Fluid Line Feed Tube
Black colour tubing 24 Inch Long Polyethylene 24 Hours 10   pack
TSD126-336BPK TSD126-336BPK
Replacement Fluid Line Feed Tube
Black colour tubing 36 Inch Long Polyethylene 24 Hours 10   pack
Fluid line feed tubing adhesive dispensing TSD126-318PK TSD126-318PK
Replacement Fluid Line Feed Tube
Clear colour tubing 18 Inch Long Polyethylene 24 Hours 10   pack
Fluid line feed tubing adhesive dispensing TSD126-324PK TSD126-324PK
Replacement Fluid Line Feed Tube
Clear colour tubing 24 Inch Long Polyethylene 24 Hours 10   pack
Fluid line feed tubing adhesive dispensing TSD126-336PK TSD126-336PK
Replacement Fluid Line Feed Tube
Clear colour tubing 36 Inch Long Polyethylene 24 Hours 10   pack

Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications:- Spray deposits of oils, inks, lubricants, conformal coatings, solvents, primers and more.
