Air Operated UHMW Diaphragm Valve

The TS5600 series general purpose diaphragm valves are ideal for making controlled deposits of most low to medium viscosity liquids. The wetted parts are made from UHMW or PTFE for low maintenance handling of reactive adhesives such as anaerobics and cyanoacrylates.

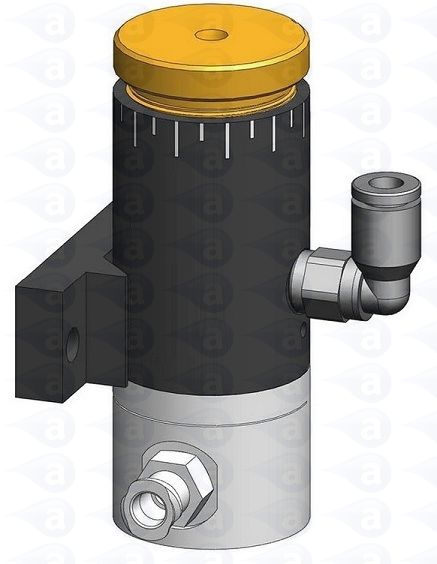

TS5620HU Diaphragm Valve Adhesive Dispensing

The TS5600 Series dispense valves accurately control the application of most low to medium viscosity fluids without drips. The unique seal-less design incorporates an inert polymer diaphragm that isolates the actuator from the valve.

The adjustable open/close stroke 0.13mm to 0.64mm (0.005 Inch to 0.025 Inch) allows for a very fast response with positive shutoff. Wetted components are made of inert plastics.

Takes a direct feed from any
pressure pot, cartridge or syringe and includes a selection of flexible fluid line tubing and connectors.

Valve open time can be as short as 15 milliseconds. Model TS5620HU with UHMW * polymer wetted parts is used for dispensing solvents, cyanoacrylates, anaerobics and fluxes. Simple to use with
TS500R, TS250, TS350 digital timed controllers.
* Ultra High Molecular Weight polyethylene.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

TS5620HU UHMW Horizontal Air Valve
GBP   each ex. Vat.
Excludes Carriage.
Lead Time:
Usually Ships 72 Hours

Summary: Diaphragm valve with horizontal design. Adhesive or liquid is fed under pressure to the top of the fluid housing, the diaphragm opens to allow flow to the tip from the bottom. Adjustable stroke control for fine tuning. UHMW head and diaphragm. Make rapid dots or controlled beads. For Cyanoacrylates, primers, solvents, inks, oils, anaerobics. Comes with airline hose and fittings kit. Use with any pressure pot or cartridge system.

Item Qty Price GBP Add
TS5620HU 1   each

TS5620HU Specifications

Wetted Parts: UHMW, Teflon
Fluid Housing Head Colour: White
Size: 61mm L x 24mm Diameter
Valve Weight: 59 Gram
Fluid Viscosity Range: 1 to 50,000 CPS

Repeatability: +/- 0.30%
Cycle Rate: Up to 500 cycles/ minute
Flow Rate: 3432ml/Min (water) @ 100 psi
Minimum Shot Size: 0.0075cc/ ml
Maximum Fluid Pressure: 100 psi
Activation Air Pressure: Minimum 70psi
Material Inlet Thread Size: 1/4-28" UNF

Material Outlet Thread Size: 1/4-28" UNF
Mounting Hole Thread Size: 10-32" UNF
Body Material: Aluminium

Valve Body Colour: Black
Fluid Flow Path: Straight
Warranty: 1 Year
