Air Operated Delrin Diaphragm Valve

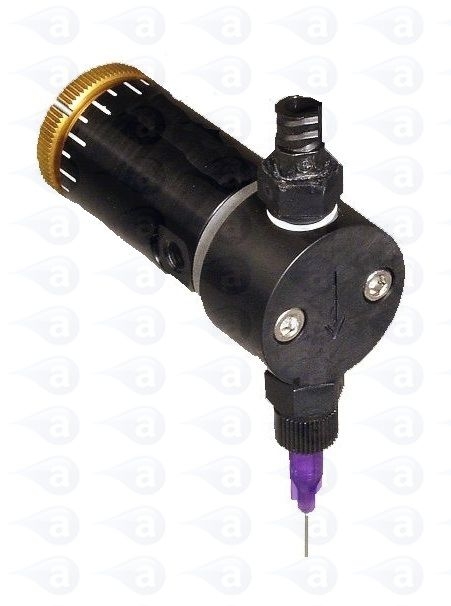

TS5621HD Diaphragm Dispensing Valve Techcon

The TS5600 series general purpose diaphragm valves are ideal for making controlled deposits of most low to medium viscosity liquids. The wetted parts are made from Delrin and PTFE for low maintenance handling of UV cure adhesives and anaerobics.


The TS5600 Series dispense valves accurately control the application of most low to medium viscosity fluids without drips. The unique seal-less design incorporates an inert polymer diaphragm that isolates the actuator from the valve. The adjustable open/close stroke 0.13 to 0.64 mm (0.005" to 0.025") allows for a very fast response with positive shutoff. Wetted components are made of inert plastics.

Valve open time can be as short as 15 milliseconds. Model TS5621HD with Delrin wetted parts is used for dispensing solvents, UV cure, anaerobics and fluxes. Simple to use with TS500R, TS250, TS350 digital timed controllers. Takes a direct feed from any pressure pot, cartridge or syringe and includes a selection of flexible fluid line tubing and connectors. Black fluid lines and fittings are supplied for use with UV cure adhesives.


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.



Specifications

  Part ID: TS5621HD

  Materials: Delrin, Teflon
  Size: 61mm L x 24mm Dia.
  Weight: 59g (0.13lb)
  Viscosity Range: 1 - 50,000 CPS
  Repeatability: 0.30%
  Cycle Rate: Up to 500 cycles/ minute
  Flow Rate (water): 3432ml/minute @ 70 psi
  Min Shot Size: 0.0075 cc/ ml
  Max Fluid Pressure: 70 psi ( 5 Bar)
  Activation Pressure: 70 psi (4.8 bar) minimum
  Material Inlet: 1/4-28 UNF
  Material Outlet: 1/8 NPT
  Mounting: 10-32 UNF
  Warranty: 1 Year
  Lead Time: Usually 48-72 Hours
Part ID Pack

Description

Price

Buy
TS5621HD 1 Diaphragm Valve    each

Dispensing Valves

TS5621HD Diaphragm Valve

  Ideal for UV cure and anaerobics
  High precision solution supplied complete
  Repeat dots, lines or potting of most liquids
  Adjustable stroke control for fine tuning of flow
  Syringe feed, cartridge feed or pressure pot
  Supplied with fluid lines and tip kit
  Easy bench mount, machine mount or robot mount
  Simple to control using TS500R, TS250 or TS350
