Air Operated Stainless Steel Diaphragm Valve

The TS5600 series general purpose diaphragm valves are ideal for making controlled deposits of most low to medium viscosity liquids. The wetted parts are made from UHMW and Stainless Steel for zero maintenance handling of UV cure, resins and lacquers.

TS5622VU-DVD Diaphragm Valve Adhesive Dispensing

The TS5600 Series dispense valves accurately control the application of most low to medium viscosity fluids without drips.

The unique seal-less design incorporates an inert polymer diaphragm that isolates the actuator from the valve.

The adjustable open/close stroke 0.13 to 0.64 mm (0.005 Inch to 0.025 Inch) allows for a very fast response with positive shutoff.

A stainless steel fluid housing is compatible with a variety of chemicals; especially UV cure, resins and lacquers used in the manufacture of DVDs and CDs.

Valve open time can be as short as 15 milliseconds.


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

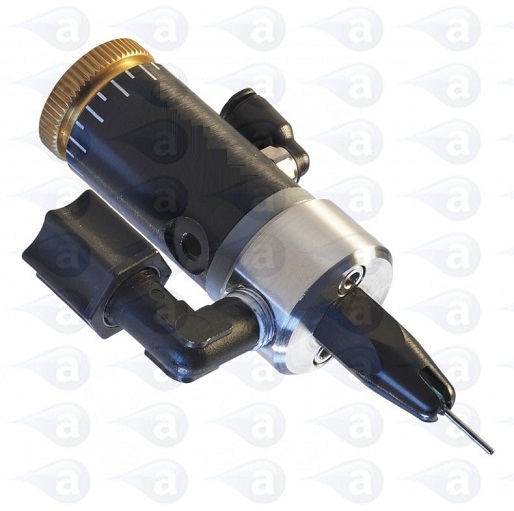

TS5622VU-DVD UHMW Air Valve TS5622VU-DVD diaphragm dispensing valve
GBP   each ex. Vat.
Excludes Carriage.
Lead Time:
Usually Ships 72 Hours

Summary: Diaphragm valve with vertical design. Adhesive or liquid is fed under pressure to the side of the fluid housing, the diaphragm opens to allow flow to the tip from the bottom. Adjustable stroke control for fine tuning. Teflon head and diaphragm. Make rapid dots or controlled beads. For UV Cure, resins and lacquers. Comes with airline hose and fittings kit.

Item Qty Price GBP Add
TS5622VU-DVD 1   each

TS5622VU-DVD Specifications

Wetted Parts: UHMW, Teflon, Stainless Steel
Fluid Housing Head Colour: White
Size: 76mm L x 27mm Diameter
Valve Weight: 138 Gram
Fluid Viscosity Range: 1 to 50,000 CPS

Repeatability: +/- 0.30%
Cycle Rate: Up to 500 cycles/ minute
Flow Rate: 3432ml/Min (water) @ 100 psi
Minimum Shot Size: 0.0075cc/ ml
Maximum Fluid Pressure: 100 psi
Activation Air Pressure: Minimum 70psi
Material Inlet Thread Size: 1/8" NPT

Material Outlet Thread Size: 1/4-28" UNF
Mounting Hole Thread Size: 10-32" UNF
Body Material: Stainless Steel

Valve Body Colour: Silver
Fluid Flow Path: 90 Degrees
Warranty: 1 Year

More Info Part Code

Description

Specs Lead Time Pack Price GBP Add
Dispense Valve setup. Air operated valves work with our range of digital controller units including the TS250 below. Fluid can be fed to the valve from our range of pressure pots such as the 1/2 Litre and 2 Litre below.
TS250 TS250
Digital Valve Contoller
0-100 PSI
0.02-60 Second Timer, I/O port for automation 110/ 220V Power 24 Hours 1   each
TS2220 TS2220
Pressure Pot 2 Litre
0-75 PSI
120mm W x 177mm H Stainless Steel 24 Hours 1   each
More Info Part Code

Description

Specs Lead Time Pack Price GBP Add
Spares and Accessories. Replacement wetted parts below are available to ensure the diaphragm valve operates as new. Easy to replace and provides reliable and consistent performance.
TS5622 valve adhesive dispensing techcon 5620TFE-DKIT
Replacement Diaphragm Disc Kit
Grey colour with spares kit PTFE Teflon 24 Hours 1   each
TS5622 valve adhesive dispensing techcon 5620UHMW-DKIT
Replacement Diaphragm Disc Kit
White colour with spares kit UHMW 24 Hours 1   each
TS5622 valve adhesive dispensing techcon 5620-000-011
Replacement Diaphragm Disc Only
Grey colour disc part only PTFE Teflon 24 Hours 1   each
TS5622 valve adhesive dispensing techcon 5620-000-002
Replacement Diaphragm Disc Only
White colour disc part only UHMW 24 Hours 1   each
More Info Part Code

Description

Specs Lead Time Pack Price GBP Add
Fluid Fittings and Fluid Lines. Used on valves and pressure pots, these components provide a leak free link using the convenient luer lock design attachment. Quick disconnect parts.
Luer lock elbow threaded fitting adhesive dispensing TSD931-75
Replacement Fluid Input Elbow Fitting
Black colour fitting 1/8" Thread Polypro 24 Hours 5   pack
Luer lock elbow threaded fitting adhesive dispensing TSD931-54PE
Replacement Fluid Input Elbow Fitting
White colour fitting 1/8" Thread Polypro 24 Hours 5   pack
Luer lock elbow threaded fitting adhesive dispensing TSD931-54PP
Replacement Fluid Input Elbow Fitting
White colour fitting 1/8" Thread Polypro 24 Hours 5   pack
Male Luer Lock Threaded Fitting Adhesive Dispensing TSD931-49
Replacement Fluid Tip Adapter Fitting
White male luer to 1/4-28 Thread Nylon 24 Hours 5   pack
Male Luer Lock Threaded Fitting Adhesive Dispensing TSD931-91
Replacement Fluid Tip Adapter Fitting
Black male luer to 1/4-28 Thread Delrin 24 Hours 5   pack

TSD126-318BPK TSD126-318BPK
Replacement Fluid Line Feed Tube
Black colour tubing 18 Inch Long Polyethylene 24 Hours 10   pack
TSD126-324BPK TSD126-324BPK
Replacement Fluid Line Feed Tube
Black colour tubing 24 Inch Long Polyethylene 24 Hours 10   pack
TSD126-336BPK TSD126-336BPK
Replacement Fluid Line Feed Tube
Black colour tubing 36 Inch Long Polyethylene 24 Hours 10   pack
Fluid line feed tubing adhesive dispensing TSD126-318PK TSD126-318PK
Replacement Fluid Line Feed Tube
Clear colour tubing 18 Inch Long Polyethylene 24 Hours 10   pack
Fluid line feed tubing adhesive dispensing TSD126-324PK TSD126-324PK
Replacement Fluid Line Feed Tube
Clear colour tubing 24 Inch Long Polyethylene 24 Hours 10   pack
Fluid line feed tubing adhesive dispensing TSD126-336PK TSD126-336PK
Replacement Fluid Line Feed Tube
Clear colour tubing 36 Inch Long Polyethylene 24 Hours 10   pack
More Info Part Code

Description

Specs Lead Time Pack Price GBP Add
Precision Dispensing Tips. Used on valves and pressure pots, these components provide a leak free link using the convenient luer lock attachment. Tips to handle adhesives and most other liquids.
DCK600 DCK600
Assorted Luer Lock Tip Kit in Box
145 Assorted TE, TTN, PP, TLC 24 Hours 1   each
5125TLCS 5125TLCS
Teflon Lined Crimped Tip Pink Hub
0.30mm ID, 12.7mm Length Teflon 24 Hours 50   pack
3118PPS-B 3118PPS-B
Flexible Polypro Tip Green Hub
0.84mm ID, 12.7mm Length Polypro 24 Hours 50   pack
