Air Operated Diaphragm Valve with Disposable Material Feed Path ...

The TS5624 series general purpose diaphragm valves are ideal for making controlled deposits of most low to medium viscosity liquids. This version features a DMP path that can be replaced in seconds for curable adhesives such as epoxies.

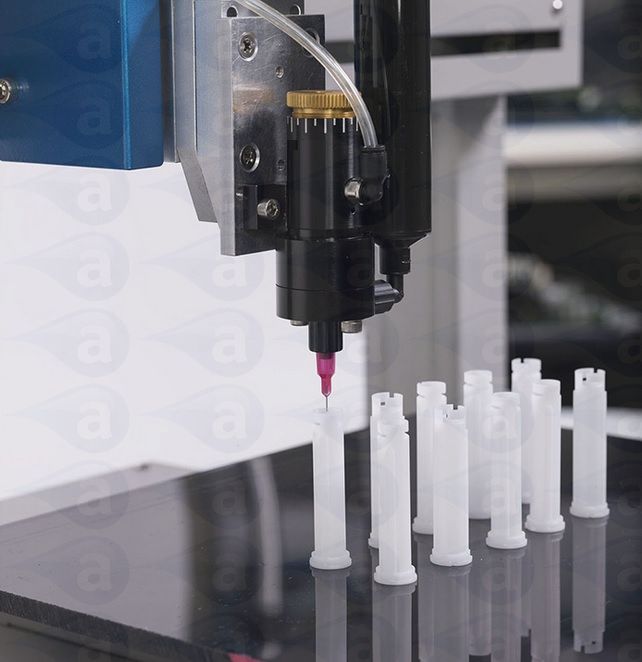

TS5624DMP Diaphragm Valve Adhesive Dispensing
DMP Feed Paths for TS5624DMP Valve

The TS5624DMP Disposable Diaphragm Valve features a first to market Disposable Material Path. Difficult fluids such as Cyanoacrylates and pre-mixed 2-part epoxies, can now be dispensed without the need of frequent cleaning, by simply replacing the entire wetted area in a matter of seconds, while the valve stays on the production line.

The wetted parts are manufactured from black polyethylene to prevent moisture and UV light come into contact with the dispense fluids. As a result, moisture sensitive fluids such as Cyanoacrylate and UV Cured Adhesives can be dispensed reliably and accurately.

The TS5624DMP dispenses low to medium viscosity fluids over a wide range of shot and bead sizes, down to a fraction of a micro liter. An internal spring return makes the valves fully adaptable for use with dispenser/ controllers. A short opening stroke provides an extremely fast and positive shut-off.

The seal-less valve design offers an excellent moisture sensitive resistance and the incorporated diaphragm creates a barrier between the wetted parts and the air cylinder. Valve open time can be as short as 15 milliseconds. Replacement feed paths supplied in packs of 10.

Simple to use with TS500R, TS250, TS350 digital timed controllers.


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

TS5624DMP Vertical Air Valve Disposable Path Diaphragm dispensing valves
GBP   each ex. Vat.
Excludes Carriage.
Lead Time:
Usually Ships 5-7 Days

Summary: Diaphragm valve with vertical design. Unique design features a (DMP) disposable material feed path that allows the use of reactive adhesives such as Cyanoacrylates as well as curing adhesives such as epoxy resins, silicones and PUs. Paths can be replaced in seconds with zero maintenance, cleanup or repair. This compact valve allows the use of resins that if cured will not damage the product. Replacement feed paths show below. Read more...

Item Qty Price GBP Add
TS5624DMP 1   each
DMP-5624 10   each

TS5624DMP Specifications

Wetted Parts: Polyethylene
Fluid Housing Head Colour: Black
Size: 88mm L x 27mm Diameter
Valve Weight: 113 Gram
Fluid Viscosity Range: 1 to 50,000 CPS

Repeatability: +/- 0.30%
Cycle Rate: Up to 500 cycles/ minute
Flow Rate: 7250ml/Min (water) @ 100 psi
Minimum Shot Size: 0.0075cc/ ml
Maximum Fluid Pressure: 100 psi
Activation Air Pressure: Minimum 70psi
Material Inlet Thread Size: 1/8" NPT

Material Outlet Thread Size: 1/4-28" UNF
Mounting Hole Thread Size: 10-32" UNF
Body Material: Aluminium

Valve Body Colour: Black
Fluid Flow Path: 90 Degrees
Warranty: 1 Year

TS250 Digital Valve Controller
GBP   each ex. Vat.
Excludes Carriage.
Lead Time:
Ships 24 Hours

Summary: This air-powered dispenser has 0-100 PSI air output for controlling TS1212 valve. It is dual voltage so can be used globally. We ship this with accessories ready to use out of the box. Learn more...

Item Qty Price GBP Add
TS250 1   each

TS250 Specifications

Type: Electro Pneumatic Timed Dispenser
Initiate: Electric Foot Switch or I/O Port
Air Pressure Display: Analogue Gauge
Timer Display: Digital LCD

Timer: 0.02 to 60 seconds
Dispense Modes: Timed or Continuous
Output Air Pressure: Up to 100 psi
Input Air Pressure: 152 x 165 x 178 mm
Weight: 1.2kg (2.6lb)

Input Voltage: 110V - 220V AC
Cycle Rate: Up to 600 cycles/ minute
Timer Tolerances: +/- 0.001%
Meets or Exceeds: CE, TUV-GS, NRTL
Warranty: 1 Year

Pressure Pot 500 Gram Pressure Pot Adhesive Dispensing

GBP
each ex. Vat.
Excludes carriage.
Lead Time:
Ships 24 Hours

Summary: Premium tank unit with lid, adjustable air pressure gauge, stainless steel tube fitting, 1/4" OD flexible tube kit, user guide. CE approved. Use with TS5600 series valves. Learn more...

Product Code Qty Price GBP Add
TS1215 1   each

TS1215 Specifications

Wetted Parts: Polyethylene
Outer Size: 115mm W x 180mm H
Inner Chamber Size: 102mm W x 152mm H
Fluid Viscosity Range: Use up to 20,000 CPS

Weight: 1.5kg
Maximum Air Pressure: 60 psi
Air Inlet Connection: 1/8" NPT Thread
Material Outlet Connection: 1/4" OD Tubing
Materials: Aluminium

Meets or Excees: CE
Warranty: 1 Year

Pressure Pot 2 Litre Pressure Pot Adhesive Dispensing

GBP
each ex. Vat.
Excludes carriage.
Lead Time:
Ships 24 Hours

Summary: Premium tank unit with lid, adjustable air pressure gauge, stainless steel tube fitting, 1/4" OD flexible tube kit, user guide. CE approved. Use with TS5600 series valves. Learn more...

Product Code Qty Price GBP Add
TS2220 1   each

TS2220 Specifications

Wetted Parts: Polyethylene
Outer Size: 128mm W x 185mm H
Inner Chamber Size: 120mm W x 177mm H
Fluid Viscosity Range: Use up to 30,000 CPS

Weight: 4.5kg
Maximum Air Pressure: 75 psi
Air Inlet Connection: 1/4" NPT Thread
Material Outlet Connection: 1/4" OD Tubing
Materials: Stainless Steel/ Aluminium

Meets or Excees: CE
Warranty: 1 Year


Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications:- Deposits of UV cure glues, Cyanoacrylate adhesives, solvents, primers, inks, oils, flowable liquids, threadlock adhesives & many others.
