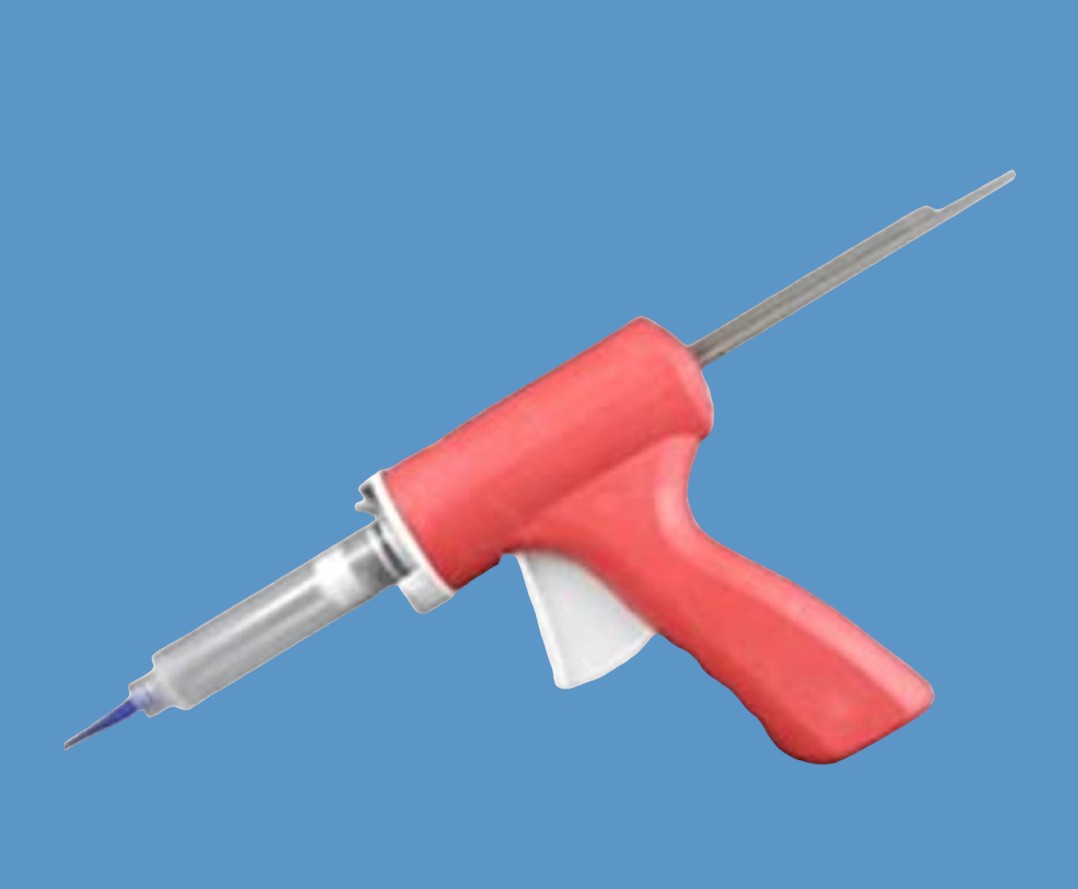

10cc Manual Syringe Gun Dispenser Applicator
Our Syringe Gun dispensers are designed for the controlled application of pastes, gels, adhesives and fluids. A cost effective quality made syringe dispensing gun for use with standard syringe barrels. Ideal for low volume production, re-work or repair work.
Adhesive dispensing syringe gun dispenser

Portable and lightweight manual syringe gun applicator for applying most silicones, pastes, gels, fluxes, adhesives, glues and greases. Gun sizes for use with 10cc size industrial grade syringe barrels with wiper pistons and luer lock tips.

When a small spot of grease is required to a motor assembly, or for repair work, prototypes, etc - these SG dispensers are a cost effective solution. They are robust enough for regular use yet portable and are well suited for low to medium volume assembly work, design work or field work.

Syringe guns offer a low cost dispensing solution for most low to medium viscosity pastes, gels, silicone sealants, greases, solder pastes, fluxes, adhesives and many other liquids, gels and compounds. A portable and lightweight manual dispenser for applying most fluids.

A 7:1 ratio leverage for effortless trigger movement. For standard guns, the rod moves 3mm (1/8 Inch) once pressed to provide controlled deposits without drips or ooze. Push the top button to release and pull back the plunger rod to remove the barrel. Simple bayonet twist-on/ twist-off syringe barrel attachment.

Each syringe gun applicator includes basic components or order the versions with full barrel and precision tip kits. All syringeguns ship direct from stock and include instructions for use.


  Materials: Nylon, Polypropylene, Polyethylene
  Colour: Red and Grey
  Syringe Size: 10cc
  Gun Weight: 120 grams (without barrel)
  Gun Length: 265mm (including push rod)
  Gun Height: 135mm
  Warranty: 12 Months
  Commodity Code: 84678900

The guns are robust and handle most liquids and pastes dispensed from them. However, it is important to press the small release button at the top of the gun before pulling the rod back when changing syringe barrels. O-rings can become worn or covered in glue so they are available to order from stock as replacements. The gun is supplied with (1) spare rubber O-ring in the pack. For future replacement, select the EPR or Viton in 10cc size.

General Use: Guns are portable and can be used in a factory production or assembly department as well as for repair and re-work. Guns are commonly used in the field for repair or maintenance applications..

Common Applications:- Dots and beads of solder paste, Dots and beads of solder flux, Grease to bearings, PVA glue to furniture joints, RTV to seal seams, Silicone dots to bond products, Gasket sealant repair, Shots of roach insecticides, General adhesive applications.

Items are shipped by a courier on a tracked and insured service with products that are available from stock. Items on a longer lead time will be shipped as soon as they are made available.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


More Info Part Code

Description / Quantity

Info Price GBP Add
TS710SG
Syringe Gun
Red Colour Gun
10cc / 10ml Size
Tariff Code: 84678900
Lead Time: 24 Hours
Red Syringe Gun (1)
Clear Syringe Barrel (1)
White Wiper Piston (1)
Orange End Cap Seal (1)
Orange Tip Cap Seal (1)
Dispensing Tip (3)
TDS
Guide
Guns
  each

TS710SG-KIT
Syringe Gun Kit
Red Colour Gun
10cc / 10ml Size
Tariff Code: 84678900
Lead Time: 24 Hours
Red Syringe Gun (1)
Clear Syringe Barrel (50)
White Wiper Piston (50)
Orange End Cap Seal (50)
Orange Tip Cap Seal (50)
Assorted Dispensing Tip (50)
TDS
Guide
Guns
  each

TS710SG-UV
Syringe Gun Kit
Red Colour Gun
10cc / 10ml Size
Tariff Code: 84678900
Lead Time: 24 Hours
Red Syringe Gun (1)
Black Syringe Barrel (50)
Black Rubber Wiper Piston (50)
Orange End Cap Seal (50)
Orange Tip Cap Seal (50)
Assorted Dispensing Tip (50)
TDS
Guide
Guns
  each

More Info Part Code

Description / Quantity

Info Price GBP Add
71000ROD
Replacement Rod
10cc / 10ml Size
Tariff Code: 84678900
Lead Time: 24 Hours
Grey Plunger Rod (1)
Instruction Guide (1)
For: TS710SG/ TS710SG-TSI
TDS
Guide
Guns
  each

P3017EPK
Replacement Oring
10cc / 10ml Size
Tariff Code: 90289090
Lead Time: 24 Hours
EPR Rubber O-Ring Seal (10)
Instruction Guide (1)
For: TS710SG/ TS710SG-TSI
TDS
Guide
Guns
  pack

DCK600 DCK600
Tip Kit Box
Assorted Luer Tips
Tariff Code: 90289090
Lead Time: 24 Hours
Case Colour: Red
Types: Taper, General, Bent
Lengths: 0.50" (12.7mm)
Pack Size: (145)
TDS
Tips
Tools
  each

More Info Part Code

Description / Quantity

Info Price GBP Add
905-NW AD910-NW
10cc Syringe Barrel/
Piston Kit
Tariff Code: 39269097
Lead Time: 24 Hours
Barrel: Clear, Piston: White
Barrel Length: 90.93mm
Barrel ID: 15.72mm
Barrel OD: 18.36mm
Material: High Density Polypro
Pack Size: (50)
TDS
Tips
Tools
  pack

905-NW AD910-BW
10cc Syringe Barrel/
Piston Kit
Tariff Code: 39269097
Lead Time: 24 Hours
Barrel: Black, Piston: White
Barrel Length: 90.93mm
Barrel ID: 15.72mm
Barrel OD: 18.36mm
Material: High Density Polypro
Pack Size: (50)
TDS
Tips
Tools
  pack

905-NW AD910-DW
10cc Syringe Barrel/
Piston Kit
Tariff Code: 39269097
Lead Time: 24 Hours
Barrel: Amber, Piston: White
Barrel Length: 90.93mm
Barrel ID: 15.72mm
Barrel OD: 18.36mm
Material: High Density Polypro
Pack Size: (50)
TDS
Tips
Tools
  pack

orange syringe end cap seal snap on 710000CRPK
Barrel End Cap Seal
10cc / 10ml Size
Tariff Code: 39235010
Lead Time: 24 Hours
Colour: Orange
Size: 10cc Barrels Only
Weight: 0.5g
Pack Size: 50 pcs
Material: Polyethylene
TDS
Tips
Tools
  pack

  Supplied with Barrel, Piston, Caps and Tips
  Strong 7:1 Ratio Hand Lever Leverage
  Controlled Shot Deposits or Beads
  Lightweight yet Robust Construction
  Quick Barrel Bayonet Attachment
  Low Cost Portable Dispensing Solutions
  Ships direct from stock !
