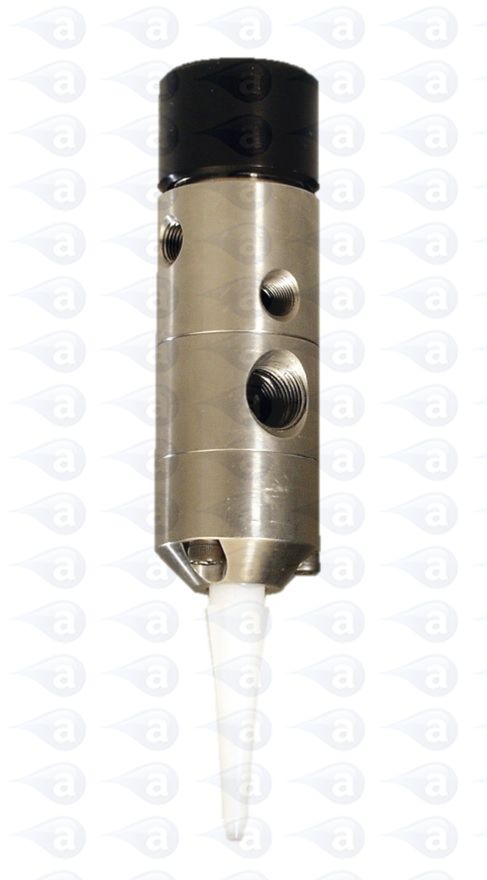

Air Operated TS941 Spool Valve 1/4" Inlet

TS941 TS5322 Spool Valves Adhesive Dispensing

The TS941 series high pressure air operated spool valves are suited to making controlled deposits of many medium to high viscosity gels and pastes. The valve body is made from stainless steel for low maintenance handling of thick materials such as RTVs, silicones, sealants and grease. A piston moves back against the flow to shut-off and prevent material oozing.



TS941 Air Operated Spool Valve Adhesive Dispensing


Designed to dispense viscous materials fed from cartridges or pumps.  The TS941A Spool Valve is a spool design for a fast “ON/OFF” dispensing action unaffected by material input pressure, and is ideal for material with a viscosity between 5000 to 3,000,000 CPS at pressures of up to 2,500 psi. The hardened spool slides in Teflon seals and displaces a portion of the material back into the nozzle during shut off, creating an accurate “suck-back”anti-drip action. An oil chamber creates an additional liquid seal that prevents inadvertent moisture from entering the spool mechanism. The valve design facilitates easy maintenance without the need for special tools. The valve is opened by applying air pressure and closed via a return spring (single acting). A port is provided so that the valve may be connected for air closing without the spring (double acting). All side ports can be rotated in 120 or 90-degree increments to accommodate multiple valve connections.

Recommended digital timed controllers for these valves are the TS250, TS350 and TS500R. Typical applications for this valve include edge sealing using silicones and sealants, filling and packaging, automated paste dosing.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Applications

Make dots of adhesives Dotting
Make beads of adhesives Beading
Bonding of components Bonding
Sealing of components Sealing
Dispense lubricants and greases Lubricating

Specifications

Part ID: TS941A

Wetted Materials: 303 Stainless Steel, Teflon
Size: 4.70" (119mm) L x 1.50" (38mm)
Weight: 1.16lb (726g)
Viscosity Range: 5,000 to 3 Million CPS
Repeatability: ±1.28%
Cycle Rate: Up to 500 cycles/ minute
Flow Rate (water): 39,000 ml / minute @ 100 psi
Min Shot Size: 0.14 cc / ml
Max Fluid Pressure: 2500 psi (172.4 bar)
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/4"
Material Outlet: 1/4"
Mounting: 1.5" (38mm) diameter
Warranty: 1 Year

Part ID Pack Size

Description

Lead Time

Price

Buy
TS941A 1 Spool Valve 1/4" Ships in 72 Hours  each



Dispensing Valves

  Automatic suck back after each dispense cycle
  Handles higher fluid pressure than other valves
  High output and flow rate
  Suitable with moisture sensitive materials
  Suitable with UV adhesives
  Low maintenance
  Simple to control using TS500R, TS250 or TS350
