Home > Fittings > Luer > TSD931-296

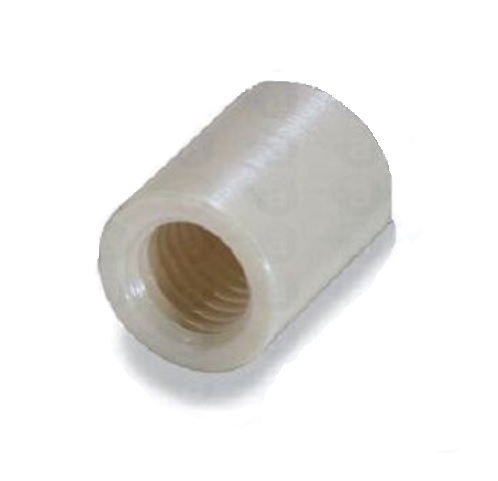

310ml Silicone Sealant Cartridge Tube Nozzle Adapter

Our precision fittings offer safe and leak free connections from cartridges. This versatile adapter converts any 310ml sealant and silicone type pre-filled cartridge for use with standard nozzles or luer lock fittings. It threads over the 310ml cartridge tube end to provide a 1/4 Inch NPT internal nozzle thread.

TSD921-296 Fitting Caulk Tube 1/10 Gallon Silicone


A high density reusable nylon adapter fitting that is used on 310ml (1/10 gallon) size caulking tube cartridges that feature an external threaded nipple. This thread is usually cut to accept a nozzle.

This adapter fitting attaches to the nipple thread on the cartridge and allows for any of our 1/4 Inch NPT thread nozzles to attach. This part is ONLY for use with pre-filled sealant type cartridges and will adapt these for use with our nozzles, fittings and other 1/4 Inch components.

Use with part TSD931-15 (pictured above) for syringe filling. This allows for a direct syringe attachment for transfer of liquid from 310ml cartridge to syringe.  Or use with part TSD931-7 for direct attachment of smaller precision dispensing tips.  This fitting converts any 310ml cartridge external thread to a 1/4 Inch NPT female thread.

Supplied individually in a sealed pack. A robust part that can be cleaned and re-used or sealed off tight when on the cartridge using a cap to protect against air curing.  All items ship direct from stock within 24 hours.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


TSD931-296 Fitting

Excludes Carriage.
Lead Time:
Usually Ships 24 Hours

Summary: White cartridge adapter to convert 310ml tubes to accept nozzles and fittings.

Item Qty Price GBP Add
TSD931-296 1   each

Specifications

Materials: High Density Nylon
Colour: White
Length: 40mm
Outer Diameter: 25mm
Inner: Caulk Tube Thread

Outlet: 1/4 Inch NPT Female Thread
Maximum Pressure: 100 PSI (6.89 Bar)

Flow Pattern: Straight
Description: Nozzle Adapter Fitting
Features: Silicone-Free, Industrial Grade



Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates and updates.

Typical Applications:- These fittings convert all silicone cartridges to a 1/4 Inch NPT thread for use with luer lock tips and nozzles. Use with most liquids, pastes, epoxies, gels, solvents, adhesives, fluxes, lubricants, paints, inks, solder creams, braze pastes and many more assembly fluids.

Fitting threads over 310ml cartridge

TSD931-296SS 1/10 GAL Caulk Tube Adapter Fitting   TSD931-296SS Syringe Filling Caulk Tube


Fittings Pages


  Silicone and chloride free plastics
  Industrial grade safe to 100 psi
  Resistant to aggressive fluids & solvents
  High density moulding (HDPE)
  1/4 Inch NPT thread to 310ml Silicone Tube
  Compatible with industry silicone cartridges

Accessories
More Info Part No.

Specs

Colours Lead Time

Pack

Price GBP Add
310ml silicone cartridge adapter nozzle fitting TSD931-296SS
Nozzle Adapter Stainless Steel
1/4" NPT to Silicone Tube Silver 24 Hours 1   each
TSD931-7PK
Tip Adapter Fitting Polypro
1/4" NPT to Male Luer White 24 Hours 5   pack
TSD931-14
Tip Adapter Fitting Polypro
1/4" NPT to Male Luer Black 24 Hours 5   pack
TSD931-7C
Tip Adapter Fitting Polypro
1/4" NPT to Male Luer Clear 24 Hours 5   pack
TSD931-7N
Tip Adapter Fitting Nylon
1/4" NPT to Male Luer Clear 24 Hours 5   pack
TSD931-15M Fitting Female Luer Adhesive Dispensing TSD931-7M
Tip Adapter Fitting Brass
1/4" NPT to Male Luer Silver 24 Hours 1   each
TSD931-15M Fitting Female Luer Adhesive Dispensing TSD931-15M
Syringe Adapter Fitting Brass
1/4" NPT to Female Luer Silver 24 Hours 1   each
TSD931-15 Fitting Female Luer Syringe Filler TSD931-15
Syringe Adapter Fitting Polypro
1/4" NPT to Female Luer Black 24 Hours 5   pack
