Dispensing Robot 200mm x 200mm x 100mm
3 Axis for dots, arcs, circles, beads & potting

TSR2201 Adhesive Dispensing Robot

Dispensing robots automate most fluid assembly processes ensuring fast and repeatable deposits without mess, waste or error. For making repeat dots, beads, arcs, circles and potting of almost any fluid, adhesive or paste. Easy to setup and run and these systems are supplied complete.




Robots provide precise control over adhesive placement, from exact beads, to repeat timed dots or potting of components. Programming is simple via a teach pendant. Even complex patterns can be created simply. Storage is to internal flash memory allowing for up to 100 different programs to be created.

The TSR2201 series robots are designed to minimize footprint and maximize efficiencies in assembly line operations. This design is based on the idea of worker supplementation to increase the efficiency of workers in order to reduce labour content. With the TSR series robots, assembly line workers stay busy loading and unloading fixtures while the robot is performing precision assembling tasks.

Teaching the TSR2201 series desktop robot is easy with the modern LCD screen. Position of the robot and expanded views of the point jobs are achieved with the teaching pendant and prove to be an asset when programming. TSR series software has eliminated the need to learn complicated programming languages. An Interactive dialog based software allows the user to easily walk through setup of a program..

High speeds are achieved reducing time spent hand applying adhesives. Accuracy of placement and volume of fluid ensures zero waste, mess and error. Robots will dispense most materials including adhesives, pastes, epoxies, gels, silicones, sealants, RTV's, oils, grease, anaerobics, cyanoacrylates, inks and lubricants.


Suitable for...
Make dots of adhesives Adhesives
Make beads of adhesives Silicones
Potting of components Epoxies
Bonding of components Flux Pastes
Sealing of components UV Cure
Dispense lubricants and greases Lubricants
Gaskets
Solder Pastes

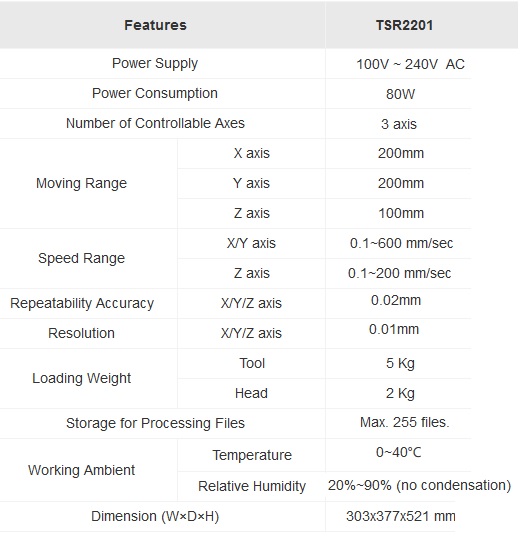

The TSR2201 series robots have a maximum base work area of 200mm x 200mm and a up and down movement of 100mm.  With 3 axis indexing for lines or dots to flat or uneven substrates.  All robots are supplied with a pneumatic syringe controller, I/O cable, teach pendant, airline hoses, syringe bracket, slide adjustment and detailed instruction manuals.


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.





Janome dispensing robot JR2203N


1 x Base Robot with power cord
1 x LCD Teach Pendant with cable
1 x User Guide
1 x 30/55cc Syringe Mounting bracket
1 x TS250 Pneumatic controller
1 x TS250 airline kit/ power kit
1 x I/O Cable to controller
1 x Syringe Kit (30cc and 55cc sizes)
1 x Tip Kit (145 assorted tips)

Part Code

Lead Time

Price

Buy


TSR2201 Ships in 1-2 Weeks      each
