Diaphragm Dispense Valves
The TS5600 series air operated diaphragm valves are ideal for making controlled deposits of most low to medium viscosity liquids. Available in different styles and with different wetted parts to suit varied adhesives and assembly fluids. Choose air operated with a digital controller unit for timed shots or manual versions for hand lever on/off control.

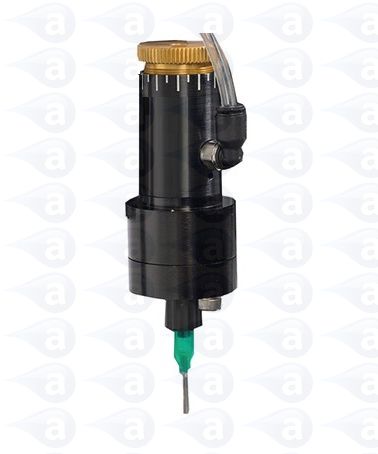

TS5624DMP Diaphragm Valve Adhesive Dispensing

The TS5620 series diaphragm valves are designed to dispense low to medium viscosity fluids materials with precision accuracy over a wide range of shot and bead sized down to a fraction of a micro litre. An internal spring return makes the valves fully adaptable for use with our time/pressure controllers.

A short opening stroke provides extremely fast, positive shut-off. An external stroke control adjustment makes it easy for the operator to fine tune shot sizes. The TS5620 Series compact design allows for mounting flexibility and easy integration into automated applications and on XYZ robots.

Body available in FDA-compliant Ultra High Molecular Weight Polyethylene (UHMWPE) for most applications. A Teflon version is available for chemical compatibility and a Delrin black version for UV-curables is available. Hand-held actuated non timed lever versions for manual non-timed shots.

The valves are easy to use and maintain with user replaceable spare parts. Use UHMW or Teflon with cyanoacrylates, anaerobics, liquid fluxes, resins, lacquers, primers, activators, inks, solvents. TS250, TS350 or TS550R recommended controllers. Use TS1215, TS2220, TS2250 TS1258 or TS22100LS pressure pots.

Precision valves will dispense accurate deposits direct from syringes, cartridges or pressure pots. Valves operate with minimal maintenance, ensuring clean and accurate dispensing & can be fixed on a production line or onto an XYZ robot. All valves have a commodity code of 90282000.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Air Operated Horizonal Design Diaphragm Dispensing Valve UHMW
Summary: Diaphragm valve with horizontal design. Adhesive or liquid is fed under pressure into the fluid housing, the diaphragm opens to allow flow to the tip. Adjustable stroke control for fine tuning. UHMW head and diaphragm. Make rapid dots or controlled beads. For Cyanoacrylates, primers, solvents, inks, oils, anaerobics. Comes with airline hose and fittings kit. Use with any pressure pot or cartridge system. Read more...
More Info Part Code

Description

Stock Price GBP Add
TS5620HU
Type: Horizontal Valve
Wetted: UHMW
Size: 61mm L x 24mm W
Weight: 59g
Viscosity: 1 to 50k CPS
Repeat: +/- 0.30%
Flow: To 3420ml/min
Inlet Thread: 1/4-28" UNF
Out Thread: 1/4-28" UNF
Body: Aluminium
2-3 Weeks   each

Air Operated Horizonal Design Diaphragm Dispensing Valve Teflon
Summary: Diaphragm valve with horizontal design. Adhesive or liquid is fed under pressure into the fluid housing, the diaphragm opens to allow flow to the tip. Adjustable stroke control for fine tuning. Teflon PTFE head and diaphragm. Make rapid dots or controlled beads. For Cyanoacrylates, primers, solvents, inks, oils, anaerobics. Comes with airline hose and fittings kit. Use with any pressure pot or cartridge system. Read more...
More Info Part Code

Description

Stock Price GBP Add
TS5620HT
Type: Horizontal Valve
Wetted: Teflon
Size: 61mm L x 24mm W
Weight: 59g
Viscosity: 1 to 50k CPS
Repeat: +/- 0.30%
Flow: To 3420ml/min
Inlet Thread: 1/4-28" UNF
Out Thread: 1/4-28" UNF
Body: Aluminium
2-3 Weeks   each

Air Operated Horizonal Design Diaphragm Dispensing Valve Delrin
Summary: Diaphragm valve with horizontal design. Adhesive or liquid is fed under pressure into the fluid housing, the diaphragm opens to allow flow to the tip from the bottom. Adjustable stroke control for fine tuning. Delrin black head and diaphragm. Make rapid dots or controlled beads. For UV cure, primers, solvents, inks, oils, anaerobics. Comes with airline hose and fittings kit. Use with any pressure pot or cartridge system. Read more...
More Info Part Code

Description

Stock Price GBP Add
TS5621HD
Type: Horizontal Valve
Wetted: Delrin
Size: 61mm L x 24mm W
Weight: 59g
Viscosity: 1 to 50k CPS
Repeat: +/- 0.30%
Flow: To 3420ml/min
Inlet Thread: 1/4-28" UNF
Out Thread: 1/4-28" UNF
Body: Aluminium
2-3 Weeks   each

Air Operated Vertical Design Diaphragm Dispensing Valve UHMW
Summary: Diaphragm valve with vertical design. Adhesive or liquid is fed under pressure into the fluid housing, the diaphragm opens to allow flow to the tip. Adjustable stroke control for fine tuning. UHMW head and diaphragm. Make rapid dots or controlled beads. For Cyanoacrylates, primers, solvents, inks, oils, anaerobics. Comes with airline hose and fittings kit. Use with any pressure pot or cartridge system. Read more...
More Info Part Code

Description

Stock Price GBP Add
TS5622VU
Type: Vertical Valve
Wetted: UHMW
Size: 76mm L x 27mm W
Weight: 59g
Viscosity: 1 to 50k CPS
Repeat: +/- 0.30%
Flow: To 7250ml/min
Inlet Thread: 1/8" NPT
Out Thread: 1/4-28" UNF
Body: Aluminium
24 Hours   each

Air Operated Vertical Design Diaphragm Dispensing Valve Teflon
Summary: Diaphragm valve with vertical design. Adhesive or liquid is fed under pressure into the fluid housing, the diaphragm opens to allow flow to the tip. Adjustable stroke control for fine tuning. Teflon head and diaphragm. Make rapid dots or controlled beads. For Cyanoacrylates, primers, solvents, inks, oils, anaerobics. Comes with airline hose and fittings kit. Use with any pressure pot or cartridge system. Read more...
More Info Part Code

Description

Stock Price GBP Add
TS5622VT
Type: Vertical Valve
Wetted: Teflon
Size: 76mm L x 27mm W
Weight: 59g
Viscosity: 1 to 50k CPS
Repeat: +/- 0.30%
Flow: To 7250ml/min
Inlet Thread: 1/8" NPT
Out Thread: 1/4-28" UNF
Body: Aluminium
24 Hours   each

Air Operated Vertical Design Diaphragm Dispensing Valve Teflon
Summary: Diaphragm valve with vertical design. Adhesive or liquid is fed under pressure into the fluid housing, the diaphragm opens to allow flow to the tip. Adjustable stroke control for fine tuning. Teflon head and diaphragm. Make rapid dots or controlled beads. For Cyanoacrylates, primers, solvents, inks, oils, anaerobics. Comes with airline hose and fittings kit. Use with any pressure pot or cartridge system. Read more...
More Info Part Code

Description

Stock Price GBP Add
AD5622VT
Type: Vertical Valve
Wetted: Teflon
Size: 89mm L x 39mm W
Weight: 124g
Viscosity: 1 to 50k CPS
Repeat: +/- 0.30%
Flow: To 7250ml/min
Inlet Thread: 1/8" NPT
Out Thread: 1/4-28" UNF
Body: Aluminium
24 Hours   each

Air Operated Vertical Design Diaphragm Dispensing Valve Delrin
Summary: Diaphragm valve with vertical design. Adhesive or liquid is fed under pressure into the fluid housing, the diaphragm opens to allow flow to the tip. Adjustable stroke control for fine tuning. Delrin head and diaphragm. Make rapid dots or controlled beads. For UV Cure, primers, solvents, inks, oils, anaerobics. Comes with airline hose and fittings kit. Use with any pressure pot or cartridge system. Read more...
More Info Part Code

Description

Stock Price GBP Add
TS5622VD
Type: Vertical Valve
Wetted: Delrin
Size: 76mm L x 27mm W
Weight: 59g
Viscosity: 1 to 50k CPS
Repeat: +/- 0.30%
Flow: To 7250ml/min
Inlet Thread: 1/8" NPT
Out Thread: 1/4-28" UNF
Body: Aluminium
24 Hours   each

Air Operated Vertical Design Diaphragm Dispensing Valve Stainless Steel
Summary: Diaphragm valve with vertical design. Adhesive or liquid is fed under pressure into the fluid housing, the diaphragm opens to allow flow to the tip. Adjustable stroke control for fine tuning. Stainless Steel head and Teflon diaphragm. Make rapid dots or controlled beads. For UV Cure, primers, solvents, inks, oils, anaerobics. Comes with airline hose and fittings kit. Use with any pressure pot or cartridge system. Read more...
More Info Part Code

Description

Stock Price GBP Add
TS5622VU-DVD diaphragm dispensing valve
TS5622VU-DVD
Type: Vertical Valve
Wetted: Teflon/ Stainless
Size: 76mm L x 27mm W
Weight: 138g
Viscosity: 1 to 50k CPS
Repeat: +/- 0.30%
Flow: To 7250ml/min
Inlet Thread: 1/8" NPT
Out Thread: 1/4-28" UNF
Body: Stainless
2-3 Weeks   each

Air Operated Vertical Design Diaphragm Dispensing Valve Disposable Material Path
Summary: Diaphragm valve vertical design. Adhesive or liquid is fed under pressure into the fluid housing, the diaphragm opens to allow flow to the tip. Adjustable stroke control for fine tuning. Delrin replaceable feedpath and Teflon diaphragm. Make rapid dots or controlled beads. For UV Cure, primers, solvents, inks, oils, anaerobics. Comes with airline hose and fittings kit. Use with any pressure pot or cartridge system. Read more...
More Info Part Code

Description

Stock Price GBP Add
Diaphragm dispensing valves
TS5624DMP
Type: Vertical Valve
Wetted: Teflon/ Stainless
Size: 88mm L x 27mm W
Weight: 138g
Viscosity: 1 to 50k CPS
Repeat: +/- 0.30%
Flow: To 7250ml/min
Inlet Thread: 1/8" NPT
Out Thread: 1/4-28" UNF
Body: Stainless
1-2 Weeks   each

Manually Operated Vertical Design Diaphragm Dispensing Valve UHMW
Summary: Diaphragm valve with hand lever control. Adhesive or liquid is fed under pressure to the fluid housing, the diaphragm opens when the lever is pressed to allow flow to the tip. Adjustable stroke control for fine tuning. UHMW head and diaphragm. Make non-timed dots or controlled beads. For Cyanoacrylates, primers, solvents, inks, oils, anaerobics. Comes with fluid feed hose and fittings kit. Use with any pressure pot or cartridge system. Read more...
More Info Part Code

Description

Stock Price GBP Add
TS5623HU
Type: Vertical Valve
Wetted: UHMW
Size: 76mm L x 32mm W
Weight: 1113g
Viscosity: 1 to 50k CPS
Repeat: +/- 0.30%
Flow: To 3420ml/min
Inlet Thread: 1/8" NPT
Out Thread: 1/4-28" UNF
Body: Aluminium
2-3 Weeks   each

Manually Operated Vertical Design Diaphragm Dispensing Valve UHMW
Summary: Diaphragm valve with hand lever control. Adhesive or liquid is fed under pressure to the fluid housing, the diaphragm opens when the lever is pressed to allow flow to the tip. Adjustable stroke control for fine tuning. Delrin head and diaphragm. Make non-timed dots or controlled beads. For UV Cure, primers, solvents, inks, oils, anaerobics. Comes with fluid feed hose and fittings kit. Use with any pressure pot or cartridge system. Read more...
More Info Part Code

Description

Stock Price GBP Add
TS5623HD
Type: Vertical Valve
Wetted: Delrin
Size: 76mm L x 32mm W
Weight: 1113g
Viscosity: 1 to 50k CPS
Repeat: +/- 0.30%
Flow: To 3420ml/min
Inlet Thread: 1/8" NPT
Out Thread: 1/4-28" UNF
Body: Aluminium
2-3 Weeks   each

Manually Operated Vertical Design Diaphragm Dispensing Valve Teflon
Summary: Diaphragm valve with hand lever control. Adhesive or liquid is fed under pressure to the fluid housing, the diaphragm opens when the lever is pressed to allow flow to the tip. Adjustable stroke control for fine tuning. Teflon head and diaphragm. Make non-timed dots or controlled beads. For Cyanoacrylates, primers, solvents, inks, oils, anaerobics. Comes with fluid feed hose and fittings kit. Use with any pressure pot or cartridge system. Read more...
More Info Part Code

Description

Stock Price GBP Add
TS5623HT
Type: Vertical Valve
Wetted: Teflon
Size: 76mm L x 32mm W
Weight: 1113g
Viscosity: 1 to 50k CPS
Repeat: +/- 0.30%
Flow: To 3420ml/min
Inlet Thread: 1/8" NPT
Out Thread: 1/4-28" UNF
Body: Aluminium
2-3 Weeks   each

Digital Smart Controller For Air Operated Valves
Summary: A digital controller for use with air-operated diaphragm valves. Making exact repeat shots or controlled beads via the supplied foot pedal or a remote signal using the I/O port. Smart features include Wi-Fi and ethernet, calibration and timer memory. Full colour LCD display. Read more...
More Info Part Code

Description

Stock Price GBP Add
TS550R Digital Valve Controller Techcon
TS550R
Type: Valve Controller
Brand: TSI
For: Air Operated Valves
Tariff Code: 90282000
Origin: USA
2-3 Weeks   each

Digital Basic Controller For Air Operated Valves
Summary: A digital controller for use with air-operated diaphragm valves. Making exact repeat shots or controlled beads via the supplied foot pedal or a remote signal using the I/O port. Cost effective dispenser that can be used manually or as part of an automated process. Read more...
More Info Part Code

Description

Stock Price GBP Add
TS250
Type: Valve Controller
Brand: TSI
For: Air Operated Valves
Tariff Code: 90282000
Origin: USA
24 Hours   each

5 Litre Pressure Pot with Adjustable Regulator
Summary: A 5 litre pressure pot with 0-75 PSI adjustable regulator and gauge. Stainless steel body chamber with aluminium lid. Top ported with a choice of fluid lines or feed tubing that runs the liquid from the base of the tank through the lid. Easy to clean and maintain. Read more...
More Info Part Code

Description

Stock Price GBP Add
Pressure Pot Tanks Adhesive DIspensing
TS2250
Type: Pressure Pot
Brand: ADL
Size: 5 Litre
Tariff Code: 84678900
Origin: USA
2-3 Weeks   each

Flexible Feed Tubing
Summary: The connecting material feed supply from pressure pot to dispense valve. Available in a range of colours, diameters and material types. Flexible tube easy to cut and connect. Silicone-free and industrial grade safe to 100 PSI fluid pressure. Works with a wide range of different connector fittings. Read more...
More Info Part Code

Description

Stock Price GBP Add
Fluid line feed tubing TSD1099-24 Adhesive Dispensing
TSD1099-24
Type: Feed Tubing
Dia: 1/4" OD, 1/8" ID
Colour: Clear
Tariff Code: 39269097
Origin: UK
24 Hours   per 10 ft.

More Info Part Code

Description

Stock Price GBP Add
Fluid line feed tubing Techcon TSD1099-25
TSD1099-25
Type: Feed Tubing
Diameter: 1/4" OD
Colour: Black
Tariff Code: 39269097
Origin: UK
24 Hours   per 10 ft.

Fluid Fittings
Luer lock elbow threaded fitting adhesive dispensing   Summary: Fittings are used to connect feed tubing and fluid lines to dispense valves, pressure pots and cartridges. Available in straight or angled, in plastic or metal and a wide range of materials. Luer lock, barbed, compression, threaded, manifold and tee fittings are available. Industrial grade silicone-free parts. Can also be used for pneumatic applications. Read more...

Valve Spares
  Summary: Dispense valves do require some maintenance after long use. Simple repair procedures include replacing a seal or a diaphragm. We supply useful kits for ensuring dispense valves retain top performance. As well as spares for each valve type where main parts need replacing. Spare kits are simple to install and provided with instructions. Read more...
