Hand lever dispensing valves

TS1201 Hand Lever Pinch Valve Dispensers

Hand operated precision valves for the controlled dispensing of most low to medium viscosity fluids and adhesives. Fluid is fed under pressure to the valve. When the lever is pressed, the valve opens up to allow fluid flow. When the lever is released, the valve shuts off to prevent drips. Use with any of our pressure pots or cartridge retainers for a complete system. All valves are supplied with fluid lines, tubes, connectors & tips.


TS1201 Pinch Tube Pen Valve

The TS1201 Dispensing Pen uses a disposable moulded tube assembly. Designed to handle a wide variety of low to medium viscosity fluids from adhesives and lubricants to sealants and masks. Gravity or pressure fed, the pen has a built-in shot and flow rate for repeatability. Includes pre-assembled applicator pen, two clear and two black spare pinch tube assemblies, an assortment of disposable dispensing tips and a 24" hose. Replacement pinch tubes are supplied in packs of 10. Systems with pressure pots are available.

Specifications

Part ID: TS1201

Copyright  2008 Adhesive Dispensing Ltd. All rights reserved.

Size: 127mm L x 34mm D
Weight: 36 g
Wetted Parts: Polyethylene
Viscosity Range: 1 - 45,000 CPS
Flow Rate: 0.54 GPM @ 60 psi (water)
Max Fluid Pressure: 60 psi ( 4 Bar)
Material Inlet: Female Luer Lock
Material Outlet: Male Luer Lock
Lead Time: * Ships in 24 hours
Part ID

Description

Price Buy
TS1201 Hand held pinch tube dispense valve  each

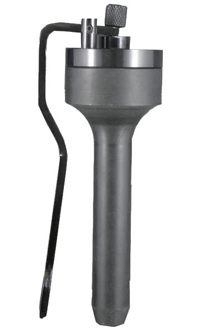

TS5623HT Manual Diaphragm Valve

The TS5600 Series dispense valve systems accurately control the application of most low to medium viscosity fluids. The unique seal-less design incorporates an inert polymer diaphragm that isolates the actuator from the valve. Model TS5623HT with Teflon polymer wetted parts is used for dispensing solvents, cyanoacrylates, anaerobics and fluxes. This version is a manual hand held valve (non timed) that will accept a direct feed of adhesive or liquid from a pressure pot.

Specifications

Part ID: TS5623HT

Materials: Teflon
Size: 88mm L x 27mm Diameter
Weight: 118g (0.26lb)
Viscosity Range: 1 - 50,000 CPS
Flow Rate (water): 7250ml/minute @ 100 psi
Max Fluid Pressure: 70 psi ( 5 Bar)
Activation Pressure: 70 psi (4.8 bar) minimum
Material Inlet: 1/8" NPT
Material Outlet: 1/8" NPT
Lead Time: * Ships 72 Hours
Part ID

Description

Price Buy
TS5623HT Manual Diaphragm Valve    each

ADL-200CAM Manual Diaphragm Valve

The ADL-200CAM Hand held Diaphragm Valve provides precise and continuous micro shot applications for a number of fluids. This low cost hand held valve is excellent for Low to medium viscosity fluids. The hand lever will open the diaphragm thus allowing fluids to flow quickly; when it is released the diaphragm will go back to the closed position. This low cost unit doesn't require the use of a time/pressure dispenser.

Specifications

Part ID: ADL-200CAM

Materials: Delrin, Teflon
Size: 159mm L x 45mm Diameter
Weight: 150g
Viscosity Range: 1 - 5,000 CPS
Flow Rate (water): 2250ml/minute @ 100 psi
Max Fluid Pressure: 50 psi
Activation: Hand Lever
Material Inlet: 1/8" NPT
Material Outlet: 5/16 UNF
Lead Time: Ships 24 Hours
Part ID

Description

Price Buy
200-CAM Manual Diaphragm Valve    each
