Pick and place products

Offering the widest range of dispensing tips for use with syringe barrels, dispense bottles, dispense valves and robots. These accessories provide a simple way of picking up small components and placing them accurately. Either a hand held pump or a system that runs from a compressed air supply.




  HandyVac

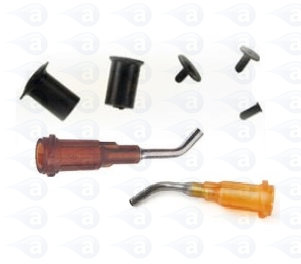

An inexpensive tool that no assembler should be without. ESD safe with antistatic treatment. Soft silicone suction cups will not scratch or damage sensitive surfaces, equipment or parts. The cups can be used in temperatures from -55 C to 230 C. Selection of four tips with vacuum cups included. Cups can be mounted directly to tool. Includes one 1/4" (6.35mm), one 3/8" (9.53mm), and two 1/8" (3.18mm) cups. Easily handle up to 85g object. Totally self contained vacuum with no batteries to replace. Good for handling surface mount components. Vacuum cup is ESD safe. Main unit is 2 3/4" (69.58mm) long and 1/2" (12.7mm) diameter.

Part Code Description Lead Time Price Buy
TS1206 Manual Pick and Place Ships 48 Hours   each

  Pneumatic Manual Pickup Tool

Vacuum pick and place pencil for precision hand placement of small components. Connects direct to any regulated air supply or use with TS350 dispenser. Includes selection of rubber vacuum cups and tips. Soft silicone suction cups will not scratch or damage sensitive surfaces, equipment or parts. The cups can be used in temperatures from -55 C to 230 C. Selection of four tips with vacuum cups included. Cups can be mounted directly to tool. Includes one 1/4" (6.35mm), one 3/8" (9.53mm), and two 1/8" (3.18mm) cups.



Part Code Description Lead Time ID Inch ID mm
TS8120 Manual Pick and Place Ships 72 Hours   each
