Precision spray valves for lubricating, bonding, marking and coating applications

Spray valve dispensing system techcon

These precision spray valves apply low to medium viscosity liquids without excessive mess or waste. Using low pressure and low volume, they can be adjusted from a jet to a fine mist. Used with the TS500R digital valve controller for fully automated or manual operator controlled applications.


Precision spray valves for coating, marking bonding and lubricating. High levels on control with no overspray. Suitable for many fluids and low to medium viscosity materials.  You can view each product below or with help find a suitable system using our valve selection guide page or click here for PDF datasheet selection guide.  Precision valves will dispense accurate deposits direct from syringes, cartridges or pressure pots.

Valves will cycle from 500 to 600 times per minute giving repeatable and fast deposits for bonding, sealing, coating and potting applications.  Valves operate with minimal maintenance, ensuring clean and accurate dispensing whether used by hand, fixed on a production line or mounted onto an XYZ robot. From standard 0.046" nozzle to smaller 0.014" nozzle in either round pattern spray or wide shape fan spray.

Typical applications include marking parts with ink, coating parts with lubricant, fine oil spray to tools and dies for metal stamping, primers and activators to products, conformal coatings.

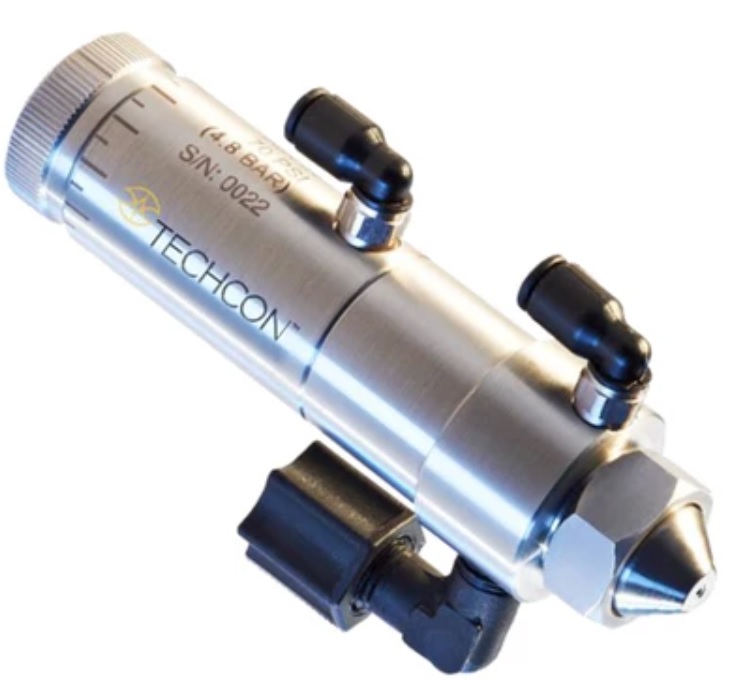

TS5520 Aluminium Spray Valve 0.046" Round

Precision round pattern spray valve with anodized aluminium body and stainless steel 0.046" nozzle cap. Adjustable stroke control for precise flow modification. Suitable for micro spraying of primers, activators, inks, lubricants, oils, marking fluids and others. Supplied with airline hoses, input fittings and setup guide.
Read more...

TS5540-046R Stainless Steel Spray Valve 0.046" Round

Precision round pattern spray valve with stainless steel body and stainless steel 0.046" nozzle cap. Adjustable stroke control for precise flow modification. Suitable for micro spraying of primers, activators, inks, lubricants, oils, marking fluids and others. Supplied with airline hoses, input fittings and setup guide. Read more...

TS5540-028R Stainless Steel Spray Valve 0.028" Round

Precision round pattern spray valve with stainless steel body and stainless steel 0.028" nozzle cap. Adjustable stroke control for precise flow modification. Suitable for micro spraying of primers, activators, inks, lubricants, oils, marking fluids and others. Supplied with airline hoses, input fittings and setup guide. Read more...

TS5540-014R Stainless Steel Spray Valve 0.014" Round

Precision round pattern spray valve with stainless steel body and stainless steel 0.014" nozzle cap. Adjustable stroke control for precise flow modification. Suitable for micro spraying of primers, activators, inks, lubricants, oils, marking fluids and others. Supplied with airline hoses, input fittings and setup guide. Read more...

TS5540-046F Stainless Steel Spray Valve 0.046" Fan

Precision fan pattern spray valve with stainless steel body and stainless steel 0.046" nozzle cap. Adjustable stroke control for precise flow modification. Suitable for micro spraying of primers, activators, inks, lubricants, oils, marking fluids and others. Supplied with airline hoses, input fittings and setup guide. Read more...

TS5540-028F Stainless Steel Spray Valve 0.028" Fan

Precision fan pattern spray valve with stainless steel body and stainless steel 0.028" nozzle cap. Adjustable stroke control for precise flow modification. Suitable for micro spraying of primers, activators, inks, lubricants, oils, marking fluids and others. Supplied with airline hoses, input fittings and setup guide. Read more...

TS5540-014F Stainless Steel Spray Valve 0.014" Fan

Precision fan pattern spray valve with stainless steel body and stainless steel 0.014" nozzle cap. Adjustable stroke control for precise flow modification. Suitable for micro spraying of primers, activators, inks, lubricants, oils, marking fluids and others. Supplied with airline hoses, input fittings and setup guide. Read more...

Spray Valve O-Ring Kit Part 5540-ORINGKIT

Replacement o-ring seal kit for TS5540 soray valves. Includes 4 of the orings required to replace seals on the TS5540 R series and TS5540 F series. Supplied in sealed packaging with fitting instructions. Read more...

Spray Valve Retaining Ring Kit Part 5540-SRKIT

Replacement retaining ring kit for TS5540 soray valves. Includes 2 of the retaining rings, 2 of the mylar washers and 1 nylon washer on the TS5540 R series and TS5540 F series. Supplied in sealed packaging with fitting instructions. Read more...

Spray Valve Replacement Needle Part 5540-SRKIT

Replacement retaining ring kit for TS5540 soray valves. Includes 2 of the retaining rings, 2 of the mylar washers and 1 nylon washer on the TS5540 R series and TS5540 F series. Supplied in sealed packaging with fitting instructions. Read more...

Valve Controllers

Digital controllers for all dispensing valves. Adjustable timer control with large display LCD. Adjustable air pressure. Timer memory feature. Low level pressure alarms. I/O connection for remote actuation or linking to a PLC. Use the TS250 for basic control, TS350 if memory required and TS500R for spray and auger valves. Read more...

Pressure Pots

Tanks and pressure pots ranging in size from 500 gram to 19 litre. Small pots to accept 500 gram bottles of Cyanoacrylate and Anaerobic adhesives. High pressure tanks to 100 psi. All supplied with either separate adjustable air regulators or built in. Available with a range of feed tubing, manifolds and fittings. Read more...

Feed Tubing

Flexible feed tubing for use with pressure pots, cartridges, valves and syringes. In 1/4" OD or 3/8" OD. Safe for use to 100 psi and compatible with most liquids, adhesives and solvents. Smaller bore fluid lines with male to female luer lock for quick connection to valves and tanks. In clear or black for use with all liquids and UV cure. Read more...

Fittings

Fittings for use with metering valves, pressure pots, cartridges, syringes and feed tubing. Luer lock, compression, threaded, barbed and elbow. In polypropylene, nylon, polyethylene and stainless steel. Suitable for use with most liquids, adhesive and chemicals. Low cost solutions for fluid feed and flow. Supplied in sealed packs. Read more...

XYZ Dispensing Robots

Compact dispensing valves for rapid application of most chemicals, liquids, adhesives and lubricants. Special valves for spraying. High pressure valves for sealants and silicones. Spray valves for marking, bonding and coating. Pinch tube valves for curable two part epoxies or CAs. Auger valves for positive displacement of pastes. Read more...


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Typical spray valve setup adhesive dispensing
