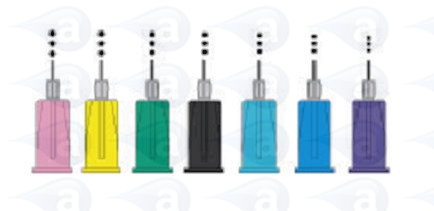

TS Series Precision Crimped Dispensing Tips

TS23-1/4 Tip 23 Gauge Crimped Blunt Adhesive Dispensing

These tips have a crimped tube to hub so are perfect for dispensing solvents and solvent based glues. The hub is opaque so also good for UV cure adhesives.


Crimped stainless shaft to plastic opaque hub

The TS Series dispensing tips offer a variety of dispensing performance and flexibility options. Stainless steel tubing is cut to precise lengths and ground to be burr-free. Cut tubing is crimped into aluminium locking insert, then moulded into polyethylene hubs. Moulded hub colours correspond to gauge size.

All TS Series tips secure to syringe barrels and correspond to the luer lock specification. Opaque plastic hubs are ideal for use with UV cure adhesives. Offering the widest range of dispensing tips for use with syringe barrels, dispense bottles, dispense valves and robots. All tips are industrial grade safe for use to 100 psi air pressures and are certified silicone-free. Luer lock secure attachment for leak free dispensing.

  Precision burr free stainless steel tubing
  0.5" and 1.0" tubing lengths
  Silicone free polyproylene plastics
  Safe for use up to 100 psi
  Luer lock colour coded opaque hubs
  Crimped shaft to hub good for use with solvents
  Packs of 50 or bulk on request
  Compatible with all fluids

TS18-1/2 crimped precision needle adhesive dispensing tip

  1/2" Long Blunt End Precision Tips
Supplied in packs of 50

Precision dispensing tip. Stainless steel shaft to polypropylene colour coded opaque luer lock hub. 0.50" long (12.5mm). Certified silicone-free and industrial grade safe. Supplied in sealed packs. (Other lengths shown).

Click the colour for each part to link to product pages.

Gauge Part Code Colour Pack ID Inch ID mm Price Buy
14 TES14-1/2 Olive 50 0.063" 1.60mm GBP
14 TES14-1/2 Olive 500 0.063" 1.60mm GBP
14 TES14-1/2 Olive 1000 0.063" 1.60mm GBP
15 TES15-1/2 Grey 50 0.054" 1.37mm GBP
15 TES15-1/2 Grey 500 0.054" 1.37mm GBP
15 TES15-1/2 Grey 1000 0.054" 1.37mm GBP
18 TS18-1/2 Pink 50 0.033" 0.84mm GBP
18 TS18-1/2 Pink 500 0.033" 0.84mm GBP
18 TS18-1/2 Pink 1000 0.033" 0.84mm GBP
18 TES18-1/2 Green 50 0.033" 0.84mm GBP
18 TES18-1/2 Green 500 0.033" 0.84mm GBP
18 TES18-1/2 Green 1000 0.033" 0.84mm GBP
19 TS19-1/2 Brown 50 0.028" 0.71mm GBP
19 TS19-1/2 Brown 500 0.028" 0.71mm GBP
19 TS19-1/2 Brown 500 0.028" 0.71mm GBP
20 TS20-1/2 Yellow 50 0.024" 0.61mm GBP
20 TS20-1/2 Yellow 500 0.024" 0.61mm GBP
20 TS20-1/2 Yellow 1000 0.024" 0.61mm GBP
21 TS21-1/2 Green 50 0.020" 0.51mm GBP
21 TS21-1/2 Green 500 0.020" 0.51mm GBP
21 TS21-1/2 Green 1000 0.020" 0.51mm GBP
22 TS22-1/2 Black 50 0.016" 0.41mm GBP
22 TS22-1/2 Black 500 0.016" 0.41mm GBP
22 TS22-1/2 Black 1000 0.016" 0.41mm GBP
23 TS23-1/4 Light Blue 50 0.013" 0.33mm GBP
23 TS23-1/4 Light Blue 500 0.013" 0.33mm GBP
23 TS23-1/4 Light Blue 1000 0.013" 0.33mm GBP
23 TS23-1/2 Light Blue 50 0.013" 0.33mm GBP
23 TS23-1/2 Light Blue 500 0.013" 0.33mm GBP
23 TS23-1/2 Light Blue 1000 0.013" 0.33mm GBP
25 TS25-1/2 Blue 50 0.010" 0.25mm GBP
25 TS25-1/2 Blue 500 0.010" 0.25mm GBP
25 TS25-1/2 Blue 1000 0.010" 0.25mm GBP
26 TS26-1/2 Beige 50 0.010" 0.25mm GBP
26 TS26-1/2 Beige 500 0.010" 0.25mm GBP
26 TS26-1/2 Beige 1000 0.010" 0.25mm GBP
27 TS27-1/4 Grey 50 0.008" 0.20mm GBP
27 TS27-1/4 Grey 500 0.008" 0.20mm GBP
27 TS27-1/4 Grey 1000 0.008" 0.20mm GBP
27 TES27-1/2 Clear 50 0.008" 0.20mm GBP
27 TES27-1/2 Clear 500 0.008" 0.20mm GBP
27 TES27-1/2 Clear 1000 0.008" 0.20mm GBP
30 TS30-1/4 Lavender 50 0.006" 0.15mm GBP
30 TS30-1/4 Lavender 500 0.006" 0.15mm GBP
30 TS30-1/4 Lavender 1000 0.006" 0.15mm GBP
30 TS30-1/2 Lavender 50 0.006" 0.15mm GBP
30 TS30-1/2 Lavender 500 0.006" 0.15mm GBP
30 TS30-1/2 Lavender 1000 0.006" 0.15mm GBP
30 TS30-5/16 Lavender 50 0.006" 0.15mm GBP
30 TS30-5/16 Lavender 500 0.006" 0.15mm GBP
30 TS30-5/16 Lavender 1000 0.006" 0.15mm GBP

TS18-1-1000 Tip Crimped Luer 18 Gauge Adhesive Dispensing

  1" Long Blunt End Precision Tips
Supplied in packs of 50

Precision dispensing tip. Stainless steel shaft to polypropylene colour coded luer lock hub. 1.00" long (25.40mm). Certified silicone-free and industrial grade safe. Supplied in sealed packs. (Other lengths shown).

Click the colour for each part to link to product pages.

Gauge Code Colour Pack ID Inch ID mm Price Buy
14 TES14-1 Olive 50 0.063" 1.60mm GBP
14 TES14-1 Olive 500 0.063" 1.60mm GBP
14 TES14-1 Olive 1000 0.063" 1.60mm GBP
15 TES15-1 Grey 50 0.063" 1.60mm GBP
15 TES15-1 Grey 500 0.063" 1.60mm GBP
15 TES15-1 Grey 1000 0.063" 1.60mm GBP
18 TS18-1 Pink 50 0.033" 0.84mm GBP
18 TS18-1 Pink 500 0.033" 0.84mm GBP
18 TS18-1 Pink 1000 0.033" 0.84mm GBP
18 TS18-1-1/2 Pink 50 0.033" 0.84mm GBP
18 TS18-1-1/2 Pink 500 0.033" 0.84mm GBP
18 TS18-1-1/2 Pink 1000 0.033" 0.84mm GBP
19 TS19-1 Brown 50 0.028" 0.71mm GBP
19 TS19-1 Brown 500 0.028" 0.71mm GBP
19 TS19-1 Brown 1000 0.028" 0.71mm GBP
20 TS20-1 Yellow 50 0.024" 0.61mm GBP
20 TS20-1 Yellow 500 0.024" 0.61mm GBP
20 TS20-1 Yellow 1000 0.024" 0.61mm GBP
21 TS21-1 Green 50 0.020" 0.51mm GBP
21 TS21-1 Green 500 0.020" 0.51mm GBP
21 TS21-1 Green 1000 0.020" 0.51mm GBP
22 TS22-1 Black 50 0.016" 0.41mm GBP
22 TS22-1 Black 500 0.016" 0.41mm GBP
22 TS22-1 Black 1000 0.016" 0.41mm GBP
23 TS23-1 Light Blue 50 0.013" 0.33mm GBP
23 TS23-1 Light Blue 500 0.013" 0.33mm GBP
23 TS23-1 Light Blue 1000 0.013" 0.33mm GBP
26 TS26-1 Beige 50 0.010" 0.25mm GBP
26 TS26-1 Beige 500 0.010" 0.25mm GBP
26 TS26-1 Beige 1000 0.010" 0.25mm GBP

TS Precision Tips

    Precision burr free stainless steel tubing
  0.5" and 1.0" tubing lengths
  Silicone free polyproylene plastics
  Safe for use up to 100 psi
  Luer lock colour coded opaque hubs
  Crimped shaft to hub
  Packs of 50 or bulk packs
  Compatible with most fluids

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.


Air-Powered Dispensers * Industrial Dispensing Components * Precision Valve Systems * XYZ Bench Robots

Adhesives * Packaged Components * Techkits * RatioPacks * Hingepacks * Syringe Barrels * Cartridges * Nozzles


|  Privacy   |   Terms   |  Accounts  |

Prices are in UK pounds.  Vat is not charged on orders placed outside the EU and any EU orders are exempt from VAT only if a valid company VAT number is provided to us at time of order or before shipping.  Products are covered by a 12-month warranty against faults and malfunction.  All orders online are encrypted for safety and security.  Please read our privacy agreement for details.  We also process phone or fax payments by credit and debit card.  Please contact our accounts department if you would like to open a credit account with us.

Our new web shop is available to order these products in a number of different currencies. Please visit www.adhesivedispensing.co.uk for more details.

Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, Adhesive Dispensing Ltd. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.

Copyright  2017 Adhesive Dispensing Ltd. All rights reserved.






  Support

  Literature
  Dispense Tips Brochure
  Syringe Barrels Brochure
  Cartridges Brochure
  Nozzles Brochure
  Robots Brochure
  Full Catalogue

  Information
  Important Safety Information
  Viscosities Chart
  ISO9001:2008 Certificate

  Contact Us
  Equipment Recommendations
  Request a Quote
  Technical Support
  Applicator Assist

  Shipment of this product


Items are shipped in the UK by a courier on a next day tracked and insured service for all items that are available from stock. Items on a lead time will be shipped as soon as they are available.



  Using these products


General purpose TS tips are designed to work with all luer lock and luer slip syringe barrels and fittings. They are fully compatible with most fluids, adhesives, solvents and chemicals. The crimped tube to shaft (not glued) is better for solvent based fluids.



  Industrial Grade Safe


All tips are safe for use up to 100 psi pressure.




  Silicone-Free Tips


All TS crimped tips are certified silicone-free components and will not contaminate any fluids that are dispensed from them.
