Precision

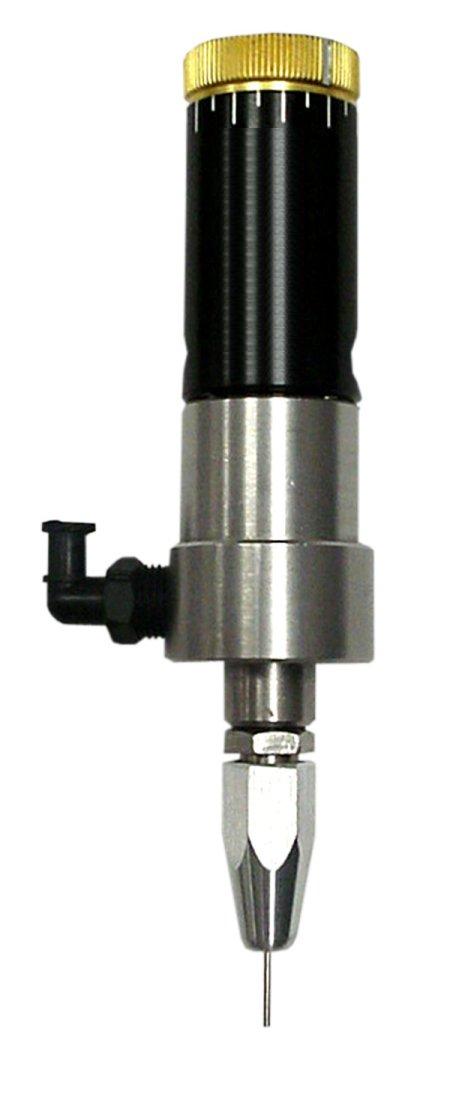

Air Operated Needle Valve |
 |
|
High speed dispensing valve for making micro dots of adhesives,
inks, solvents and other fluids. The inner needle shuts off near the
tip end which improves control and eliminates drips. Use this valve
with a standard pneumatic timed controller. |
|
A precision dosing valve
that uses a needle assembly to dispense precise dots or very fine beads
of low to medium viscosity adhesives and fluids such as anaerobics,
activators, inks, gels, solvents, lubricants, chemicals and UV's.
Needle seal at tip end prevents dead space for very fast shut off when
dispensing micro dots without drips. Suited to repeat deposits,
controlled lines or potting of grease, gels, UV cure,
solvents and inks.
This needle valve is
designed to apply micro shots without drips. The valve design is
vertical with fluid flow from the side either by syringe, cartridge or
fluid line feed (from pressure pot).
Always use black fluid lines or feed
tubing with any UV cure adhesives.
|
 |
|
All valves are shipped
with a luer lock fluid elbow fitting, airline hose with
male quick connect, mounting attachment, tip cap end
seal, selection of dispensing tips and user guide.
Valves are supplied with a 1 Year warranty. Do not use
this valve for reactive adhesives and fluids such as
Cyanoacrylates. |
|
|
|
Suitable for... |
 |
Adhesives
|
 |
Gels
|
 |
Solvents |
 |
Anaerobics |
 |
UV Cure |
 |
Lubricants |
 |
Chemicals |
 |
Inks |
|
Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all
assembly fluids - from watery liquids, solvents, primers and activators
through to thick pastes, sealants, silicones, gels and epoxies.
|
Materials |
Size |
Weight |
Viscosity Range |
Repeatability |
Cycle Rate |
Flow Rate |
|
|
|
|
|
|
|
|
|
303 Stainless Steel, Teflon Seals, alu. |
111.8mm L
x 28.5mm Diameter |
4.8oz |
1 - 100,000
CPS |
±0.3% |
Up to 500 cycles/ min |
900ml/min @ 100 psi |
|
|
|
|
|
|
|
|
|
Min. Shot Size |
Mounting |
Air Press |
Max Fluid Pressure |
Material Inlet |
Material Out |
Colour |
|
|
|
|
|
|
|
|
|
0.003 cc/ ml |
1/4" 20UNC-2B |
70 psi (4.8 bar) min. |
300 psi (21 Bar) |
1/8" NPT |
Male Luer Lock |
Black |
|
|
|
|
|
|
Quantity |
Part
Code |
Lead Time |
Price |
Add |
|
|
|
|
|
|
|
1 |
TS5540-SS |
Usually ships
in 5-7
Days |
each |
 |
|
|
|
|
|
|
|
|
|
|
