JR Series Robot Programming Software
Easy to program robots for making exact dots, beads, arcs and circles of most gels, fluids, pastes and adhesives. Standard robots supplied with a teach pendant for making programs. This optional windows based software allows programing from PCs and laptops and graphics file conversion.
Janome Robot JR Points Software Adhesive Dispensing
Janome Robot JR Points Software Adhesive Dispensing

JR C-Points is user-friendly interactive programming system software with high functionality, enabling both simple and advanced teaching using the robots language.

You can create original programs (through I/O control) in the robots language by using point job commands to create command lines.

Easily create dispensing programs, just by setting the job positions for dispensing parameters such as point dispensing or line dispensing.

The original interactive programming software, (JR C-Points) lets you create, edit and save your teaching and customizing data on your PC. Cut and paste point data in the manner of spreadsheet software, set points by numerical input, and create and edit point job commands without difficulty. Also with the Point Graphic Editing Function, create and edit path data as a graphic drawing for even more convenient program teaching.  Precise point setting using DXF and Gerber data.

Point Graphic Editing Function
- Based on imported background image data (jpg), DXF or Gerber data, draw points, straight lines, circles and arcs. With the automatic approach, precisely determine even difficult positions on your PC.
- Sorting by Specified Direction Function
When using programs with multiple paths, shorten the cycle time with a function that realigns the paths based upon the order of the starting points.
- Automatic Arc Drawing Function
Circle editing is even easier with a function to set the R-axis by the angle of the radius.

Creating dispensing programs is easy: just set the job positions for dispensing parameters such as point dispensing or line dispensing.

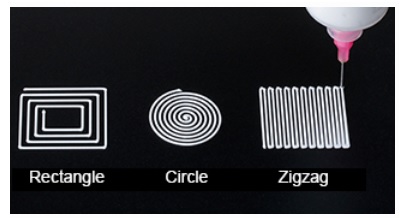

Fill-in Dispensing Function
Convenient fill-in dispensing functions which allow you to dispense like drawing a picture using only 2 points for a rectangle and 3 points for a circle.

Purging Function
Have the robot purge on a repeating cycle when holding at the work home position. Also, purge the dispensing liquid whenever you want using the optional Purge Switch.

Fragmented Dispensing Prevention Function
Set a waiting time to prevent fragmented dispensing at the beginning and spraying at the end of dispensing runs.

Purchase: JR Series Software
GBP   each ex. Vat.
Excludes carriage.
Product Code: J2000-23
Lead Time: Usually Ships 2-3
Summary: Windows based programing software for use with all J series dispensing robots. Allows user to create complex programs via a computer then transfer to robot. Create, edit, save and load. For an unlimited number of programs. Supplied on a CD-ROM disc with full software licence.
Item Qty Price GBP Add
Software 1   each
Purchase: Syringe Bracket Assembly
GBP   each ex. Vat.
Excludes carriage.
Product Code: J2000-36
Lead Time:
Summary: Universal syringe bracket assembly for JR series dispensing robots. Height and width free adjustment. Fits all industry standard 30cc and 55cc size syringe barrels. Supplied ready to install to include mounting screws and washers. Screw knob is used to secure the barrel.
Item Qty Price GBP Add
Syringe Bracket 1   each
Items are shipped in the UK by a courier on a tracked and insured service with products that are available from stock. Items on a longer lead time will be shipped as soon as they are made available.

Robots will handle all viscosity liquids from thin solvents to thick pastes. Customers use these systems for a wide range of dispense projects. Common applications include solder paste, fluxes, silicones, gels, UV cure, Cyanoacrylate & more.
Janome Robot JR Points Software Adhesive Dispensing
More Info Part Code


Power Lead Time


Price GBP Add
Dispensing robots for applying adhesives, sealants, epoxies, resins, inks, gels, pastes, solvents, UV cure and more.
J2203 Robot 3 Axis Dispensing Robot Janone J2203
3 Axis Robot
200mm x 200mm x 50mm. 700mm/sec index speed. 110/220V AC 4-5 Weeks 1   each
J2204 Robot 4 Axis Dispensing Robot Janone J2204
4 Axis Robot
200mm x 200mm x 50mm. 700mm/sec index speed. 110/220V AC 4-5 Weeks 1   each
J2303 Robot 3 Axis Dispensing Robot Janone J2303
3 Axis Robot
300mm x 320mm x 100mm. 700mm/sec index speed. 110/220V AC 4-5 Weeks 1   each
J2304 Robot 4 Axis Dispensing Robot Janone J2304
4 Axis Robot
300mm x 320mm x 100mm. 700mm/sec index speed. 110/220V AC 4-5 Weeks 1   each
