Home > Components > Tips > Precision Crimped > TS26-1




26 Gauge Dispensing Tip 1.0 Inch Long Tube

Precision stainless steel burr-free tube to moulded colour coded polypropylene hub with luer lock. Use this tip for dispensing adhesives, solvents, glues, primers, activators and others. A standard stainless shaft length of 1 Inch.

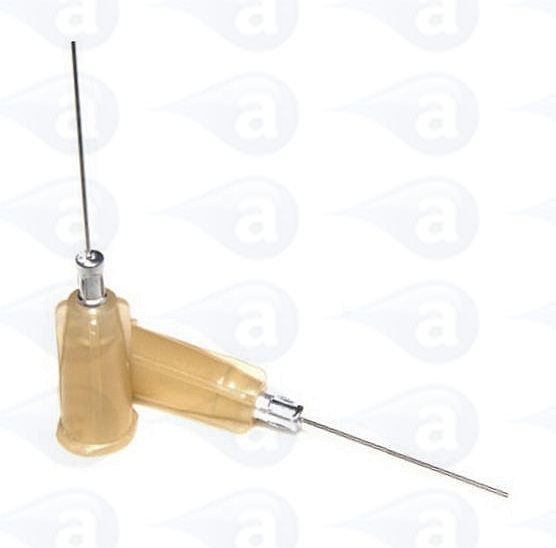

26 Gauge TS26-1 tip 1" long luer lock

The TS Series dispensing tips offer a variety of dispensing performance and flexibility options. Stainless steel tubing is cut to precise lengths and ground to be burr-free. Cut tubing is crimped into aluminium locking insert, then moulded into polyethylene hubs. Moulded hub colours correspond to gauge size. All TS Series tips secure to syringe barrels and correspond to the luer lock specification.

Tips are colour coded for gauge size. The tip uses a slightly tapered internal design where the shaft joins the hub to ease fluid flow and reduce restriction. This allows for a lower pressure to be used for dispensing liquids and pastes.

All products shipped are in sealed boxes or packs that include label with batch codes.


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

TS26-1 Tip 1.0 Inch Long

Excludes Carriage.
Lead Time:
Usually Ships 24 Hours

Summary: Dispensing nozzle tips blunt end stainless steel tube to poypro hub.

Item Qty Price GBP Add
TS26-1 50   pack
TS26-1-500 500   pack
TS26-1-1000 1000   pack

Specifications

Materials: Polypro Hub, Stainless Steel Tube
Hub Colour: Beige
Tip Tube Length: 25.4mm (1.0 Inch)
Tip Tube ID: 0.20mm (0.010 Inch)
Tip Tube OD: 0.51mm (0.020 Inch)
Connection Type: Double Helix Luer Lock

Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Straight
Description: Crimped Precision Tip
Features: Silicone-Free, Industrial Grade

Pack Sizes: 50, 500 or 1000


Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates. The items listed on this page are held in stock.

Typical Applications:- Deposits of solder paste or solder flux, grease to bearings, potting components with epoxies, RTV to edge seams, silicone shots to bond products, gasket sealant repair, aircraft maintenance work, braze pastes, solvents, threadlockers, general adhesive applications.
