The F System dual system is available in 200ml and 400ml sizes. All systems - 200ml and 400ml, are available in 1:1, 2:1, 4:1 and 10:1 mix ratios by volume and take a variety of mixer nozzles.

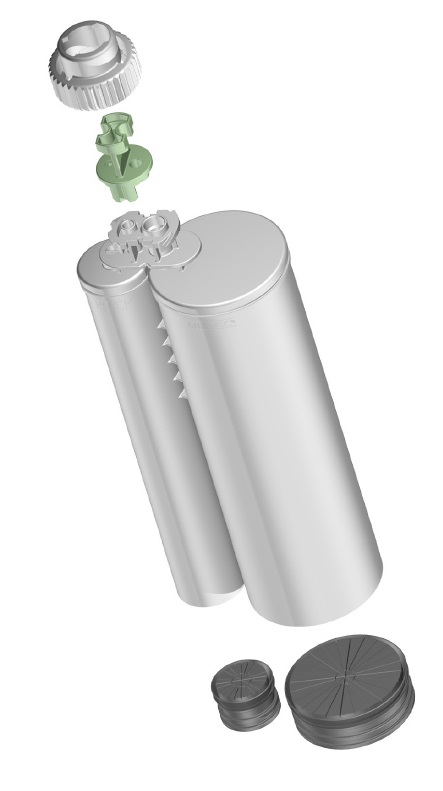

Both components are stored in the two chambers of the dual cartridge system and are then dispensed simultaneously through the static mixer, where thorough mixing takes place. This 400ml version is the 4:1 volumetric ratio. Manufactured in polypro. The kits come with the following parts:

Cartridge with capacity of 400ml maximum - quantity of 50 parts.
Piston A - quantity of 50 parts.
Piston B - quantity of 50 parts.
Piston plug - quantity of 100 parts (in pistons).
Nose plug - quantity of 50 parts.
Retaining nut (nom. Dia. 3/16" to 3/8") - quantity of 50 parts.

The static mixer nozzles are available in different sizes with different volumes and a variety of mixing elements. One of the main benefits of the system is that not all of the contents of the cartridge have to be mixed at a time. When use has stopped, the nozzle is removed and the the cartridge can be easily closed and stored for further use, without the material curing.

The piston plugs are inserted into piston A and piston B once the cartridge has been filled. This allows air to escape through the pistons when inserting. These products are compatible with either manual or pneumatic dual cartridge guns.
