Dispensing robots
automate most fluid assembly processes ensuring fast and repeatable
deposits without mess, waste or error. For making repeat dots, beads, arcs, circles
and potting of almost any fluid, adhesive or paste. Easy to setup and
run and these systems are supplied complete.
Robots provide precise control
over adhesive placement, from exact beads, to repeat timed dots or potting
of components. Programming is simple via a teach pendant. Even complex
patterns can be created simply. Storage is to internal flash memory allowing
for up to 999 different programs to be created.
The AD series bench
top dispensing robots are a cost effective solution combining high level
programming technology with precision placement engineering. The AD series
are a compact, heavy duty design, which are easily programmed using simple
step-by-step instructions. A robust cast construction provides additional
stability when working to fine tolerances. Systems will dispense virtually
any assembly fluid and adhesive or liquid paste, from thin, watery liquids
and solvents to thick gels, silicones and brazing pastes. All are applied
quickly, accurately to reduce waste, mess and hand fatigue.
Programming is simple with easy to follow english language instructions.
Commands are followed and responses entered by a Teach Pendant. An LCD
display prompts the user for a data input and once confirmed, automatically
displays the next instruction. By this method a program can be created
quickly and simply. All machines include 4 I/O signal interface for
connection to tools and controllers. Supplied with a timed pneumatic
dispenser, I/O cable, teach pendant, power cables, airline hoses, syringe
mounting bracket, 30cc/55cc barrel pack, tip pack, user guide.
High speeds are achieved reducing time spent hand
applying adhesives. Accuracy of placement and volume of fluid ensures zero
waste, mess and error. Robots will dispense most materials including
adhesives, pastes, epoxies, gels, silicones, sealants, RTV's, oils, grease,
anaerobics, cyanoacrylates, inks and lubricants.
Data transfer and file import to robot teach
pendant via USB - supports CAD, Corel Draw, etc. To generate formats such as
DXF, JPG, BMP, NC, AI, scanner, etc. Software supports programming array
pattern, graphic browsing, 3D arc, common graphic library and group editing.
Mini SD file memory with high speed 2GB capacity. Automatic gel prevention
mode to avoid curing glue setting in the nozzle or tip.

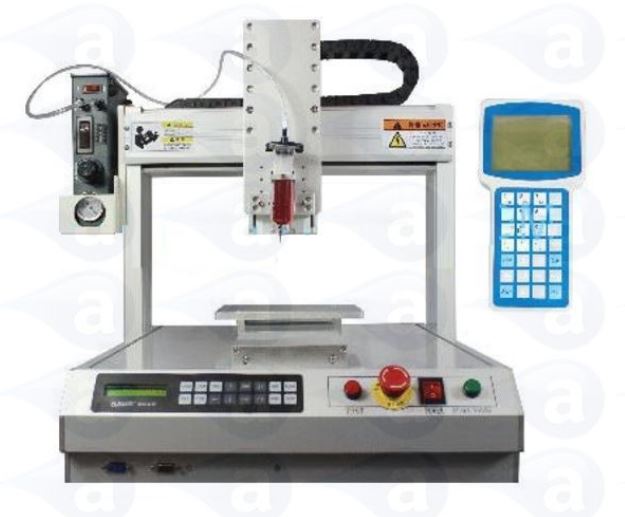

AD400N Robot
GBP each ex. Vat. Excludes carriage.
Product Code: AD400N
Lead Time: Around 1-2 Weeks
Summary: Cost effextive XYZ 3 axis robot dispenser
system with electronic
teach LCD pendant, digital pneumatic dispenser & syringe barrel & needle tip
kits. We ship this with
accessories ready to use out of the box. It is CE approved & includes a
full user guide.
Item
Qty
Price
GBP
Add
400mm Robot
1
each
Items
are shipped in the UK by a courier on a tracked and
insured service with products that are available from stock. Items on a
longer
lead time will be shipped as soon as they are made available.
Robots will handle all viscosity liquids from thin solvents to thick
pastes. Customers use these systems for a wide range of dispense projects.
Common applications include solder paste, fluxes, silicones, gels, UV cure,
Cyanoacrylate & more.
1 x
Base Robot with power cord
1 x LCD Teach Pendant with cable
1 x User Guide - Hardware & Software
1 x 30/55cc Syringe Mounting bracket
1 x TS250 Pneumatic controller
1 x TS250 airline kit/ power kit
1 x I/O Cable to controller
1 x Syringe Kit (30cc and 55cc sizes)
1 x Tip Kit (145 assorted tips)
