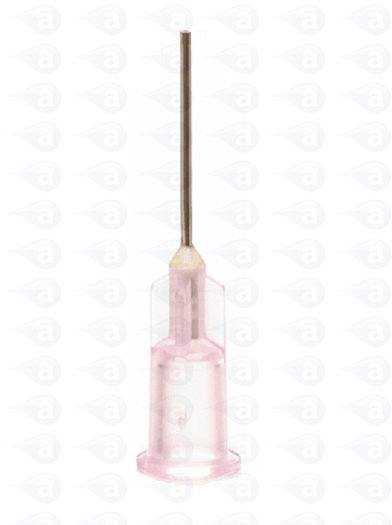

20 Gauge Dispensing Tip 1 Inch Long Tube

High quality stainless steel burr-free tube to moulded colour coded polypropylene hub with double-helix luer lock. Use this tip for dispensing adhesives, solvents, glues, primers, activators and others. A precision cut stainless shaft length of 1 Inch (25.4mm).

SE420100PK Tip 20 Gauge 1" Long Adhesive Dispensing

SE needle series consist of a stainless-steel shaft with a luer lock polypropylene hub. This quality line of dispensing needles is burr-free, and electro-polished shaft for unobstructed and consistent material flow.

Suitable for dispensing most fluids, adhesives and solvents. Certified silicone-free, chloride-free and industrial grade safe for use to 100 psi.

Tips are colour coded for gauge size. The tip features a tapered internal design where the shaft meets the hub to improve fluid flow and reduce restriction. This allows for a lower pressure to be used for dispensing gels and pastes.

Use with luer lock and luer slip syringes, air-powered dispensers, syringe barrels, bottles, fittings and dispensing shot valves. Silicone-free plastics ensure sensitive adhesives applied with these parts will not become contaminated during use.

All products shipped are in sealed boxes or packs that include label with batch codes.


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

SE420100PK Tip

Excludes Carriage.
Lead Time:
Ships Within 24 Hours

Summary: Dispensing nozzle tips blunt end stainless steel tube to polypro hub.

Item Qty Price GBP Add
SE420100PK 50   pack
SE420100 1000   pack

Specifications

Materials: Polypro Hub, Stainless Steel Tube
Hub Colour: Pink
Tip Tube Length: 25.4mm (1.0 Inch)
Tip Tube ID: 0.61mm (0.024 Inch)
Tip Tube OD: 0.91mm (0.036 Inch)
Connection Type: Luer Lock

Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Straight
Description: General Purpose Tip
Features: Silicone-Free, Industrial Grade

Pack Sizes: 50 or 1000


Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates. The items listed on this page are held in stock.

Typical Applications:- Deposits of solder paste or solder flux, grease to bearings, potting components with epoxies, RTV to edge seams, silicone shots to bond products, gasket sealant repair, aircraft maintenance work, braze pastes, solvents, threadlockers, general adhesive applications.
