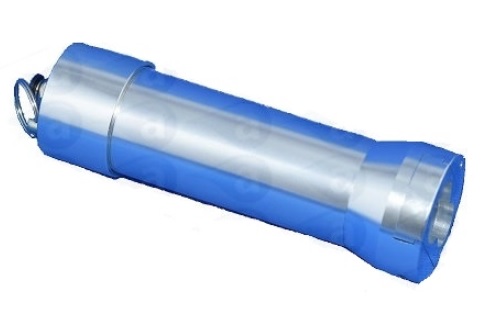

50ml 10:1 Ratio Cartridge Dispensing System

Use this tool when connected to any air powered dispenser with vacuum. For use with 50ml 10:1 ratio side by side resin cartridges. This is rod driven so provides a very controlled pressure on the dual pistons in the cartridge.

ADV-50-11 50ml Equaliser Retainer 1:1 Epoxy Pneumatic
ABM-25M10R 50ml Oval Dual 10:1 Cartridge Gun


For epoxies, silicones, polyurethanes, adhesives and other materials supplied in 50ml two part, side-by-side 10:1 ratio mix cartridges with the use of a static mixing nozzle. This is for the Oval or Roundback (Corian) type cartridges.

The lightweight and durable construction of our pneumatic retainers make them well suited for many assembly operations in various markets such as aerospace, electronics, construction and automotive. This tool is very lightweight at just 425g.

Connect this tool to an air dispenser such as the ADL100, ADL810, TS9150, 1000T, TS250, TS350 or AD1001 . The dual cartridge is pushed into the assembly and locked in place. Air pressure is dispensed onto the rods pushing down on the pistons within the cartridge. The system is supplied with an airline hose connector that attaches directly to our timed pneumatic dispensers with vacuum suck-back.

When the cartridge is empty, use the vacuum suck-back on your dispenser to draw the plungers back. Fits comfortably into the hand for use over long periods of time and minimum risk of repetitive strain injury.

The product will work with the shape of cartridge top left and not the version below that.

All products are CE approved product with a 1 Year warranty. This tool works with all pre-filled 50ml oval shape adhesive cartridges 10:1 ratio.


Dual Cartridge 50ml Retainer

GBP   each ex. Vat.
Excludes carriage.
Lead Time:
Ships Within 24 Hours

Summary: 50ml 10:1 Dispensing System for use with air powered dispensers.

Code Ratio Price GBP Add
ADV-50-101R 10:1   each

Specifications

Max Pressure: 100 PSI
Weight: 425 Gram
Length: 160mm
Width: 54mm
Cartridge Size:
50ml
Cartridge Ratio: 10 to 1 By Volume
Material: Aluminium/ Stainless Steel
Colour: Silver


Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications:- Deposits of two-part resins, epoxies, polyurethanes, silicones, adhesives and other mixed assembly fluids.

ADV-50-101R Air Retainer Features

Fits 50ml 10:1 oval shape dual epoxy cartridges
Easy cartridge load and unload mechanism
Controlled fast deposit or consistent beads
Lightweight yet very robust construction
Fast air exhaust reduces drips or ooze
Use on air dispensers with vacuum suck-back

B-System 2K Cartridges 25ml/ 50ml Size
More Info Part Code

Description

Lead Time Price GBP Add
b-system dual syringe cartridge adhesive dispensing 116373
Dual Component
Cartridge Sets
PBT
Cartridge Size: 50ml
Mix Ratio: 10:1 (Oval Shape)
Type: Dual Hole Nozzle Outlet
For: Use with Dual Applicator Guns
Pack Size: 50 Cartridges/ 100 Pistons
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
MBHX Mixer Nozzle Sulzer Mixpac  MBHX03-16S
Cap Lock Orange
Round Mixer
Stepped End
Mix Ratios: 4:1 and 10:1
Number Of Elements:  16
Inner Diameter: 3.2mm
Length: 77mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
MBHX Mixer Nozzle Sulzer Mixpac  MBHX04-16D
Cap Lock Orange
Round Mixer
Straight End
Mix Ratios: 4:1 and 10:1
Number Of Elements:  16
Inner Diameter: 4.2mm
Length: 86.2mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
MBHX Mixer Nozzle Sulzer Mixpac  MBHX04-16S
Cap Lock Orange
Round Mixer
Stepped End
Mix Ratios: 4:1 and 10:1
Number Of Elements:  16
Inner Diameter: 4.2mm
Length: 86.2mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
MBHX Mixer Nozzle Sulzer Mixpac  MBHX05-12D
Cap Lock Orange
Round Mixer
Straight End
Mix Ratios: 4:1 and 10:1
Number Of Elements:  12
Inner Diameter: 5.4mm
Length: 83mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
MBHX Mixer Nozzle Sulzer Mixpac  MBHX05-16T
Cap Lock Orange
Round Mixer
Tapered End
Mix Ratios: 4:1 and 10:1
Number Of Elements:  16
Inner Diameter: 5.4mm
Length: 111mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
MBQX Mixer Nozzle Sulzer Mixpac  MBQX05-16L
Cap Lock Orange
Square Mixer
Luer End
Mix Ratios: 4:1 and 10:1
Number Of Elements:  16
Inner Diameter: 5.3mm
Length: 90.7mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
MBQX05-24L Mixer Nozzle Sulzer Mixpac  MBQX05-24L
Cap Lock Orange
Square Mixer
Luer End
Mix Ratios: 4:1 and 10:1
Number Of Elements:  24
Inner Diameter: 5.3mm
Length:122mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
MBHX Mixer Nozzle Sulzer Mixpac  MBHX05-20T
Cap Lock Orange
Round Mixer
Tapered End
Mix Ratios: 4:1 and 10:1
Number Of Elements:  20
Inner Diameter: 5.4mm
Length: 132.8mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
MBHX Mixer Nozzle Sulzer Mixpac  MBHX06-16D
Cap Lock Orange
Round Mixer
Straight End
Mix Ratios: 4:1 and 10:1
Number Of Elements:  16
Inner Diameter: 6.5mm
Length: 120.5mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
MBHX Mixer Nozzle Sulzer Mixpac  MBHX06-16T
Cap Lock Orange
Round Mixer
Tapered End
Mix Ratios: 4:1 and 10:1
Number Of Elements:  16
Inner Diameter: 6.5mm
Length: 131mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
MBHX Mixer Nozzle Sulzer Mixpac  MBHX06-20T
Cap Lock Orange
Round Mixer
Tapered End
Mix Ratios: 4:1 and 10:1
Number Of Elements:  20
Inner Diameter: 6.5mm
Length: 157mm
Pack Size: 100 Nozzles
Ships Within 24 Hours   pack
More Info Part Code

Description

Lead Time Price GBP Add
TS250
Timed Shot
Air Dispenser
Timer: 0.02 to 60 Second
Output Air: 0 to 100 psi
Type: Dispenser to Operate ADV-50-41
For: Manual or Automated Assembly
Colour: Black
Ships Within 24 Hours   each
