Home > Components > Tips > Precision Crimped > TS20-1




20 Gauge Dispensing Tip 1 Inch Long Tube

Precision stainless steel burr-free tube to moulded colour coded polypropylene hub with luer lock. Use this tip for dispensing adhesives, solvents, glues, primers, activators and others. A standard stainless shaft length of 25.4mm.

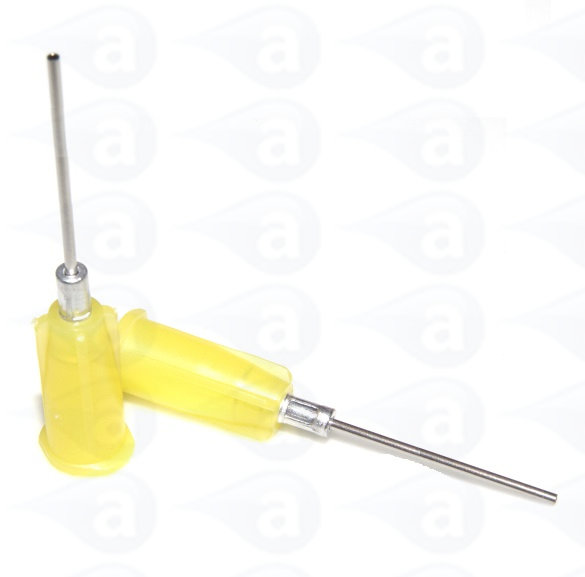

TS20-1 Dispense Tip 1" Long Yellow Luer Lock

The TS Series dispensing tips offer a variety of dispensing performance and flexibility options. Stainless steel tubing is cut to precise lengths and ground to be burr-free. Cut tubing is crimped into aluminium locking insert, then moulded into polyethylene hubs. Moulded hub colours correspond to gauge size. All TS Series tips secure to syringe barrels and correspond to the luer lock specification.

Tips are colour coded for gauge size. The tip uses a slightly tapered internal design where the shaft joins the hub to ease fluid flow and reduce restriction. This allows for a lower pressure to be used for dispensing liquids and pastes.

All products shipped are in sealed boxes or packs that include label with batch codes. These items ship from stock.


Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

TS20-1 Tip 1 Inch Long

Excludes Carriage.
Lead Time:
Usually Ships 24 Hours

Summary: Dispensing nozzle tips blunt end stainless steel tube to poypro hub.

Item Qty Price GBP Add
TS20-1 50   pack
TS20-1-500 500   pack
TS20-1-1000 1000   pack

Specifications

Materials: Polypro Hub, Stainless Steel Tube
Hub Colour: Yellow
Tip Tube Length: 25.4mm (1.0 Inch)
Tip Tube ID: 0.71mm (0.024 Inch)
Tip Tube OD: 1.14mm (0.045 Inch)
Connection Type: Double Helix Luer Lock

Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Straight
Description: Crimped Precision Tip
Features: Silicone-Free, Industrial Grade

Pack Sizes: 50, 500 or 1000


Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates. The items listed on this page are held in stock.

Typical Applications:- Deposits of solder paste or solder flux, grease to bearings, potting components with epoxies, RTV to edge seams, silicone shots to bond products, gasket sealant repair, aircraft maintenance work, braze pastes, solvents, threadlockers, general adhesive applications.


Crimped Tips


  TS250 Digital Timed Dispenser Techcon     Syringe barrels   Dispensing tips
  Dispensers & Valve Controllers     Consumables
Syringes
  Dispensing
Tips


        Techcon Techkit cartridges
  Cartridges & Plungers     Dispensing Nozzles   Techkit Cartridges

  Literature

  Full Catalogue
  Syringe Barrels
  Dispense Tips
  Dual Cartridge & Mixers
  Dual Air Guns
  Cartridges & Nozzles
  Nozzles Brochure
  Dispense Guns

This product ships direct from stock


TS crimped luer lock dispensing tips TS Series crimped luer lock dispensing tip

0.5 Inch Long (12.7mm) Tips
Gauge Part Code Colour Pack ID Inch ID mm Price Add
14 TES14-1/2 Olive 50 0.063" 1.60mm GBP
14 TES14-1/2 Olive 500 0.063" 1.60mm GBP
14 TES14-1/2 Olive 1000 0.063" 1.60mm GBP
15 TES15-1/2 Grey 50 0.054" 1.37mm GBP
15 TES15-1/2 Grey 500 0.054" 1.37mm GBP
15 TES15-1/2 Grey 1000 0.054" 1.37mm GBP
18 TS18-1/2 Pink 50 0.033" 0.84mm GBP
18 TS18-1/2 Pink 500 0.033" 0.84mm GBP
18 TS18-1/2 Pink 1000 0.033" 0.84mm GBP
18 TES18-1/2 Green 50 0.033" 0.84mm GBP
18 TES18-1/2 Green 500 0.033" 0.84mm GBP
18 TES18-1/2 Green 1000 0.033" 0.84mm GBP
19 TS19-1/2 Brown 50 0.028" 0.71mm GBP
19 TS19-1/2 Brown 500 0.028" 0.71mm GBP
19 TS19-1/2 Brown 500 0.028" 0.71mm GBP
20 TS20-1/2 Yellow 50 0.024" 0.61mm GBP
20 TS20-1/2 Yellow 500 0.024" 0.61mm GBP
20 TS20-1/2 Yellow 1000 0.024" 0.61mm GBP
21 TS21-1/2 Green 50 0.020" 0.51mm GBP
21 TS21-1/2 Green 500 0.020" 0.51mm GBP
21 TS21-1/2 Green 1000 0.020" 0.51mm GBP
22 TS22-1/2 Black 50 0.016" 0.41mm GBP
22 TS22-1/2 Black 500 0.016" 0.41mm GBP
22 TS22-1/2 Black 1000 0.016" 0.41mm GBP
23 TS23-1/4 Light Blue 50 0.013" 0.33mm GBP
23 TS23-1/4 Light Blue 500 0.013" 0.33mm GBP
23 TS23-1/4 Light Blue 1000 0.013" 0.33mm GBP
23 TS23-1/2 Light Blue 50 0.013" 0.33mm GBP
23 TS23-1/2 Light Blue 500 0.013" 0.33mm GBP
23 TS23-1/2 Light Blue 1000 0.013" 0.33mm GBP
25 TS25-1/2 Blue 50 0.010" 0.25mm GBP
25 TS25-1/2 Blue 500 0.010" 0.25mm GBP
25 TS25-1/2 Blue 1000 0.010" 0.25mm GBP
26 TS26-1/2 Beige 50 0.010" 0.25mm GBP
26 TS26-1/2 Beige 500 0.010" 0.25mm GBP
26 TS26-1/2 Beige 1000 0.010" 0.25mm GBP
27 TS27-1/4 Grey 50 0.008" 0.20mm GBP
27 TS27-1/4 Grey 500 0.008" 0.20mm GBP
27 TS27-1/4 Grey 1000 0.008" 0.20mm GBP
27 TES27-1/2 Clear 50 0.008" 0.20mm GBP
27 TES27-1/2 Clear 500 0.008" 0.20mm GBP
27 TES27-1/2 Clear 1000 0.008" 0.20mm GBP
30 TS30-1/4 Lavender 50 0.006" 0.15mm GBP
30 TS30-1/4 Lavender 500 0.006" 0.15mm GBP
30 TS30-1/4 Lavender 1000 0.006" 0.15mm GBP
30 TS30-1/2 Lavender 50 0.006" 0.15mm GBP
30 TS30-1/2 Lavender 500 0.006" 0.15mm GBP
30 TS30-1/2 Lavender 1000 0.006" 0.15mm GBP
30 TS30-5/16 Lavender 50 0.006" 0.15mm GBP
30 TS30-5/16 Lavender 500 0.006" 0.15mm GBP
30 TS30-5/16 Lavender 1000 0.006" 0.15mm GBP

1.0 Inch Long (25.4mm) Tips

Gauge Code Colour Pack ID Inch ID mm Price Add
14 TES14-1 Olive 50 0.063" 1.60mm GBP
14 TES14-1 Olive 500 0.063" 1.60mm GBP
14 TES14-1 Olive 1000 0.063" 1.60mm GBP
15 TES15-1 Grey 50 0.063" 1.60mm GBP
15 TES15-1 Grey 500 0.063" 1.60mm GBP
15 TES15-1 Grey 1000 0.063" 1.60mm GBP
18 TS18-1 Pink 50 0.033" 0.84mm GBP
18 TS18-1 Pink 500 0.033" 0.84mm GBP
18 TS18-1 Pink 1000 0.033" 0.84mm GBP
18 TS18-1-1/2 Pink 50 0.033" 0.84mm GBP
18 TS18-1-1/2 Pink 500 0.033" 0.84mm GBP
18 TS18-1-1/2 Pink 1000 0.033" 0.84mm GBP
19 TS19-1 Brown 50 0.028" 0.71mm GBP
19 TS19-1 Brown 500 0.028" 0.71mm GBP
19 TS19-1 Brown 1000 0.028" 0.71mm GBP
20 TS20-1 Yellow 50 0.024" 0.61mm GBP
20 TS20-1 Yellow 500 0.024" 0.61mm GBP
20 TS20-1 Yellow 1000 0.024" 0.61mm GBP
21 TS21-1 Green 50 0.020" 0.51mm GBP
21 TS21-1 Green 500 0.020" 0.51mm GBP
21 TS21-1 Green 1000 0.020" 0.51mm GBP
22 TS22-1 Black 50 0.016" 0.41mm GBP
22 TS22-1 Black 500 0.016" 0.41mm GBP
22 TS22-1 Black 1000 0.016" 0.41mm GBP
23 TS23-1 Light Blue 50 0.013" 0.33mm GBP
23 TS23-1 Light Blue 500 0.013" 0.33mm GBP
23 TS23-1 Light Blue 1000 0.013" 0.33mm GBP
26 TS26-1 Beige 50 0.010" 0.25mm GBP
26 TS26-1 Beige 500 0.010" 0.25mm GBP
26 TS26-1 Beige 1000 0.010" 0.25mm GBP
