Peristaltic Pump Timed Bench Dispenser
Precision fluid dispensers offer higher levels of control than hand syringes, squeeze bottles, swabs and spatulas often found with manual assembly processes. Use this system for low to medium viscosity liquids, Cyanoacrylate adhesives, primers, activators and many other fluids.

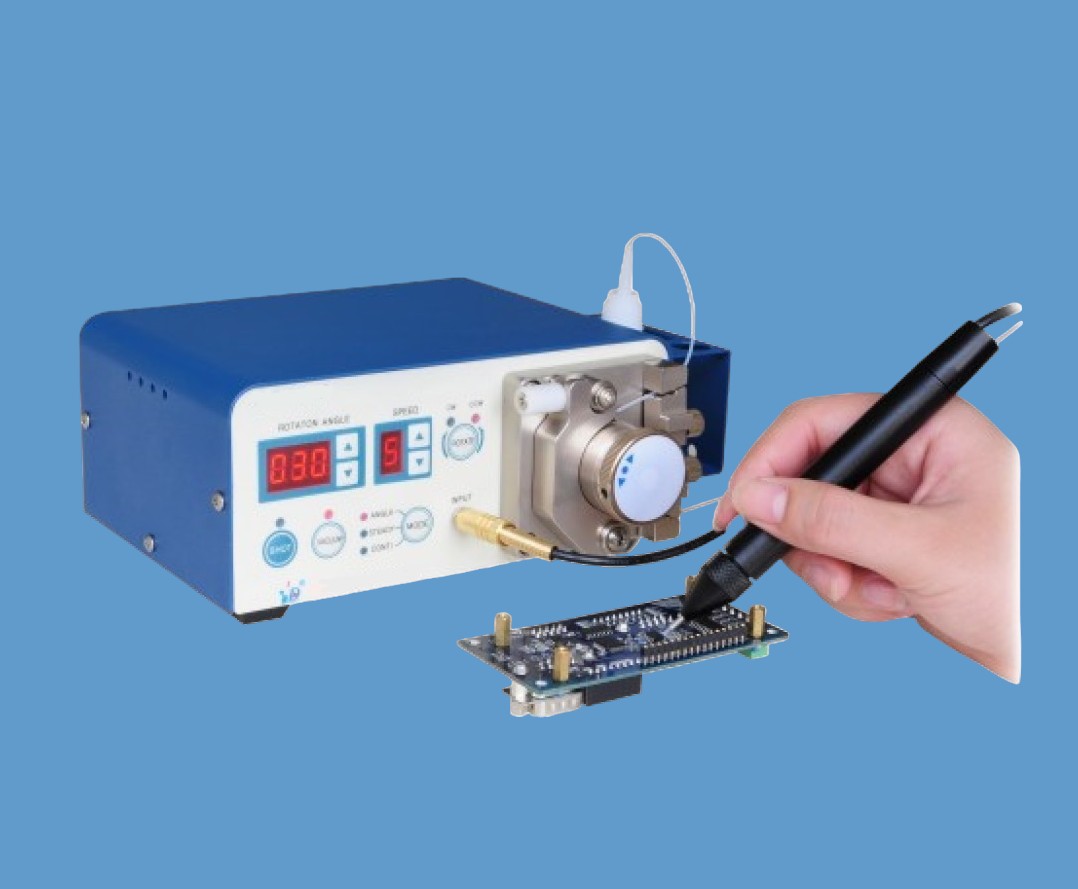

Peristatlic Pump Cyanoacrylate Dispenser DISP-5600

Peristaltic Peristaltic pump dispensers transfer low viscosity liquids by pressure displacement applied by a turning rotor against a PTFE tube carrying the material. Usually these pumps are selected because the liquids might be hazardous or difficult to work with where it is preferable to limit any operator exposure. Another reason is that peristaltic pumps are completely air free.

The ADL-DISP5600 peristaltic pump is a type of positive displacement dispensing machine used for pumping a variety of materials. The fluid is contained within a flexible Teflon tube fitted inside a circular pump casing. The special rotor turns and compresses the flexible tube thus forcing the fluid to be pumped to move through the tube.

The digital timer allows you to dispense accurate and repeated amounts of fluid every time. The pumped fluid contacts only the inside surface of the tubing. There are no other valves, O-rings, seals or packing's to worry about in a peristaltic pump so it is zero maintenance.

No requirement for compressed air. Liquids are drawn direct from any bottles, cans, manufacturers bottles and along the supplied feed tubing without fatigue or error. By not using compressed air, moisture sensitive adhesives such as Cyanoacrylates will perform better and will not prematurely cure or frost in the bottles.

This system is supplied with a starter kit including PTFE tubing selection, electric finger switch, power supply and user guide. And we'll assist with full technical support to ensure a quick setup.


Applications

Make dots of adhesives Dotting
Make beads of adhesives Beading
Potting of components Potting
Bonding of components Bonding
Sealing of components Sealing
Dispense lubricants and greases Gluing

  Part ID: ADL-DISP5600
  Type: Peristaltic Pump Air Free
  Dispenser Initiate: Electric finger switch
  Forward Timer Mode: 0.01 - 99.9 s
  Reverse Timer Mode: 0.01 - 99.9 s
  Minimum Dot Size: 0.0001cc
  Rotor Speed: Up to 120 RPM
  Max Viscosity: Up to 10,000 cps fluids
  Dispense Modes: Timer or steady mode (continuous)
  Size: 180 x 171 x 82 mm
  Weight: 2.85 kg
  Input Voltage: 220V AC (Or 110V AC version)
  Warranty: 1 Year
  Cycle Rate: Up to 300 cycles/minute
  Meets or Exceeds: CE



More Info Part Code

Description / Quantity

Info Price GBP Add
DISP5600
220V Version
Timed Shot Dispenser
Tariff Code: 90269000
Lead Time: 24 Hours
DISP5600 Dispenser (1)
Power Cord (1)
Electric Foot Switch (1)
Electric Finger Switch (1)
Nozzle Tube Wand Holder (1)
Assorted Tubing/ Nozzles (5)
    in stock
Catalog
Disp
Tips
  each

DISP5600E
110V Version
Timed Shot Dispenser
Tariff Code: 90269000
Lead Time: 1-2 Weeks
DISP5600 Dispenser (1)
Power Cord (1)
Electric Foot Switch (1)
Electric Finger Switch (1)
Nozzle Tube Wand Holder (1)
Assorted Tubing/ Nozzles (5)
    in stock
Catalog
Disp
Tips
  each

    Ultra low maintenance design
Simple to setup and operate
  No external air source required - electric only
  Use for liquids, printing ink, electrolyte, acids, etc.
  Ideal for CA adhesives using PTFE tubing
 Suitable for small shots and continuous operation
  Adjustable rotor speed in volume 0-9
  Self priming from bottle or jar with reverse action
  For smaller volume dispensing at lower flow rates, Teflon tubing & tips are used
  System operated by finger switch on holder or from button on display front or foot switch
Slotted timer for precision repeat dispense


Items are shipped in the UK by a courier on a tracked and insured service with products that are available from stock. Items on a longer lead time will be shipped as soon as they are made available.

General Use: Dispensers can be used in a factory production or assembly department to assemble products quickly and without material waste. They can be set to make repeat deposits of materials or controlled beads. These dispensers will handle watery liquids, Cyanoacrylate adhesives, UV cure adhesives, solvents and other low viscosity materials.

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

PTFE Tubing Priced at per 10 metres - Stock Items
Gauge Part Code Description Length ID mm OD mm Price Add
10 TT-10G PTFE Tube Natural 10 Metre 2.69 3.29 GBP
11 TT-11G PTFE Tube Natural 10 Metre 2.41 3.01 GBP
12 TT-12G PTFE Tube Natural 10 Metre 2.16 2.76 GBP
13 TT-13G PTFE Tube Natural 10 Metre 1.93 2.53 GBP
14 TT-14G PTFE Tube Natural 10 Metre 1.68 2.28 GBP
15 TT-15G PTFE Tube Natural 10 Metre 1.50 2.10 GBP
16 TT-16G PTFE Tube Natural 10 Metre 1.34 1.94 GBP
17 TT-17G PTFE Tube Natural 10 Metre 1.19 1.79 GBP
18 TT-18G PTFE Tube Natural 10 Metre 1.07 1.67 GBP
19 TT-19G PTFE Tube Natural 10 Metre 0.96 1.56 GBP
20 TT-20G PTFE Tube Natural 10 Metre 0.86 1.46 GBP
21 TT-21G PTFE Tube Natural 10 Metre 0.81 1.31 GBP
22 TT-22G PTFE Tube Natural 10 Metre 0.71 1.21 GBP
23 TT-23G PTFE Tube Natural 10 Metre 0.66 1.16 GBP
24 TT-24G PTFE Tube Natural 10 Metre 0.56 1.06 GBP
26 TT-26G PTFE Tube Natural 10 Metre 0.46 0.86 GBP
28 TT-28G PTFE Tube Natural 10 Metre 0.38 0.78 GBP
30 TT-30G PTFE Tube Natural 10 Metre 0.30 0.70 GBP
