Our
fluid tanks keep a steady fluid pressure, eliminate fluid
contamination and evaporation, and eliminate fumes. Tanks
are available with 0-60 psi, 0-75 psi and 0-100 psi air
regulators or without a gauge ready for direct air feed.
This tank version is supplied complete with fluid lines and
fittings and is ideally suited for use with Cyanoacrylate
and Anaerobic bottles up to 500g size. The bottle is placed
directly inside.

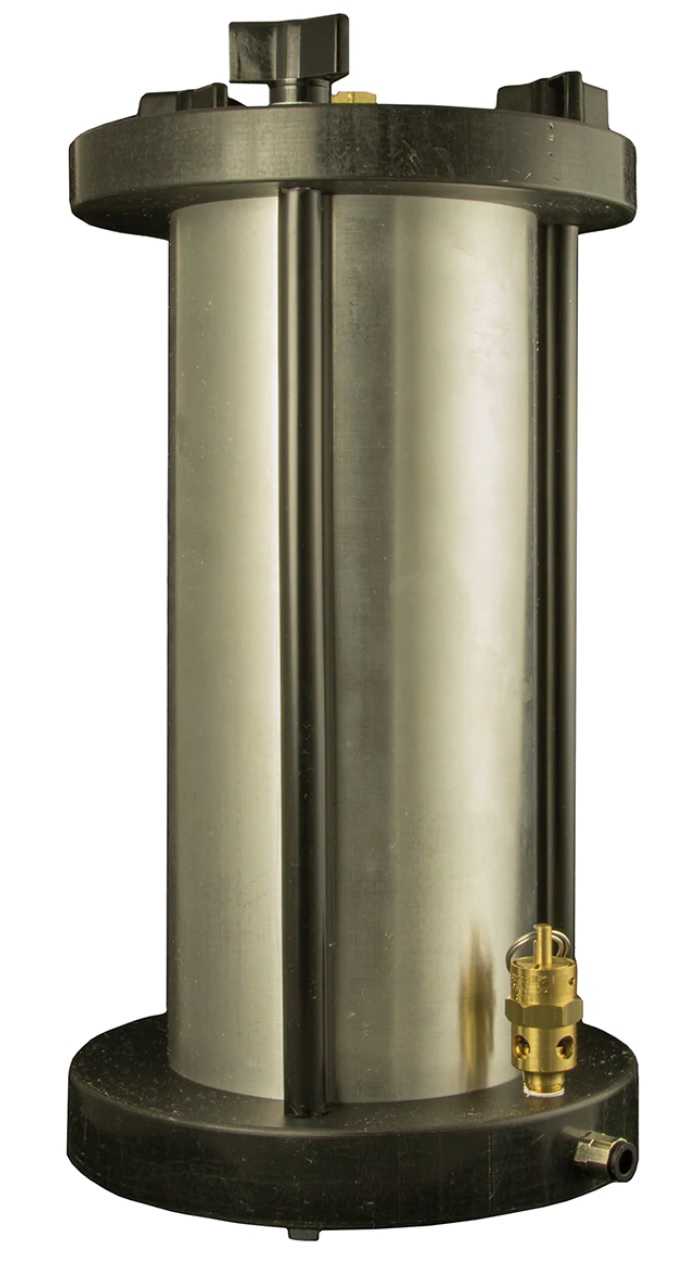

Pressure
pot for cyanoacrylates, UV's, anaerobics and other low to medium
viscosity fluids. No pouring needed; you just place the bottle right
into the tank, seal the lid with wing nuts, and pressurise. Includes
an air port to pressurize the tank, and a pop-off valve set at
around 75 psi for safety.
Accepts adhesive bottles 250gm and
500gm or containers placed inside the chamber. Comes with 1/4" OD
tubing kit as well as a 1/8" connector with dip tube for use with
standard fluid lines. Easy connect to any adjustable air regulator
with 6mm quick fitting.
Thread on lid works with standard fluid lines
but also allows for 3/8" OD fitting and 3/8" OD tubing to be used or
1/4" OD fitting with 1/4" OD tubing. 6mm ID air feed inlet fitting.
All products are CE approved, certified
industrial grade and are covered by our no-quibble One Year
warranty. All products shipped are in sealed boxes or
packs that include label with batch codes as well as full user guides.
Specifications:
Part ID:TS21205
Materials: Steel/ Aluminium Product Colour:
Silver Body/ Black Lid Outer Dimensions: 88.6mm W x 254mm H
Inner Tank Size: 82.55mm W x 181mm H Weight: 1.0 kg
Maximum Pressure: Up to 75 PSI (5 Bar) Meets: CE Approval
Warranty: 1 Year Commodity Tariff Code: 90269000
Manufacturer: ADL
Suitable for ...
General Adhesives
& Glues
Flowable Liquids
Cyanoacrylate
Adhesives
Threadlocker Adhesives
Greases & Lubricants
UV Cure
Adhesives
Solvents & Primers
Adhesive Dispensing Ltd
provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents,
primers and activators through to thick pastes, sealants,
silicones, gels and epoxies.
Order Securely ...
More Info
Part Code
Description
Price GBP
Add
Summary: Standard tank unit
with lid, stainless steel feed tube
fitting, 6mm OD flexible tube, user guide. CE approved.
TS1205
Tank Info
Precision Tips
Catalogue
Top Ported Pressure Pot Tank
Pressure: 0 to 75 PSI Max.
Size: 500 Gram Chamber Capacity
Materials: Steel/
Aluminium
Warranty: 1 Year
Stock:
in stock
each
Delivery: Products
shipped by courier on a tracked and
insured service for stock items. Products on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
ship dates.
Typical Applications:
Feeding controlled flow of UV cure glues, Cyanoacrylate adhesives, solvents, primers,
inks, oils, flowable liquids, threadlock adhesives and many others.
Related Products ...
More Info
Part Code
Description
Price GBP
Add
TS250
Info
Training
Catalogue
Digital Timed Shot Valve
Controller
Timer: 0.02 to 60 Second
Adjustable
Actuation: Foot Pedal or I/O Link
For: Air Operated Dispensing
Valves
Warranty: 1 Year
Stock:
in stock
each
More Info
Part Code
Description
Price GBP
Add
TS1212 Pinch Valve for
controlled dispensing of adhesives, liquids
and assembly fluids. Use with TS250 digital
valve controller and pressure pot below for a
complete system. Operate using the foot
switch provided or link externally to a PLC
or remote source for full automation.
TS1212
Info
User Guide
Repair Guide
Dispensing Valve for liquids and
glues
Wetted Parts: Polyethylene
Actuation: Air Open/ Spring Close
For: Low to Medium Viscosity
Materials
Warranty: 1 Year
Stock:
in stock
each
Items
are shipped by a courier on a tracked and
insured service for all items that are available from stock. Items on a
lead time will be shipped as soon as they are available.
Tanks will handle low to medium viscosity liquids up to 25,000
CPS. Includes thin solvents, liquid, fluxes, flowable silicones,
Cyanoacrylate, UV cure, inks, paints, lubricants, threadlockers
& more
