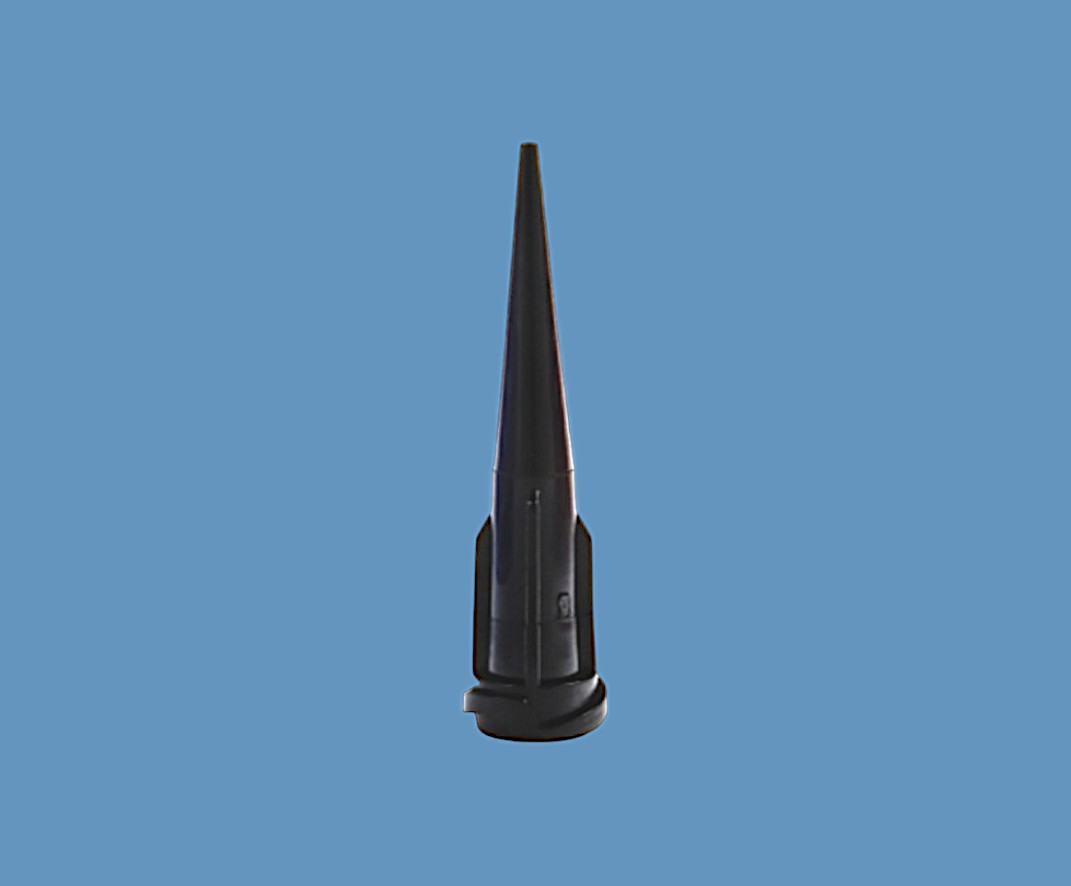

Smooth Flow Tapered Dispense Tip 25 Gauge Black UV |
|
A range of dispensing tips for
use with syringe barrels, dispense bottles, dispense valves
and robots. All tips are industrial grade safe for use to
100 psi air pressures and are certified silicone-free. Luer
lock helix secure attachment for twist-on leak free
dispensing. Smooth flow tapered tips are suitable for
applying viscous pastes, glues, silicones and gels and many
other fluids. This version is black opaque to block any UV light
from affecting UV cure and light sensitive adhesives. |
|
 |
|
|
High quality, smooth
flow tapered dispensing tips for the controlled application of
pastes, silicones, RTVs, sealants, epoxies, grease and many other
medium to high viscosity fluids. Double helix luer locking thread
for twist-on attachment. Black opaque material with UV filter block.
Safe for high pressure use. This version is
a high density polyethylene material.
This tip features a
smooth flowing taper design that allows for very high viscosity
pastes and compounds to be dispensed using lower pressures and
faster flow rates. Wide range of other gauge sizes are available.
Use these tips with luer
lock and luer slip syringes, air-powered syringe
barrels,
bottles,
fittings and dispensing
shot
valves.
Silicone-free
ensures sensitive adhesives applied with these parts will not become
contaminated during use.
| |
Smooth flow design reduces material pressure for
pastes
UV block is recommended for UV adhesives
Double Helix safety locking luer hubs provide a safe
twist-on seal
Silicone-Free Certified Materials
Supplied in sealed boxes with batch codes
Safe to use up to 100 psi air pressure on dispenser
machines |
|
|
All
products shipped are in sealed boxes or packs that include label
with batch codes.
We ship these items direct from stock
without any lead times. |
Specifications:
Material: Rigid Polyethylene (HDPE)
Colour: Black (Opaque)
Type: Smooth Flow Taper
Tip Length: 31.75mm (1.25")
Tip ID: 0.25mm (0.010")
Connection Type: Double Helix
Luer Lock
Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Straight
Description: Tip with UV Filter Block
Features: Silicone-Free, Industrial Grade
Pack Sizes: 50
Commodity Tariff Code: 39269097
Delivery: Products shipped by courier on a
tracked and insured service for stock items. Products on a
longer lead time or built to order will be sent as soon as
available. Customers are informed of ship dates should there
be a slight delay.
Typical Applications:-
Deposits of UV cure adhesives, solder paste, deposits of solder flux, grease to
bearings, potting components with epoxy, RTV to edge seams,
silicone shots to bond products, gasket sealant repair,
aircraft maintenance work, braze pastes, general adhesive
applications. |
|
|
Suitable for ... |
 |
General Adhesives
& Glues |
 |
Silicones
& Sealants |
 |
Epoxies,
PUs
& Resins |
 |
Liquid Gel Gaskets |
 |
Greases & Lubricants |
 |
UV Cure
Adhesives |
 |
Solder & Braze Pastes |
|
|
|
Adhesive Dispensing Ltd
provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents,
primers and activators through to thick pastes, sealants,
silicones, gels and epoxies. |
|
|
|
25 Gauge Black Tapered Tip |
 |
|
8001279 |
New Tip Info |
|
Tapered Brochure |
|
Full Catalog |
|
| Material: Polyethylene (HDPE) |
| Colour: Black |
| Tip Length: 31.75mm (1.25 Inch) |
| Tip Outlet ID: 0.25mm (0.010 Inch) |
| Pack Size: 50 |
| Brand: Fisnar |
| Lead Time:
in stock |
|
 pk/50 |
 |
|
|
UV Block Series Tapered Tips |
| Precision tapered dispensing tips for a smooth flow of
material without back pressure. Double helix
luer lock for secure attachment under high
pressure. In gauge sizes from 14 to 27. Supplied
in sealed boxes of 50.
Premium grade dispensing tips that are
silicone-free and industrial safe. UV block
opaque black colour. |
|
|
Colour |
Gauge |
ID
Inch |
ID
mm |
Length Inch/mm |
Lead Time |
Price |
Add |
|
Black
8001278 |
14 |
0.063 |
1.60 |
1.25/32 |
in stock |
pk/50 |
|
|
Black
8001259 |
16 |
0.048 |
1.22 |
1.25/32 |
in stock |
pk/50 |
|
|
Black
8001261 |
18 |
0.033 |
0.84 |
1.25/32 |
in stock |
pk/50 |
|
|
Black
8001262 |
20 |
0.024 |
0.61 |
1.25/32 |
in stock |
pk/50 |
|
|
Black
8001284 |
22 |
0.016 |
0.41 |
1.25/32 |
in stock |
pk/50 |
|
|
Black
8001279 |
25 |
0.010 |
0.25 |
1.25/32 |
in stock |
pk/50 |
|
|
Black
8001275 |
27 |
0.008 |
0.20 |
1.25/32 |
in stock |
pk/50 |
|
|
Black
AD30TTUV |
30 |
0.006 |
0.15 |
1.25/32 |
in stock |
pk/50 |
|
|
|
Product Videos |
|
|
|
Standard Barrel and Piston Kits |
 |
|
Industrial grade barrels conveniently
packaged with wiper pistons in the same box. Natural (Clear), Amber
(Tint) or Black (Opaque) barrels made from high density
polypropylene. Standard PE pistons, flat walled, easy flow and
rubber type. Barrel sizes 3cc, 5cc, 10cc, 30cc, 55cc.
Read more... |
|
|
Big Barrel and Piston Kits |
 |
|
For larger volume dispenser, we stock big barrels in
sizes 100cc, 200cc, 300cc, 400cc and 500cc. The barrel is made from
high density clear polypropylene with PE wiper pistons. Kit includes
an air cap, gasket and 5ft. airline hose with connector to dispenser.
Read more... |
|
|
|
|
|
|
|
|
|
|
|
