310ml Size Cartridge Retainer and Air Cap Assembly
Our precision components provide safe and leak free fluid dispensing from cartridges. This metal retainer system is used with all 10 Ounce size dispensing cartridges. A safe and leak free high pressure reservoir system. Includes cap and airline hose.

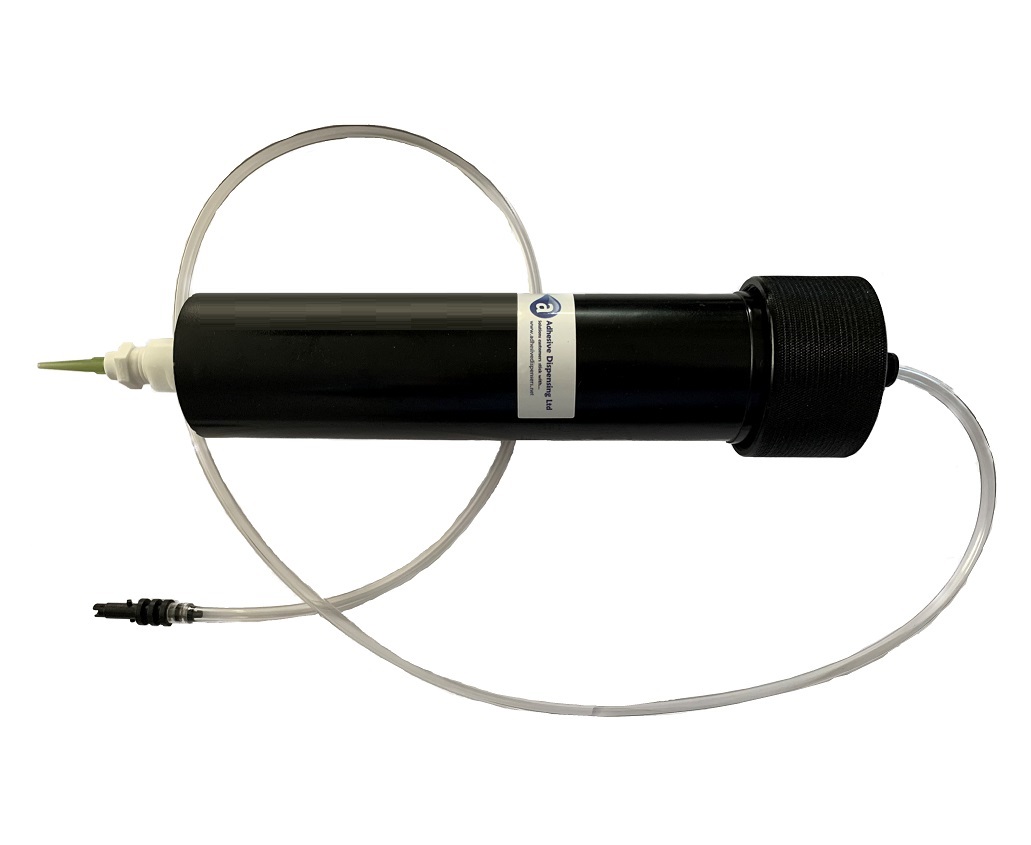

ADL-1211M 310ml 1/10 Gallon Cartridge Retainer

The 310cc/ml (10 ounce) or 1/10 Gallon size metal cartridge retainer body with air cap, 5 ft long airline hose and quick connect fitting for direct attachment to air dispensers.

Accepts all 10oz cartridges as well as with pre-filled silicone, sealant and RTV caulk tubes. Threaded cap secure air tight connection. This item is industrial grade safe up to 100 psi air pressure. Used as a reservoir to feed material to a dispense valve or use with a direct connection to air powered dispenser for application of pastes, gels, silicones and epoxies.

Lightweight and robust. Non slotted metal body - robust build quality. All products shipped are in sealed boxes and include label with batch codes.

Specifications:
Material: Steel (Anodised)
Colour: Black
Capacity: 10 Ounce (310cc or 310ml)
Inner Diameter: 50.85mm (2.00 Inch)
Outer Diameter: 55.49mm (2.18 Inch)
Total Length: 237.10mm (9.33 Inch)
Accepts Cartridges: 205-215mm Length to shoulder
Connection Type: Threaded Air Cap
Maximum Pressure: 100 PSI (6.89 Bar)
Air Flow Pattern: Straight
Description: Cartridge Body Retainer
Features: Industrial Grade
Commodity Code: 90289090
Lead Time: Ships Within 24 Hours

Suitable for ...
Make dots of adhesives General Adhesives & Glues
Make beads of adhesives Flowable Silicones
Potting of components Epoxies & Resins
Sealing of components Threadlocker Adhesives
Dispense lubricants and greases Greases & Lubricants
UV Cure Adhesives
Solder Pastes & Fluxes

Adhesive Dispensing Ltd provide a wide range of equipment options for dispensing almost all assembly fluids - from watery liquids, solvents, primers and activators through to thick pastes, sealants, silicones, gels and epoxies.

Order online securely
More Info Part Code

Description

Price GBP Add
ADL-1211M
Cartridges
Applicator Guns
Full Catalogue
Materials: Steel
Cap Attachment: Threaded
Colour: Black
Maximum Pressure: 100 PSI
Style: Non-Slotted Body
Lead Time: Ships Within 24 Hours
  each



More Info Part Code

Description

Price GBP Add
ADL-1211MS
Cartridges
Applicator Guns
Full Catalogue
Materials: Steel
Cap Attachment: Threaded
Colour: Black
Maximum Pressure: 100 PSI
Style: Slotted Body
Lead Time: Ships Within 24 Hours
  each

Delivery: Products shipped by courier on a tracked and insured service for stock items. Products on a longer lead time or built to order will be sent as soon as available. Customers are informed of ship dates.

Typical Applications:- Deposits of silicone RTV, sealants, epoxy resins, polyurethanes, mastics, gels, compounds, adhesives, lubricants, potting materials and other assembly fluids.

Cartridge Accessories
More Info Part Code

Description

Price GBP Add
TSD931-296
TSD931-296
Cartridges
Applicator Guns
Full Catalogue
Materials: Acetal
Thread: 1/4 Inch NPT
Colour: White
Maximum Pressure: 100 PSI
Mfg: ADL
Lead Time: Ships Within 24 Hours
  each

More Info Part Code

Description

Price GBP Add
TSD931-296SS
TSD931-296SS
Cartridges
Applicator Guns
Full Catalogue
Materials: Stainless Steel
Thread: 1/4 Inch NPT
Colour: Silver
Maximum Pressure: 100 PSI
Mfg: ADL
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
TSD931-7PK
TS110C
Cartridges
Applicator Guns
Full Catalogue
Materials: Polypropylene
Thread: 1/4 Inch NPT
Colour: White
Maximum Pressure: 100 PSI
Length: 26mm
Lead Time: Ships Within 24 Hours
  pk/5

More Info Part Code

Description

Price GBP Add
Cartridge HDPE Adhesive Dispensing Techcon Semco
TS110C
Cartridges
Applicator Guns
Full Catalogue
Materials: Polyethylene HDPE
Thread: 1/4 Inch NPT
Colour: Natural
Maximum Pressure: 100 PSI
Length: 228.3mm
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Cartridge HDPE Adhesive Dispensing Techcon Semco
TS110C-BLACK
Cartridges
Applicator Guns
Full Catalogue
Materials: Polyethylene HDPE
Thread: 1/4 Inch NPT
Colour: Black (Opaque)
Maximum Pressure: 100 PSI
Length: 228.3mm
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Cartridge HDPE Adhesive Dispensing Techcon Semco
TS110C-LD-250
Cartridges
Applicator Guns
Full Catalogue
Materials: Polyethylene LDPE
Thread: 1/4 Inch NPT
Colour: Natural
Maximum Pressure: 100 PSI
Length: 228.3mm
Lead Time: Ships Around 7 Days
  pk/250

More Info Part Code

Description

Price GBP Add
Cartridge HDPE Adhesive Dispensing Techcon Semco
TS110CKIT
Cartridges
Applicator Guns
Full Catalogue
Materials: Polyethylene HDPE/LDPE
Thread: 1/4 Inch NPT
Colour: Natural Cartridge/ Plunger
Maximum Pressure: 100 PSI
Cartridge Length: 228.3mm
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Cartridge HDPE Adhesive Dispensing Techcon Semco
TS110CP-250
Cartridges
Applicator Guns
Full Catalogue
Materials: Polyethylene
Thread: 1/4 Inch NPT
Colour: Natural Cartridge/White Plunger
Maximum Pressure: 100 PSI
Cartridge Length: 228.3mm
Lead Time: Ships Within 24 Hours
  pk/250

More Info Part Code

Description

Price GBP Add
Cartridge HDPE Adhesive Dispensing Techcon Semco
TS110CPW-10
Cartridges
Applicator Guns
Full Catalogue
Materials: Polyethylene
Thread: 1/4 Inch NPT
Colour: Natural Cartridge/Black Plunger
Maximum Pressure: 100 PSI
Cartridge Length: 228.3mm
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Cartridge Plunger Adhesive Dispensing Techcon
TSPW
Cartridges
Applicator Guns
Full Catalogue
Material: Low Density Polyethylene
Plunger Size: 10oz (310cc/310ml)
Colour: Natural
Outer Diameter: 47.0mm (1.85")
Type: Extended Wiper Plunger
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Cartridge Plunger Adhesive Dispensing Techcon
TS2P-BLACK
Cartridges
Applicator Guns
Full Catalogue
Material: Low Density Polyethylene
Plunger Size: 10oz (310cc/310ml)
Colour: Black
Outer Diameter: 47.0mm (1.85")
Type: Black UV Wiper Plunger
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Cartridge End Cap Flange Seal Adhesive Dispensing
TS4C
Cartridges
Applicator Guns
Full Catalogue
Material: Low Density Polyethylene
Colour: Red
Type: Push on Flange Cap Seal
Outer Diameter: 47.0mm (1.85")
For Size: 310ml Only
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
AD3PB
AD3PB
Cartridges
Applicator Guns
Full Catalogue
Material: High Density Polyethylene
Thread: 1/4 Inch NPT
Colour: Blue
Type: Screw on Tip Cap Seal
Length: 21mm
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
TS3P Cartridge Tip Cap Red 1/4" Adhesive Dispensing
TS3P
Cartridges
Applicator Guns
Full Catalogue
Material: Medium Density Polyethylene
Thread: 1/4 Inch NPT
Colour: Red
Type: Screw on Tip Cap Seal
Length: 21mm
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
TS3P Cartridge Tip Cap Red 1/4" Adhesive Dispensing
TS6P-RED
Cartridges
Applicator Guns
Full Catalogue
Material: High Density Polyethylene
Thread: 1/4 Inch NPT
Colour: Red
Type: Screw on Tip Cap Seal
Length: 21mm
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Adhesive Dispensing Nozzle Cartridge Techcon Semco
TS216
Cartridges
Applicator Guns
Full Catalogue
Material: Medium Density Polyethylene
Thread: 1/4 Inch NPT
Length: 63.5mm (2.50 Inch)
Outlet ID: 1.59mm (1/16 Inch)
Maximum Pressure: 100 PSI
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Adhesive Dispensing Nozzle Cartridge Techcon Semco
TS218
Cartridges
Applicator Guns
Full Catalogue
Material: Medium Density Polyethylene
Thread: 1/4 Inch NPT
Length: 63.5mm (2.50 Inch)
Outlet ID: 3.20mm (1/8 Inch)
Maximum Pressure: 100 PSI
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Adhesive Dispensing Nozzle Cartridge Techcon Semco
TS218-LD
Cartridges
Applicator Guns
Full Catalogue
Material: Low Density Polyethylene
Thread: 1/4 Inch NPT
Length: 63.5mm (2.50 Inch)
Outlet ID: 3.20mm (1/8 Inch)
Maximum Pressure: 100 PSI
Lead Time: Ships Within 24 Hours
  pk/50

More Info Part Code

Description

Price GBP Add
Adhesive Dispensing Nozzle Cartridge Techcon Semco
TS416
Cartridges
Applicator Guns
Full Catalogue
Material: Medium Density Polyethylene
Thread: 1/4 Inch NPT
Length: 101.6mm (4.0 Inch)
Outlet ID: 1.59mm (1/16 Inch)
Maximum Pressure: 100 PSI
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Adhesive Dispensing Nozzle Cartridge Techcon Semco
TS416-LD
Cartridges
Applicator Guns
Full Catalogue
Material: Low Density Polyethylene
Thread: 1/4 Inch NPT
Length: 101.6mm (4.0 Inch)
Outlet ID: 1.59mm (1/16 Inch)
Maximum Pressure: 100 PSI
Lead Time: Ships Within 24 Hours
  pk/50

More Info Part Code

Description

Price GBP Add
Adhesive Dispensing Nozzle Cartridge Techcon Semco
TS418
Cartridges
Applicator Guns
Full Catalogue
Material: Medium Density Polyethylene
Thread: 1/4 Inch NPT
Length: 101.6mm (4.0 Inch)
Outlet ID: 3.20mm (1/8 Inch)
Maximum Pressure: 100 PSI
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Adhesive Dispensing Nozzle Cartridge Techcon Semco
TS432
Cartridges
Applicator Guns
Full Catalogue
Material: Medium Density Polyethylene
Thread: 1/4 Inch NPT
Length: 101.6mm (4.0 Inch)
Outlet ID: 0.80mm (1/32 Inch)
Maximum Pressure: 100 PSI
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Adhesive Dispensing Nozzle Cartridge Techcon Semco
TS432-LD
Cartridges
Applicator Guns
Full Catalogue
Material: Medium Density Polyethylene
Thread: 1/4 Inch NPT
Length: 101.6mm (4.0 Inch)
Outlet ID: 0.80mm (1/32 Inch)
Maximum Pressure: 100 PSI
Lead Time: Ships Within 24 Hours
  pk/50

More Info Part Code

Description

Price GBP Add
Adhesive Dispensing Nozzle Cartridge Techcon Semco
TS490
Cartridges
Applicator Guns
Full Catalogue
Material: Medium Density Polyethylene
Thread: 1/4 Inch NPT
Length: 101.6mm (4.0 Inch)
Outlet ID: 2.38mm (3/32 Inch)
Maximum Pressure: 100 PSI
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Nozzle Cartridge Ribbon Spreader Adhesive Dispensing
TS1050
Cartridges
Applicator Guns
Full Catalogue
Material: Medium Density Polyethylene
Thread: 1/4 Inch NPT
Length: 101.6mm (4.0 Inch)
Outlet Width: 12.70mm (0.50 Inch)
Outlet Height: 1.52mm (0.06 Inch)
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Nozzle Cartridge Ribbon Spreader Adhesive Dispensing
TS1075
Cartridges
Applicator Guns
Full Catalogue
Material: Medium Density Polyethylene
Thread: 1/4 Inch NPT
Length: 114.3mm (4.5 Inch)
Outlet Width: 19.05mm (0.75 Inch)
Outlet Height: 3.30mm (0.13 Inch)
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Nozzle Cartridge Ribbon Spreader Adhesive Dispensing
TS1100
Cartridges
Applicator Guns
Full Catalogue
Material: Medium Density Polyethylene
Thread: 1/4 Inch NPT
Length: 114.3mm (4.5 Inch)
Outlet Width: 25.4mm (1.0 Inch)
Outlet Height: 3.30mm (0.13 Inch)
Lead Time: Ships Within 24 Hours
  pk/10

More Info Part Code

Description

Price GBP Add
Nozzle Cartridge Ribbon Spreader Adhesive Dispensing
TS1175
Cartridges
Applicator Guns
Full Catalogue
Material: Medium Density Polyethylene
Thread: 1/4 Inch NPT
Length: 114.3mm (4.5 Inch)
Outlet Width: 44.45mm (1.75 Inch)
Outlet Height: 3.30mm (0.13 Inch)
Lead Time: Ships Within 24 Hours
  pk/10

Cartridge Pages



Copyright  2008 Adhesive Dispensing Ltd. All rights reserved. Syringe barrels Dispensing tips
Cartridges & Plungers Dispensing Nozzles Tip Caps Consumable Syringes Dispensing Tips


  COMPANY INFORMATION SUPPORT CUSTOMER SERVICE
  About Us Solutions Carriage
  Shipping & Returns FAQ's Terms & Conditions
  Privacy Site Map Help
  Contact Us Assist Accounts


Air-Powered Dispensers * Industrial Dispensing Components * Precision Dispense Valve Systems * Bench Robots

Adhesives * Packaged Components * Techkits * RatioPacks * Hingepacks * Syringe Barrels * Cartridges * Nozzles




Prices are in GBP pounds.  Vat is charged on all UK orders. We provide VAT invoices with all transactions. Vat is not charged on any orders placed with us that ship outside the UK and EU. No VAT is charged for any orders placed for shipment to the EU only if a valid company VAT number is provided to us at time of order or prior to shipping.  Products are covered by a 12-month warranty against all faults and malfunction.  All orders placed online are encrypted for total safety and security.  Additional encryption now protects all of the web pages on this site. Please read our privacy agreement for details of how we conform to GDRP.  We can also process any phone or fax payments by credit and debit cards.  Please contact our accounts department if you would like to apply for a 30 day credit account with us.

Disclaimer: While reasonable efforts have been made to ensure all information on this website is accurate, Adhesive Dispensing Ltd. do not assume responsibility for any errors or omissions. All specifications, illustrations, data and prices are subject to change without notice.

Copyright 2020 Adhesive Dispensing Ltd. All rights reserved.



  Literature
  Full Catalogue PDF
  Full Catalogue
  Syringe Barrels
  Cartridges & Nozzles
  Dispense Tips
  Dispense Guns
  Dual Air Guns
  Dual Cartridge & Mixers

  Information
  Tip Selector Guide
  Safety Information
  Viscosities Chart
  ISO9001:2015 Certificate
  ROHS & REACH



  Contact Us
  Equipment Recommendations
  Request a Quote
  Technical Support
  Applicator Assist

  Industrial Grade Safe


All products are safe for use for industrial applications. The components are leak-free and supplied in sealed packaging to prevent contamination.



  Silicone Free Products


Products including air powered barrels, cartridges, nozzles, luer tips, fluid lines, tubing, caps and seals - are certified silicone free to prevent contamination of sensitive adhesives dispensed from them.



  Using these products
  Dispensing products are designed to work with all air powered dispensers.

  Industrial Grade Safe
  All products are safe for use up to 100 psi pressure. Theyt are precision manufactured and machined for industrial fluid applications.

  Silicone-Free Components
  Components are certified silicone-free components to ensure they do not contaminate any fluids or sensitive adhesives that are dispensed from them and in contact with them.
