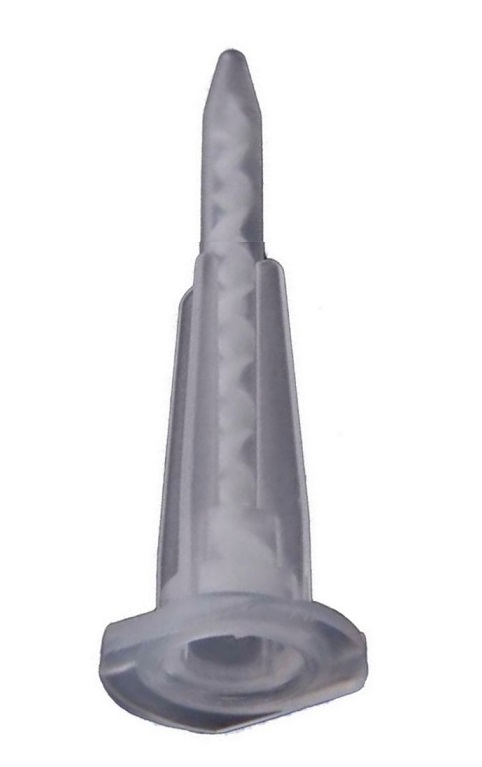

Bayonet inlet, helical static mixer nozzle for 50ml, 75ml and
100ml A-System dual component cartridges. Stepped end outlet providing
controlled flow or can be cut back to increase flow rates. These
mixer nozzles are suitable for 1:1 and 2:1 ratio two-component
materials and A-System bayonet type cartridges.
These
mixers have white elements and are constructed of high grade
polypropylene. Dispensing nozzles are available in many different styles
and with stepped,open or luer ends. Mixer nozzles are industrial grade
safe to 100 psi pressure and are certified silicone-free
materials.
Applicator dispenser guns are available for all sized cartridges either in
manual, pneumatic and now battery versions. Please see product
options for compatible parts and accessories below on this page. All
dispensing products shipped are in sealed boxes or packs
that
include part label with batch codes for traceability.
Adhesive Dispensing Ltd
provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents,
primers and activators through to thick pastes, sealants,
silicones, gels and epoxies. |
|
|
| Specifications |
Part Code:
MA3.0-07S
Material:
Polypropylene
Colour: Natural Outer, White
Elements
Housing Type: Helical Cylindrical
Inner Element Diameter: 3mm
Total Nozzle Length: 34mm
No. Of Mix Elements: 7
Retained Volume: 0.24ml
Cartridge Attachment: Bayonet
Outlet Type: Tapered End
For: 1:1/ 2:1 Dual Cartridges Only
Details: Industrial Grade, Silicone
Free
Commodity Code: 39269097
Origin: UK
Brand: Sulzer Mixpac
MPN: MAH
03-07S (102361) |
| |
Delivery: Products
shipped by courier on a tracked and
insured service for stock items. Products on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
ship dates.
Typical Applications:-
Controlled deposits of
epoxy resins, two-part silicones, PU Polyurethanes, silicones and many other
two-component
and mixed materials. |
|
|
|
|
|
|
|
|
A-System 3mm ID White Static Mixer Nozzle |
 |
|
The A-system
nozzles use a bayonet twist-on/
twist-off attachment to the cartridge.
Available in a wide range of diameters
and lengths. Helical round version or
quadro square body with green elements.
Nozzles outer is made of natural high
density polypropylene. S outlet is for a
stepped design, T outlet is tapered and
L is for luer.
Click
the links below for more product details and
pack size options. Commodity tariff code
39269097.
Learn more... |
|
|
|
|
Pack |
Mix Ratio |
Part Code |
Stock Levels |
Price GBP |
Add |
|
50 |
1:1/ 2:1 |
MA3.0-07S |
in stock |
pk/50 |
 |
|
100 |
1:1/ 2:1 |
MA3.0-07S |
in stock |
pk/100 |
|
|
250 |
1:1/ 2:1 |
MA3.0-07S |
in stock |
pk/250 |
|
|
500 |
1:1/ 2:1 |
MA3.0-07S |
in stock |
pk/500 |
|
|
1000 |
1:1/ 2:1 |
MA3.0-07S |
in stock |
pk/1000 |
|
|
|
1:1/ 2:1 Ratio A-System Cartridge and Piston Set |
 |
|
The A-system
cartridges use a bayonet twist-on/ twist-off
nozzle attachment. Available with either
air-vented wiper pistons or lip-seal pistons
with a rubber O-ring outer. Cartridge body is
made of white high density polypropylene.
Options available for mix ratio and piston type.
Easy to fill with epoxy resin, silicone,
polyurethane, potting compound or doming
resin, etc. Every cartridge set includes
a dust tip cap to seal when filling or
for storage once filled. Commodity tariff code
39269097. |
|
|
|
Size |
Mix Ratio |
Piston Type |
Part Code |
Stock
Levels |
Price GBP |
Add |
|
50ml |
1:1 |
Air Vented |
451000-01 |
in stock |
pk/50 |
|
|
50ml |
1:1 |
Lip-Seal |
451000-02 |
in stock |
pk/50 |
|
|
50ml |
2:1 |
Air Vented |
452013-01 |
in stock |
pk/50 |
|
|
50ml |
2:1 |
Lip-Seal |
452013-02 |
in stock |
pk/50 |
|
|
75ml |
1:1 |
Air Vented |
475100-01 |
in stock |
pk/50 |
|
|
75ml |
1:1 |
Lip-Seal |
475100-02 |
in stock |
pk/50 |
|
|
100ml |
1:1 |
Air Vented |
100011 |
in stock |
pk/50 |
|
|
|
A-System Bayonet 1:1/2:1 Ratio Static Mixer Nozzles |
 |
|
The A-system
nozzles use a bayonet twist-on/
twist-off attachment to the cartridge.
Available in a wide range of diameters
and lengths. Helical round version or
quadro square body with green elements.
Nozzles outer is made of natural high
density polypropylene. S outlet is for a
stepped design, T outlet is tapered and
L is for luer.
Click
the links below for more product details and
pack size options. Commodity tariff code
39269097.
Learn more... |
|
|
|
Dia. |
Length |
Element |
Ratio |
Colour |
Code |
Stock |
Price GBP |
Add |
|
3.0mm |
34mm |
7 |
1:1/2:1 |
White |
MA3.0-07S |
in stock |
pk/100 |
|
|
3.0mm |
51mm |
13 |
1:1/2:1 |
White |
MA3.0-13S |
in stock |
pk/100 |
|
|
3.0mm |
63mm |
17 |
1:1/2:1 |
White |
MA3.0-17S |
in stock |
pk/100 |
|
|
4.0mm |
66mm |
13 |
1:1/2:1 |
White |
MA4.0-13S |
in stock |
pk/100 |
|
|
4.0mm |
82mm |
17 |
1:1/2:1 |
White |
MA4.0-17S |
in stock |
pk/100 |
|
|
5.4mm |
56mm |
7 |
1:1/2:1 |
White |
MA5.4-07S |
in stock |
pk/100 |
|
|
5.4mm |
85mm |
13 |
1:1/2:1 |
White |
MA5.4-13S |
in stock |
pk/100 |
|
|
5.4mm |
104mm |
17 |
1:1/2:1 |
White |
MA5.4-17S |
in stock |
pk/100 |
|
|
5.4mm |
124mm |
21 |
1:1/2:1 |
White |
MA5.4-21S |
in stock |
pk/100 |
|
|
6.3mm |
97mm |
12 |
1:1/2:1 |
White |
MA6.3-12S |
in stock |
pk/100 |
|
|
6.3mm |
128mm |
17 |
1:1/2:1 |
White |
MA6.3-17S |
in stock |
pk/100 |
|
|
6.3mm |
153mm |
21 |
1:1/2:1 |
White |
MA6.3-21S |
in stock |
pk/100 |
|
|
6.3mm |
153mm |
21 |
1:1/2:1 |
White |
MA6.3-21L |
in stock |
pk/100 |
|
|
5.3mm |
83mm |
16 |
1:1/2:1 |
Green |
MAQ05-16L |
in stock |
pk/100 |
|
|
5.3mm |
115mm |
24 |
1:1/2:1 |
Green |
MAQ05-24L |
in stock |
pk/100 |
|
|
|
1:1/ 2:1 Ratio Manual Dual Cartridge Dispenser Guns |
 |
|
We stock a wide range
of manual dispenser guns for use with the
A-system dual cartridges on every mix ratio.
Below options are for the different ratio
dispensers in 3 cartridge sizes.
These
are lightweight industry standard applicators
that are easy to load and simple to use. Ideal
for field work, repair work or low volume
assembly applications. Click
the links below for more product details and options.
Commodity tariff code 90289090. |
|
|
|
Size |
Mix Ratio |
Gun Type |
Part Code |
Stock Levels |
Price GBP |
Add |
|
50ml |
1:1/2:1 |
Manual |
ABM-25M1 |
in stock |
each |
|
|
50ml |
1:1/2:1 |
Manual |
ABM-25MS |
in stock |
each |
|
|
50ml |
2:1 |
Manual |
ABM-25M2 |
in stock |
each |
|
|
75ml |
1:1 |
Manual |
ABM-75M1 |
in stock |
each |
|
|
100ml |
1:1 |
Manual |
ABM-100M1 |
in stock |
each |
|
|
|
1:1/ 2:1 Ratio Battery Rechargeable Dual Cartridge Dispenser Guns |
 |
|
We stock a wide range
of battery rechargeable dispenser guns for use with the
A-system dual cartridges on every mix ratio.
Below options are for different ratio
dispensers to suit the 50ml dual
component cartridges.
These are
lightweight industry standard
applicators that are easy to load and
simple to use. Ideal for field work,
repair work or higher volume assembly
applications. Click
the links below for more product details and options.
Commodity tariff code 90289090. |
|
|
|
Size |
Mix Ratio |
Gun Type |
Part Code |
Stock Levels |
Price GBP |
Add |
|
50ml |
1:1/2:1 |
Battery |
ADCBE-50 |
in stock |
each |
|
|
|
1:1/ 2:1 Ratio Pneumatic Dual Cartridge Dispenser Guns |
 |
|
We stock a wide range
of pneumatic dispenser guns for use with the
A-system dual cartridges on every mix ratio.
Below options are for the different
ratio dispensers to suit the 50ml dual
component cartridges.
These are
powerful industry standard applicators
that are easy to load and simple to use.
Ideal for assembly work, repair work or
higher volume dispensing applications. Click
the links below for more product details and options.
Commodity tariff code 90289090. |
|
|
|
Size |
Mix Ratio |
Gun Type |
Part Code |
Stock Levels |
Price GBP |
Add |
|
50ml |
1:1 |
Pneumatic |
ADCBA-25D |
in stock |
each |
|
|
50ml |
1:1/2:1 |
Pneumatic |
EDS408M |
in stock |
each |
|
|
|
1:1/ 2:1 Raatio Pneumatic Cartridge Retainers for use with
Dispensers |
 |
|
Use these rod-driven
pneumatic 50ml dual cartridge systems with any
pneumatic dispenser that has a vacuum suckback
feature. Once connected to the dispenser, this
system allows the user to make precise repeat
dots of epoxy or controlled beads.
Options for the 50ml different ratio dual
cartridges. Lightweight
and easy to use. The vacuum on the dispenser
pulls the rods back when the cartridge tube is
empty. Commodity tariff code 90289090. |
|
|
|
Size |
Mix Ratio |
Type |
Part Code |
Stock Levels |
Price GBP |
Add |
|
50ml |
1:1 |
Pneumatic |
ADV-50-11 |
in stock |
each |
|
|
50ml |
2:1 |
Pneumatic |
ADV-50-21 |
in stock |
each |
|
|
|
Delivery: Products
shipped by courier on a tracked and
insured service for stock items. Products on a
longer
lead time or built to order will be sent as soon as available. Customers are informed of
ship dates.
Typical Applications:- Deposits
of epoxy resins, potting compounds, silicones, doming resins and
polyurethanes supplied in 50ml dual cartridges. |
|
|
