Needle Tip Evaluation Pack Ref.
SA7529 |
|
Our
precision components provide safe and leak free fluid
dispensing from syringe barrels, valves and cartridges.
Precision tips are suitable for use with most adhesives,
solvents, pastes, gels, silicones and other assembly fluids. |
|
|
 |
|

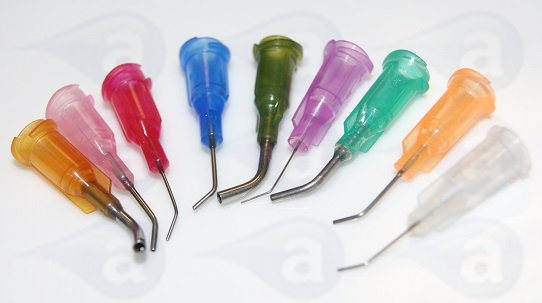

A multi purpose
evaluation pack of 45 degree bend dispensing tips. 9 sizes of
assorted colour coded 0.50" long precision bend tips. Supplied in a
sealed box of 18 assorted tips with 2 of each size. A useful low
cost test kit of tips.
AD series angled series tips are safe
for use to 100 psi and suitable for use with most adhesives, pastes,
gels, silicones and other assembly fluids. All tips are certified
silicone-free and chloride-free. They feature double helix luer lock
colour coded hubs for safe attachment to syringes and fittings.
These precision needle tips will fit all luer lock and luer slip
syringe barrels.
All of the tips in this kit are
available in boxes of 50 or in bulk packs of 500 or 1000 direct from
stock. Supplied in a sealed box with label and
batch codes. Tubes are burr-free and consistent from tip to tip.
We offer the widest range of dispensing tips held in stock.
Adhesive Dispensing Ltd
provide a wide range of equipment options for dispensing
almost all assembly fluids - from watery liquids, solvents,
primers and activators through to thick pastes, sealants,
silicones, gels and epoxies.
|
|
|
GAUGE SIZE |
HUB COLOUR |
INNER DIAMETER |
QTY |
|
14
Gauge |
Olive |
0.063" - 1.55 mm |
2 |
|
15
Gauge |
Amber |
0.054" - 1.37 mm |
2 |
|
18
Gauge |
Green |
0.033" - 0.84 mm |
2 |
|
20
Gauge |
Pink |
0.024" - 0.61 mm |
2 |
|
21
Gauge |
Purple |
0.020" - 0.51 mm |
2 |
|
22
Gauge |
Blue |
0.016" - 0.40 mm |
2 |
|
25
Gauge |
Red |
0.010" - 0.25 mm |
2 |
|
27
Gauge |
Clear |
0.008" - 0.20 mm |
2 |
|
30
Gauge |
Lavender |
0.006" - 0.15 mm |
2 |
|
|
|
Order online securely |
|
Small pack sample kit
containing 18 of the blunt end 0.5" long tube 45 bend precision tips. Contains a
selection of each size tip from 14 gauge to 30 gauge. Colour coded tips for
liquids, adhesives, glues, pastes
and gels.
|
|
More Info |
Part
Code |
Description |
Lead Time |
Price GBP |
Add |
 |
SA7529
Boxed Tip Kit in Seal Pack
18 Tips |
Precision Blunt Bend Tips
0.5"
14 to 30 Gauge 45 Degree |
Ships Within 24 Hours |
each |
 |
|
|
VAT:
Charges for VAT only applied where they are applicable.
VAT is not applied to orders that are shipped outside of
the UK and EU. This website is setup to for EU customers
to order products as Delivered Duty Paid (DDP). All
carriage, duty, VAT and fees are covered. For EU
customers who wish to handle your own import fees,
please order via
www.adhesivedispensing.co.uk
Delivery: Products shipped by
courier on a tracked and insured service for stock
items. Products on a longer lead time or built to order
will be sent as soon as available. Customers are
informed of ship dates. Once shipped, tracking codes are
emailed. Most shipments are by DHL courier.
Typical Applications:-
Deposits of liquids, solvents, primers, activators,
adhesives, glues, epoxies, gels, silicones, sealants,
inks, paints, lubricants, anaerobics, threadlockers,
cyanoacrylates, UV cure, polyurethanes, solder pastes,
fluxes, etc. |
|
| |
Specifications:
Materials: Polypropylene/ Stainless Steel
Hub Colours:
Assorted
Tip Tube Length: 0.50" (12.70mm)
Tip Tube
ID: 1.55mm to 0.15mm
Connection Type: Double Helix Luer Lock
Maximum Pressure: 100 PSI (6.89 Bar)
Flow Pattern: Straight
Description: Blunt End Tips
Features: Silicone-Free, Industrial Grade
Pack Size: 26
MPN: SA7523
Commodity Code:
90289097
Brand: Adhesive Dispensing Ltd
Lead
Time: Ships from stock |
|
|
|
|
Suitable for ... |
 |
Solder Pastes |
 |
RTV Silicones |
 |
UV Cure Adhesives |
 |
Liquid Glues |
 |
Doming Resins |
 |
2-part adhesives |
|
|
|
|
AD Series Luer Lock Precision Dispensing Tips |
 |
|
Luer lock dispensing tips in gauge sizes from
12 to
34. Precision blunt end tube tips in lengths of 1/4", 1/2", 1", 1.5"
and 2".
Colour coded hubs to stainless steel tubes. Suitable for dispensing
most liquids and pastes. Conveniently packaged in sealed boxes of 50 or bulk value packs, all
direct from stock. Read more... |
|
|
|
Luer Lock Precision Dispensing Tips |
 |
|
Luer lock dispensing tips in gauge sizes from 8 to
34. Precision tube tips, smooth flow tapered, TLC crimped tips,
aluminium hub, angled tube, brush tips and flexible polypro tube.
Conveniently packaged in sealed boxes of 50 or bulk value packs, all
direct from stock. Read more... |
|
|
|
|
Standard Barrel and Piston Kits |
 |
|
Industrial grade barrels conveniently
packaged with wiper pistons in the same box. Natural (Clear), Amber
(Tint) or Black (Opaque) barrels made from high density
polypropylene. Standard PE pistons, flat walled, easy flow and
rubber type. Barrel sizes 3cc, 5cc, 10cc, 30cc, 55cc.
Read more... |
|
|
|
Big Barrel and Piston Kits |
 |
|
For larger volume dispenser, we stock big barrels in
sizes 100cc, 200cc, 300cc, 400cc and 500cc. The barrel is made from
high density clear polypropylene with PE wiper pistons. Kit includes
an air cap, gasket and 5ft. airline hose with connector to dispenser.
Read more... |
|
|
|
Timed Shot Bench Dispensers |
 |
|
We stock a wide range of pneumatic timed shot dispensers for use
with syringe barrels and cartridges. Set the air pressure, set the
timer and use the system to make repeat shots of epoxy or switch off
the timer for making controller beads or potting. Use the vacuum
suck-back to avoid drips.
Read more... |
|
|
|
|
|
|
|
|
|
|
|
