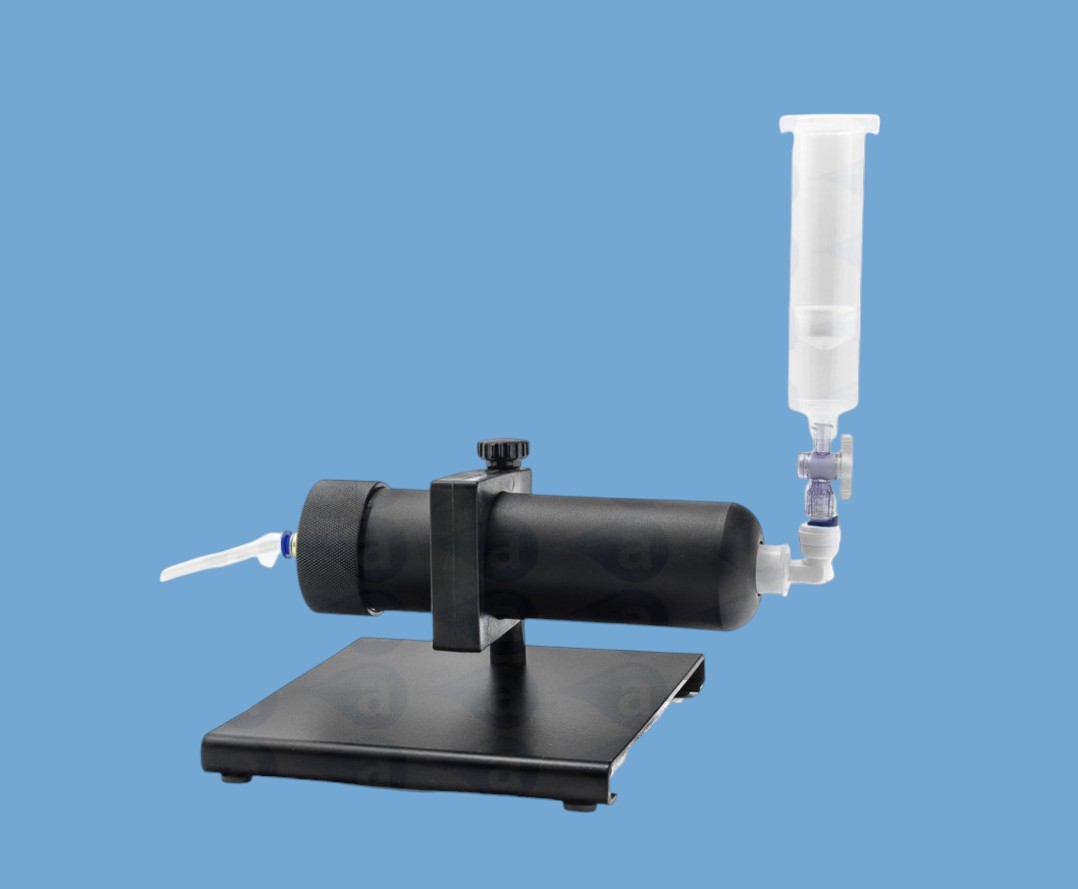

6 Ounce Cartridge to Syringe Filling System |
|
High performance syringe barrels filling stations for the
controlled transfer of materials from cartridges to
syringes. Pneumatic control to bottom fill syringes. |
|
 |
|
|
A syringe filling system from 6oz (177ml)
Techcon, Semco PPG or Nordson EFD cartridges to fill all size luer syringe barrels. Material is transferred under
pressure from cartridge nozzle end to syringe tip end. This eliminates
air entrapment and provides for a simple filling station.
System
includes a retainer, cap, base stand, rod, 6oz cartridges
with plungers, threaded syringe adapter fittings, selection of syringe
barrels, wiper pistons and cap seals. Ideal for use with sealants,
silicones, RTVs, mastics, grease, pastes and other liquids.
Also
available in larger size cartridges for bigger volume syringe filling.
Use these systems with a 0-100 psi dispenser to provide a controlled air
pulse for consistent volume filling of syringe barrels each time or with
a regulated air supply. All products shipped are in sealed boxes or
packs that include printed label with batch codes.
|
|
Specification
Materials: Polyethylene/
Steel/ Nylon
Capacity: 6.0oz (177 cc/ml)
Weight: 1 kg
Maximum Pressure: 100 PSI (6.89 Bar)
Warranty: 12 Months
Description: Syringe Filling Station
Features:
Silicone-Free, Industrial Grade
Commodity Code: 90289090
Brand: Adhesive Dispensing Ltd
Origin: GB |
|
|
